Specifications
| Parameter | Description |
|---|---|

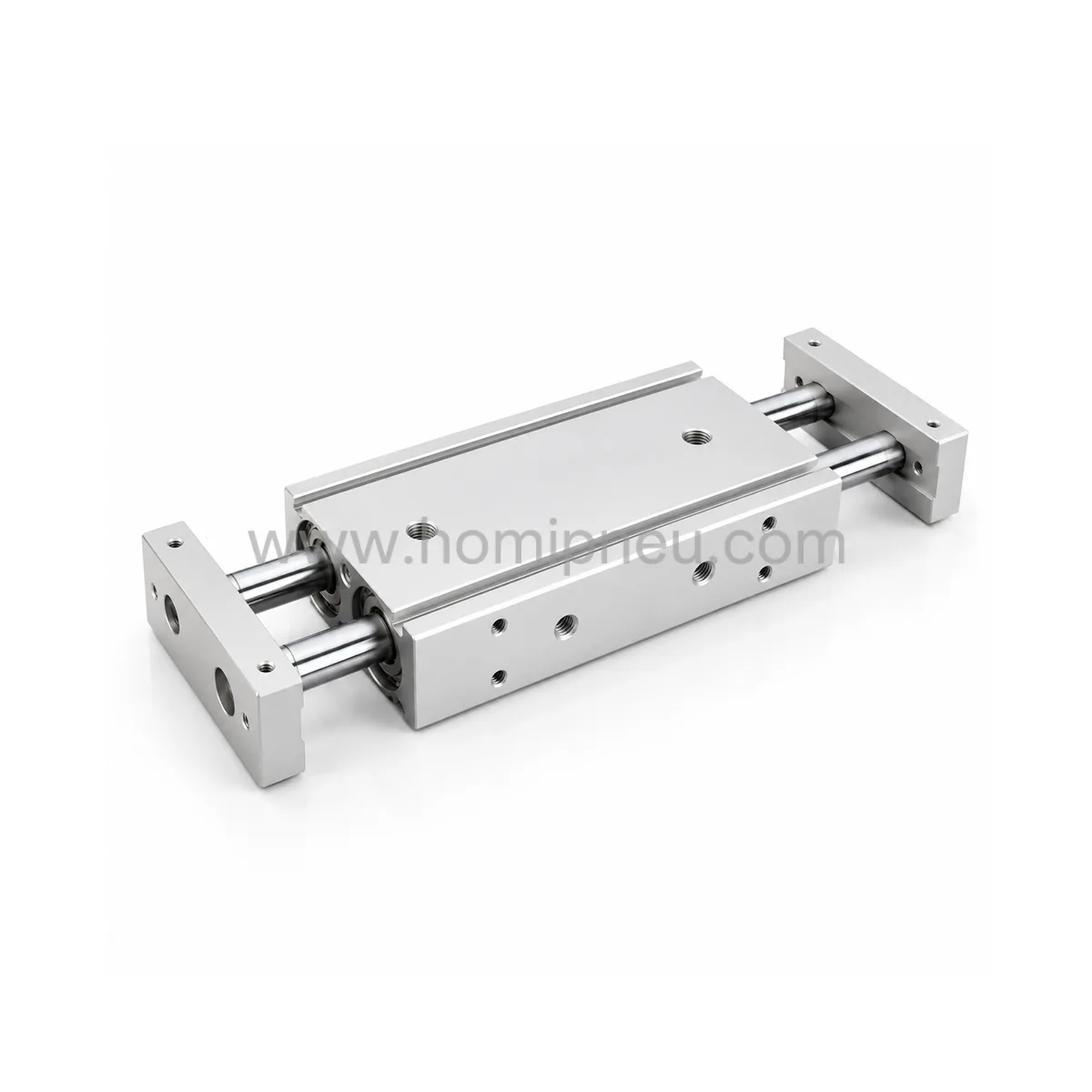

| Product Name | Dual Rod Guided Pneumatic Cylinder |
| Series | CXSW Series |
| Cylinder Type | Double Rod Guided Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Slide Bearing / Ball Bushing Guide |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Non-Rotating Accuracy | ±0.1° |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CXSW Series |
| Applications | Pick-and-Place / Transfer / Positioning Systems |

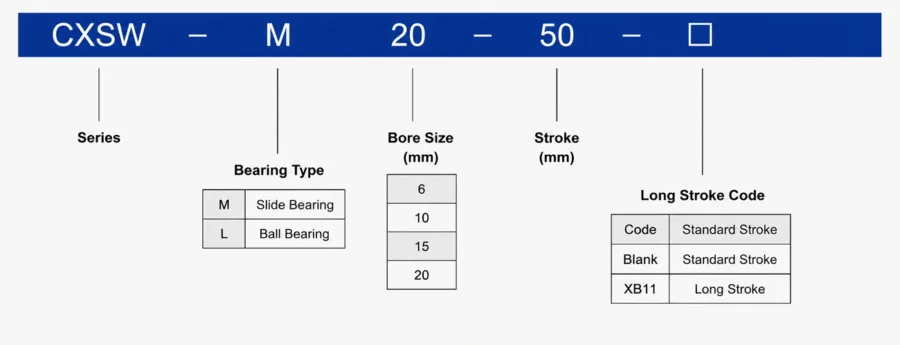

How to order
Product Features
Dual Rod Guided Structure
The CXSW Series adopts a dual piston rod structure that improves anti-rotation accuracy and side load resistance during operation.
High Rigidity Linear Motion
Designed for stable guided movement in positioning, transfer, and pick-and-place automation applications.
Compact Integrated Design
The compact body combines pneumatic actuation and guide functionality to help reduce installation space.
Precision Non-Rotating Performance
The guide structure provides high non-rotating accuracy suitable for precision automation systems.
Slide Bearing and Ball Bushing Options
Available with slide bearing or ball bushing guide configurations depending on load and motion requirements.
Suitable Replacement for SMC CXSW Series
Designed for guided pneumatic motion applications requiring replacement for SMC CXSW Series models.
Reliable Industrial Automation Operation
Suitable for repeated pushing, positioning, gripping assistance, and transfer movement in automated production environments.
Applications
Pick-and-Place Systems
Used for stable workpiece transfer and positioning in automation production lines.
Assembly Automation
Suitable for linear positioning and movement control in assembly machinery.
Packaging Equipment
Applied in transfer, sorting, and feeding stations requiring guided motion.
Robotic Automation Systems
Used in automation equipment requiring high rigidity linear guidance and compact installation.
Fixture and Material Handling Systems
Suitable for guided pushing, loading, unloading, and transfer applications.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- Dual rod structure for improved rigidity and stability
- Precision non-rotating linear motion performance
- Compact body for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CXSW Series interchangeable with SMC CXSW Series?
Yes, the CXSW dual rod guided pneumatic cylinder is designed to be interchangeable with SMC CXSW Series in many industrial automation applications.
What is the CXSW cylinder used for?
It is commonly used for pick-and-place systems, positioning, transfer equipment, assembly automation, and guided linear motion applications.
What type of guide structure does the CXSW Series use?
The CXSW Series supports slide bearing and ball bushing guide structures depending on application requirements.
Why does the CXSW Series use dual piston rods?
The dual rod structure improves anti-rotation accuracy, side load resistance, and motion stability.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CXSW dual rod guided pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
