Specifications
| Parameter | Description |
|---|---|

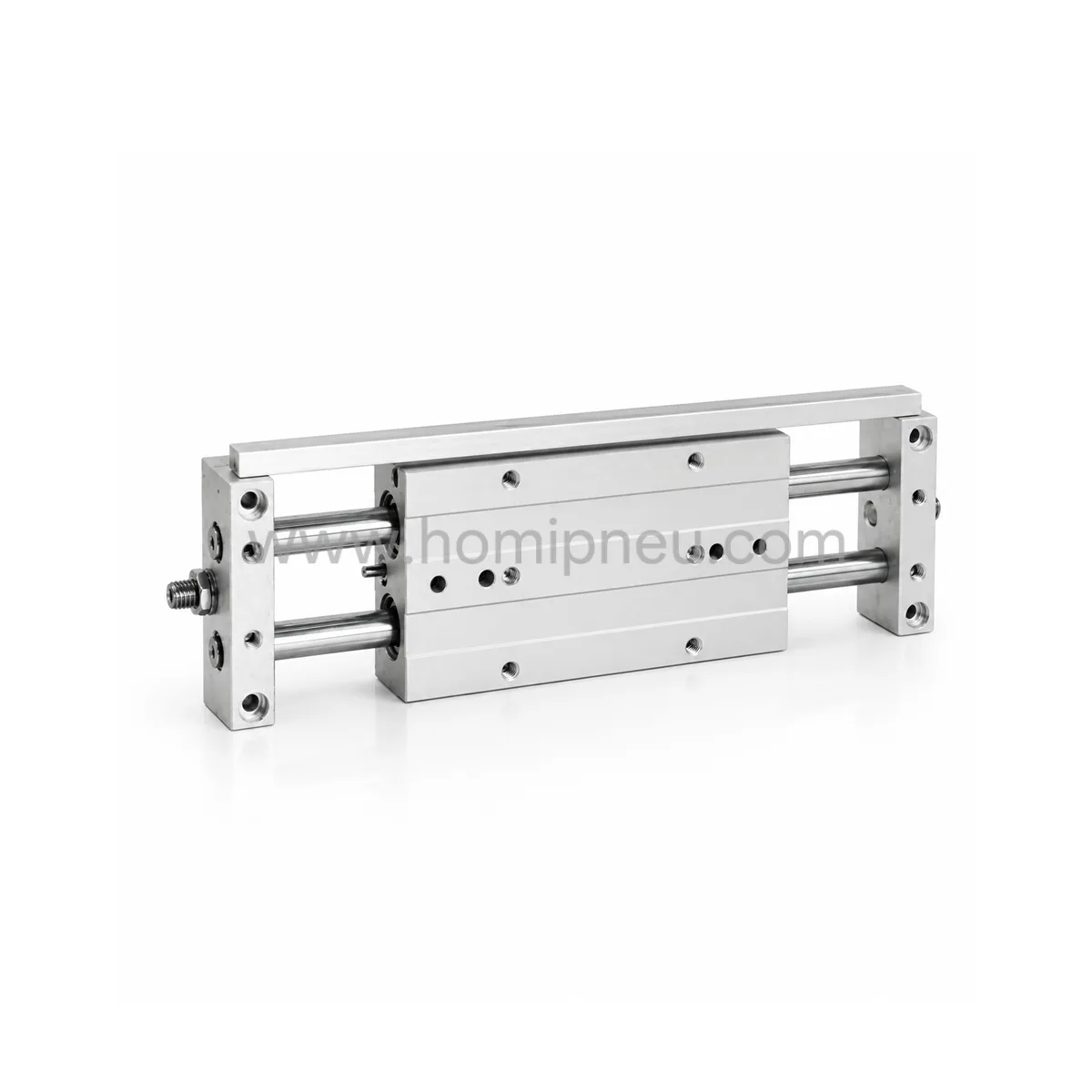

| Product Name | Slide Table Pneumatic Cylinder |
| Series | STWB Series |
| Cylinder Type | Guided Slide Table Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Dual Linear Guide / Double Rod Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.8 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Elastic Buffer + Shock Absorber |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac STWB Series |
| Applications | Positioning / Transfer / Assembly Systems |

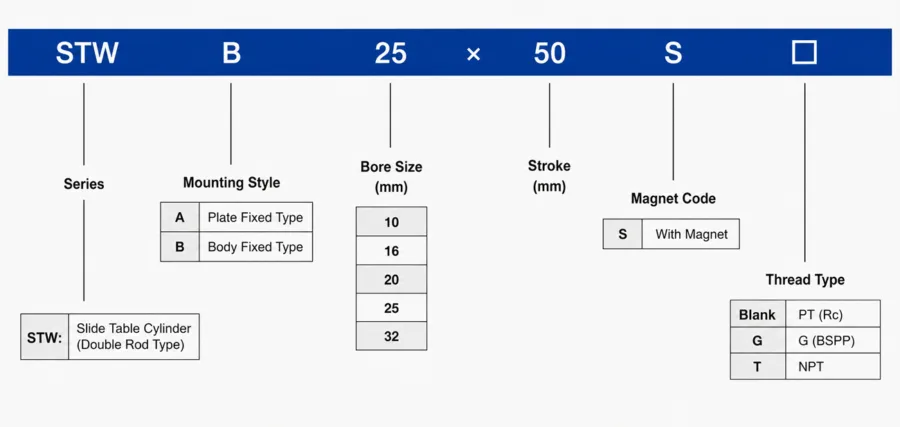

How to order
Product Features
Guided Slide Table Structure
The STWB Series combines pneumatic actuation and linear guide functionality for stable and accurate guided movement.
Dual Rod High Rigidity Design
The double piston rod structure improves bending resistance and motion stability during repeated operation cycles.
Compact Linear Motion System
Designed for positioning, transfer, feeding, and pushing tasks in compact industrial automation equipment.
Integrated Shock Absorber Structure
Built-in buffering helps reduce impact force and improve operational durability during continuous use.
Durable Aluminum Alloy Body
Manufactured with lightweight aluminum alloy construction suitable for long-term industrial automation applications.
Suitable Replacement for Airtac STWB Series
Designed for guided pneumatic motion applications requiring replacement for Airtac STWB Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into transfer systems, fixtures, robotic automation units, and assembly equipment.
Applications
Assembly Automation
Used for positioning, pushing, transfer, and alignment operations in assembly machinery.
Transfer and Feeding Systems
Suitable for guided workpiece movement in automated production lines.
Packaging Equipment
Applied in sorting, positioning, and loading stations requiring compact linear motion.
Fixture and Jig Systems
Used in industrial fixtures requiring stable guided movement and anti-rotation performance.
Robotic Automation Equipment
Suitable for compact linear motion support in robotic and automated handling systems.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- Dual rod structure for improved rigidity and stability
- Compact slide table design for limited installation space
- Integrated buffering for smoother operation
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the STWB Series interchangeable with Airtac STWB Series?
Yes, the STWB slide table pneumatic cylinder is designed to be interchangeable with Airtac STWB Series in many industrial automation applications.
What is the STWB cylinder used for?
It is commonly used for positioning, transfer, feeding, pushing, and guided linear motion applications in automation systems.
What type of guide structure does the STWB Series use?
The STWB Series uses a dual linear guide and double rod structure for stable guided movement.
Does the STWB Series include shock absorption?
Yes, integrated elastic buffering and shock absorber structures help reduce impact during operation.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for STWB slide table pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
