Specifications
| Parameter | Description |
|---|---|

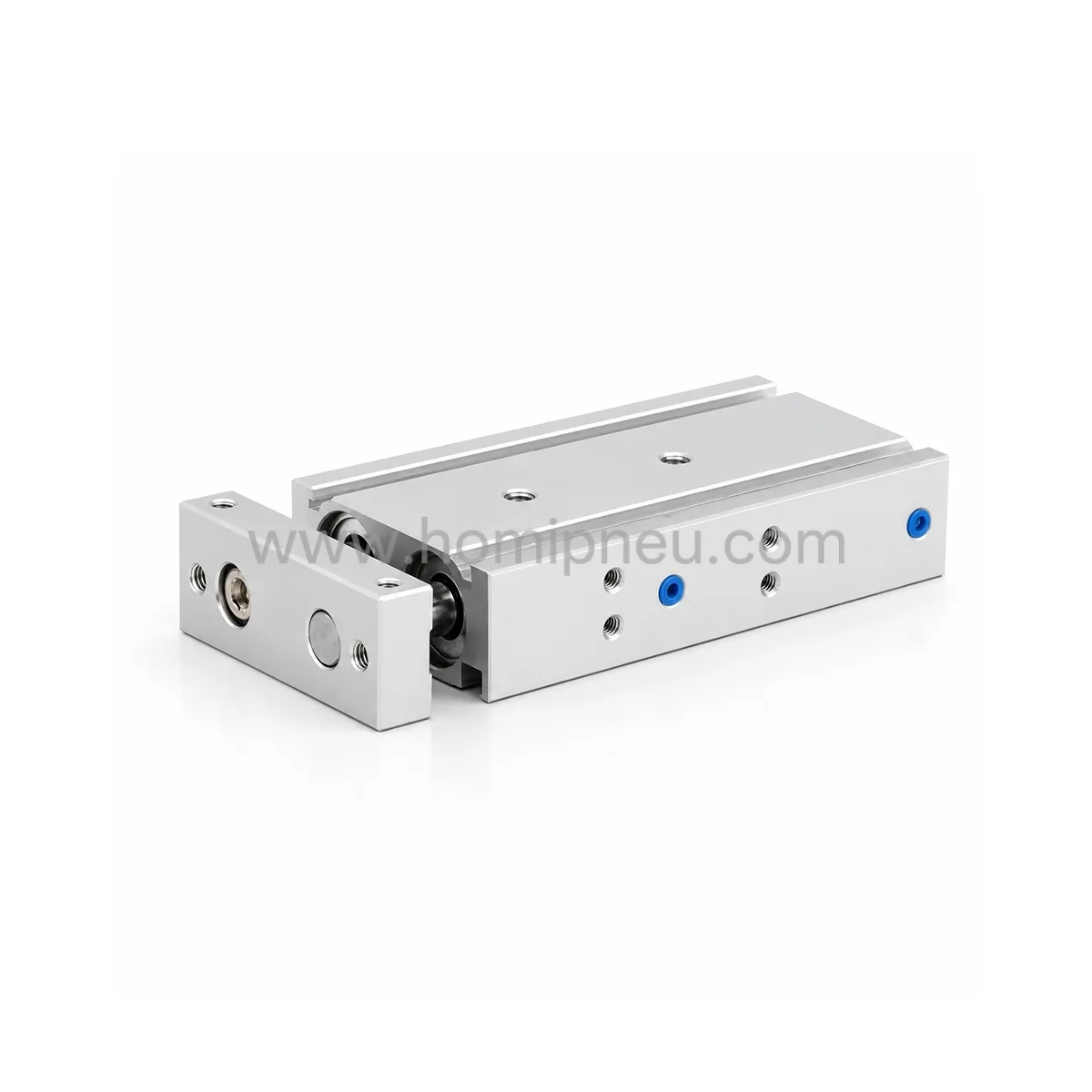

| Product Name | Dual Rod Guided Pneumatic Cylinder |
| Series | CXSM Series |
| Alternative Model | TR Series |
| Cylinder Type | Dual Piston Rod Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Slide Bearing Guide |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Non-Rotating Accuracy | ±0.1° |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CXSM Series |
| Applications | Pick-and-Place / Transfer / Positioning Systems |

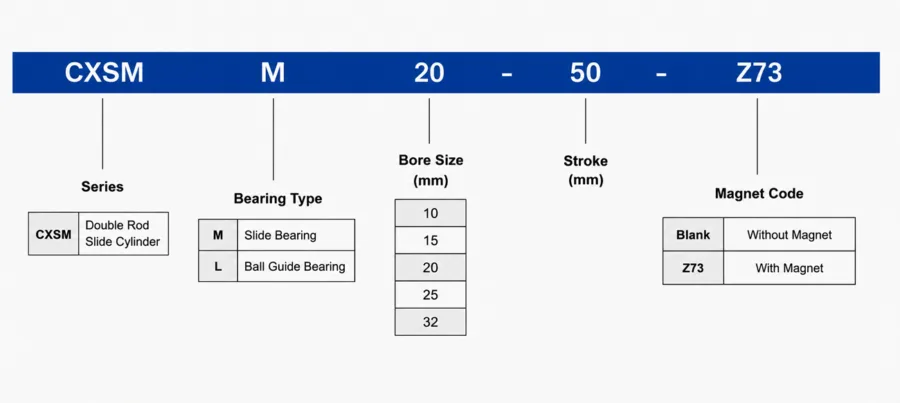

How to order
Product Features
Dual Rod Guided Structure
The CXSM Series uses a dual piston rod design to improve anti-rotation accuracy and side load resistance during linear motion.
Stable Guided Linear Motion
Designed for precise positioning, transfer, pushing, and pick-and-place applications in automation systems.
Compact Integrated Design
The compact body combines pneumatic actuation and guide functionality to reduce installation space requirements.
High Non-Rotating Accuracy
The slide bearing guide structure supports stable movement and accurate non-rotating performance during repeated operation cycles.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy housing for reliable long-term industrial automation use.
Suitable Replacement for SMC CXSM Series
Designed for guided pneumatic motion applications requiring replacement for SMC CXSM Series models.
Easy Automation Integration
ISO standard mounting supports practical installation into machinery, transfer systems, fixtures, and robotic automation equipment.
Applications
Pick-and-Place Systems
Used for stable workpiece transfer and positioning in automated production lines.
Assembly Automation
Suitable for guided linear movement in assembly machinery and transfer stations.
Packaging Equipment
Applied in sorting, pushing, feeding, and positioning applications within packaging automation.
Fixture and Jig Systems
Used in industrial fixtures requiring stable non-rotating guided movement.
Material Handling Equipment
Suitable for loading, unloading, transfer, and positioning tasks in automation systems.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- Dual rod structure for improved rigidity and stability
- Precision non-rotating linear motion performance
- Compact design for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CXSM Series interchangeable with SMC CXSM Series?
Yes, the CXSM dual rod guided pneumatic cylinder is designed to be interchangeable with SMC CXSM Series in many industrial automation applications.
What is the CXSM cylinder used for?
It is commonly used for positioning, transfer, pushing, assembly automation, and pick-and-place systems.
What type of guide structure does the CXSM Series use?
The CXSM Series uses a slide bearing guide structure for stable non-rotating linear movement.
Why does the CXSM Series use dual piston rods?
The dual rod structure improves side load resistance, non-rotating accuracy, and overall motion stability.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CXSM dual rod guided pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and industrial automation integrators.
