Specifications
| Parameter | Description |
|---|---|

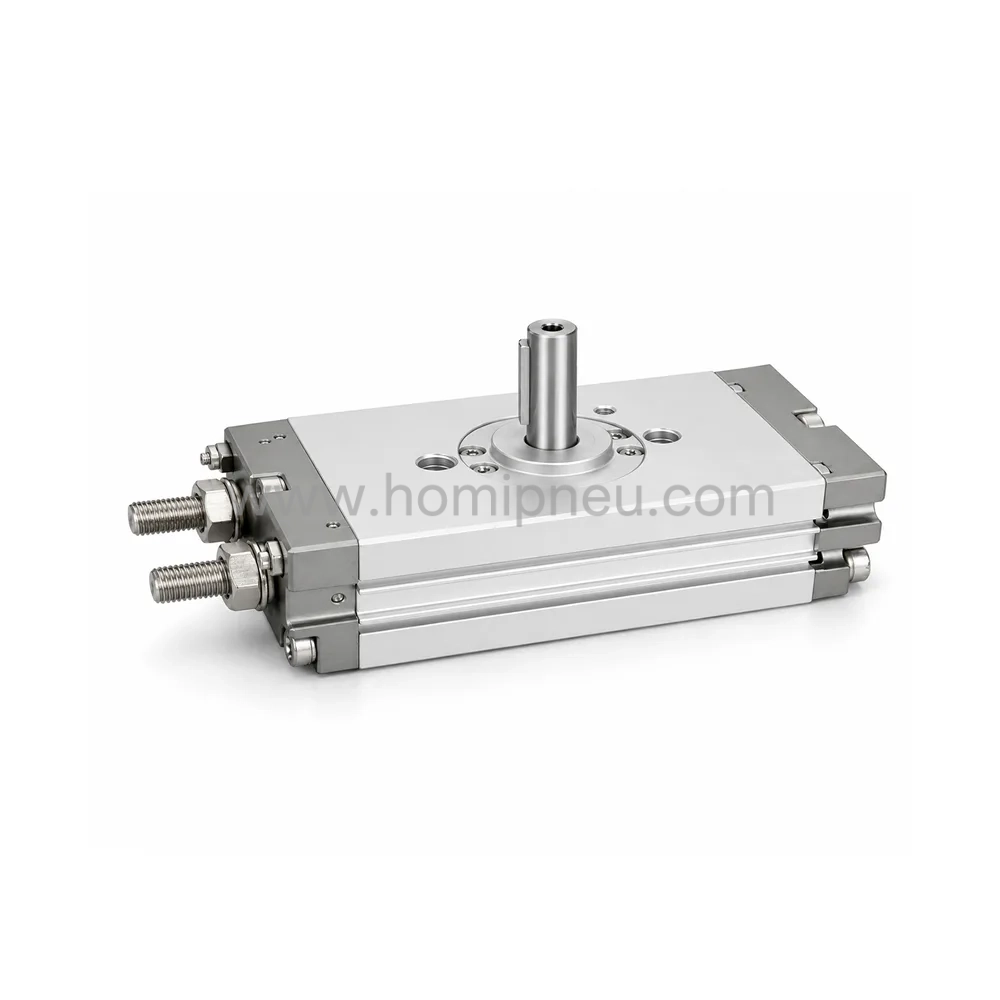

| Product Name | Pneumatic Rotary Actuator |
| Series | CRQ2B Series |
| Actuator Type | Compact Rotary Actuator |
| Rotation Angle | 90° / 180° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Rack and Pinion |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Motion Control |
| Compatible with | SMC CRQ2B Series |
| Applications | Rotary Positioning / Transfer / Automation Systems |

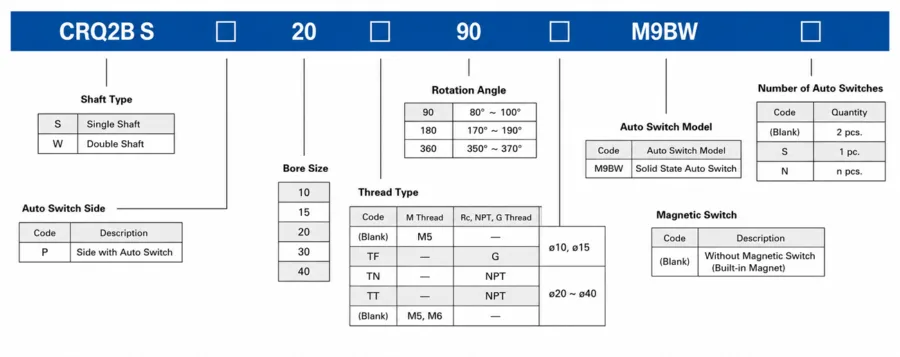

How to order
Product Features
Compact Rotary Structure
The CRQ2B Series adopts a compact rotary actuator design suitable for automation systems with limited installation space.
Stable Rotary Motion Performance
Provides smooth and repeatable rotary movement for positioning, transfer, and directional control applications.
Rack and Pinion Drive Mechanism
The internal rack and pinion structure supports reliable torque transmission and stable rotary operation.
Durable Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for long-term industrial automation use.
Flexible Equipment Integration
Supports multi-surface mounting for easier installation into automation machinery and transfer systems.
Suitable Replacement for SMC CRQ2B Series
Designed for industrial rotary automation applications requiring replacement for SMC CRQ2B Series actuators.
Reliable Automation Operation
Suitable for repeated rotary positioning and directional movement tasks in automated production environments.
Applications
Rotary Positioning Systems
Used for accurate rotary movement and positioning operations in automated production equipment.
Assembly Automation
Suitable for directional workpiece positioning and transfer in assembly machinery.
Packaging Equipment
Applied in packaging systems requiring stable rotary motion and directional control.
Transfer and Indexing Systems
Used in transfer units and indexing mechanisms requiring compact pneumatic rotary actuation.
Industrial Automation Machinery
Suitable for pneumatic automation equipment requiring compact rotary movement control.
Why Choose HOMIPNEU
- Stable pneumatic rotary actuator manufacturing quality
- Compact structure suitable for automation equipment integration
- Smooth and repeatable rotary positioning performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for automation system applications
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CRQ2B Series interchangeable with SMC CRQ2B Series?
Yes, the CRQ2B Series rotary actuator is designed to be interchangeable with SMC CRQ2B Series in many industrial automation applications.
What is the CRQ2B rotary actuator used for?
It is commonly used for rotary positioning, transfer systems, assembly automation, packaging machinery, and directional control applications.
What rotation angles are available?
Common rotation angles include 90° and 180° depending on application requirements.
What rotary mechanism is used in the CRQ2B Series?
The CRQ2B Series uses a rack and pinion rotary mechanism for stable and accurate rotary motion.
Can customized rotary actuator solutions be supported?
Yes, customized rotation angles, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary actuators, including customized rotation angles, mounting structures, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
