Specifications
| Parameter | Description |
|---|---|
| Product Name | Mini Rotary Actuator |
| Series | CRJB Series |
| Actuator Type | Pneumatic Rotary Actuator |
| Rotation Angle | 90° / 180° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Rack and Pinion |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Motion Control |
| Compatible with | SMC CRJB Series |
| Applications | Positioning / Transfer / Automation Systems |

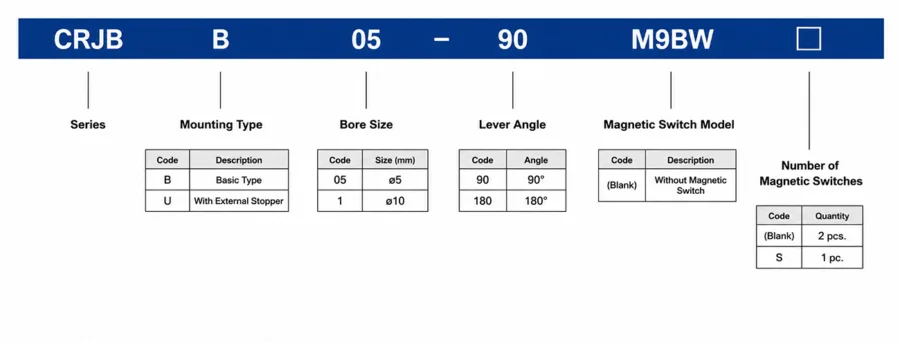

How to order
Product Features
Compact Mini Rotary Structure
The CRJB Series adopts a compact mini rotary actuator structure suitable for automation systems with limited installation space.
Stable Rotary Motion Performance
Provides smooth and repeatable rotary movement for positioning, transfer, and directional control applications.
Rack and Pinion Drive Mechanism
The internal rack and pinion structure supports stable torque transmission and accurate rotary positioning performance.
Lightweight Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for continuous industrial automation environments.
Flexible Equipment Integration
Supports multi-direction mounting for easier installation into automation machinery and transfer systems.
Suitable Replacement for SMC CRJB Series
Designed for compact rotary automation applications requiring replacement for SMC CRJB Series actuators.
Reliable Pneumatic Operation
Suitable for repeated rotary movement tasks in automated production and assembly equipment.
Applications
Rotary Positioning Systems
Used for accurate rotary positioning and directional movement in compact automated equipment.
Assembly Automation
Suitable for workpiece turning, positioning, and transfer operations in assembly machinery.
Packaging Machinery
Applied in packaging automation systems requiring stable rotary motion control.
Transfer and Sorting Equipment
Used in transfer systems and sorting machinery requiring compact pneumatic rotary actuation.
Industrial Automation Equipment
Suitable for automation systems requiring compact and stable rotary movement control.
Why Choose HOMIPNEU
- Stable pneumatic rotary actuator manufacturing quality
- Compact structure suitable for automation equipment integration
- Smooth and repeatable rotary positioning performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CRJB Series interchangeable with SMC CRJB Series?
Yes, the CRJB Series mini rotary actuator is designed to be interchangeable with SMC CRJB Series in many industrial automation applications.
What is the CRJB mini rotary actuator used for?
It is commonly used for rotary positioning, directional transfer, assembly automation, packaging machinery, and compact industrial motion control applications.
What rotary mechanism is used in the CRJB Series?
The CRJB Series uses a rack and pinion rotary mechanism for stable pneumatic rotary movement and torque transmission.
Can the CRJB Series be used in compact automation equipment?
Yes, the compact structure makes it suitable for automation systems with limited installation space.
Can customized rotary actuator solutions be supported?
Yes, customized rotation angles, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary actuators, including customized rotation angles, mounting structures, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
