Specifications
| Parameter | Description |
|---|---|

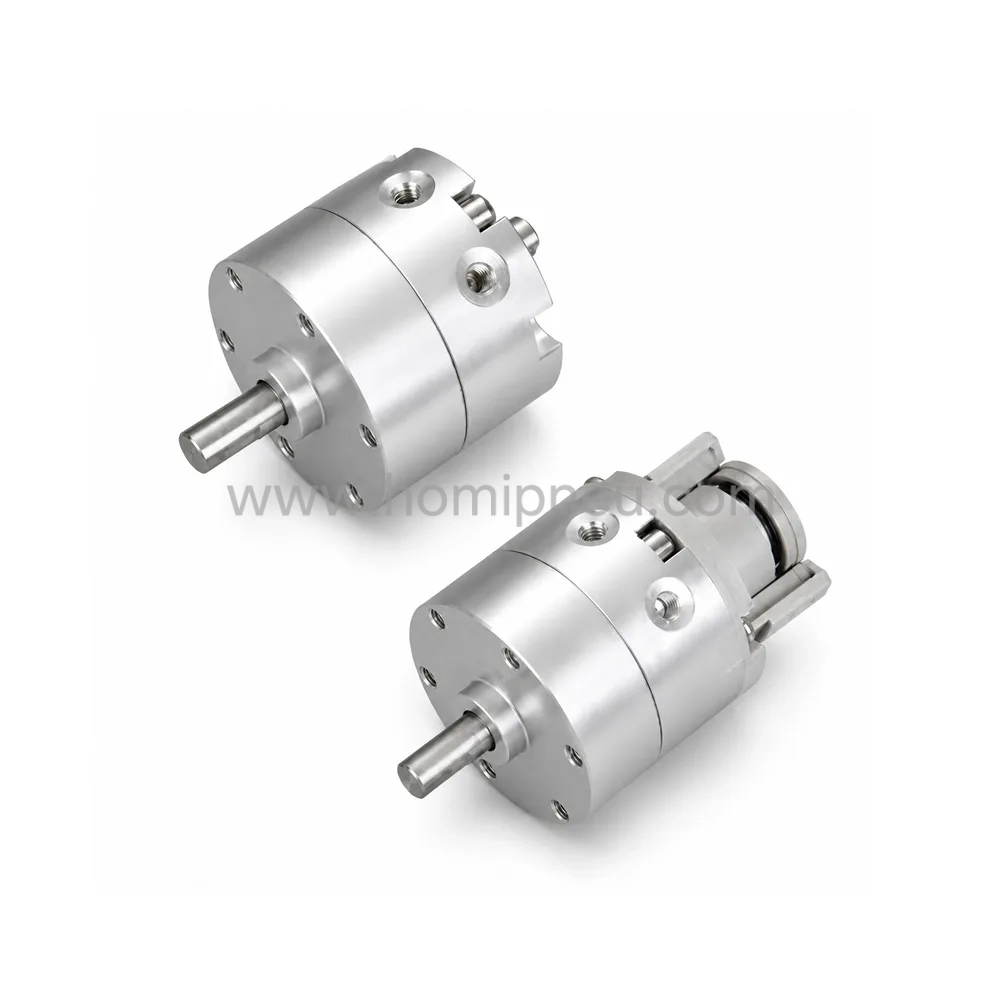

| Product Name | Pneumatic Vane Rotary Cylinder |
| Series | CRB2BW Series |
| Actuation Type | Vane Rotary Actuator |
| Rotation Angle | 90° / 180° / Custom |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Air Cushion |
| Motion Type | Double Vane Rotary Motion |
| Mounting Type | Standard Industrial Mounting |
| Compatible with | SMC CRB2BW Series |
| Application | Positioning / Clamping / Indexing Systems |
Product Features
Compact Vane Rotary Structure
Designed with a compact vane mechanism for space-saving pneumatic rotary motion control.
Stable Rotary Motion
Provides smooth and accurate angular positioning for automated industrial equipment.
Durable Aluminum Alloy Housing
Manufactured with high-strength aluminum alloy for reliable industrial performance and long service life.
High Repeatability
Suitable for automation systems requiring stable and repeatable rotary positioning.
Flexible Equipment Integration
Widely applied in clamping systems, indexing devices, transfer equipment, and automated assembly lines.
Easy Industrial Replacement
Ideal replacement for SMC CRB2BW Series in pneumatic rotary actuator applications.
Reliable Automation Performance
Suitable replacement for industrial pneumatic rotary motion systems requiring compact actuator installation.

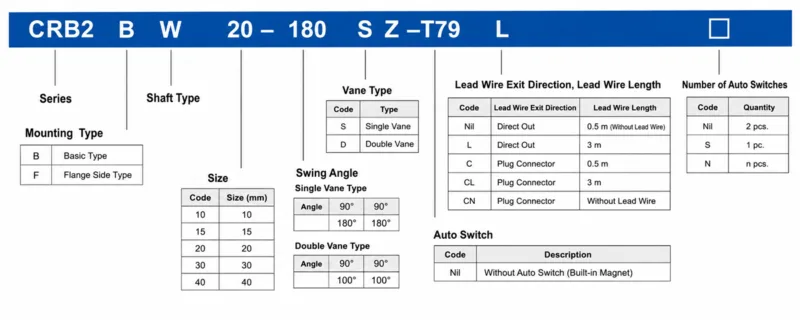

How to order
Applications
Automated Assembly Equipment
Used for rotary positioning and directional movement in industrial automation systems.
Pneumatic Clamping Systems
Suitable for fixture rotation and clamping applications requiring repeatable angular control.
Indexing and Transfer Equipment
Provides stable rotary movement for automated indexing and transfer mechanisms.
Packaging Machinery
Widely used in compact packaging and material handling automation systems.
Industrial Automation Systems
Suitable for high-cycle pneumatic rotary motion control applications.
Why Choose HOMIPNEU
- Compact and reliable vane rotary structure
- Stable torque output and smooth rotary operation
- Durable aluminum alloy construction
- Suitable for high-cycle industrial automation
- Consistent manufacturing quality
- Fast delivery and global supply capability
- OEM & ODM customization services
- Professional pneumatic automation manufacturing experience
FAQ
Is the CRB2BW Series interchangeable with SMC CRB2BW Series?
Yes, the CRB2BW Series pneumatic vane rotary cylinder is designed to be interchangeable with SMC CRB2BW Series in many industrial automation applications.
What rotation angles are available?
Standard rotation angles typically include 90°, 180°, and 270° depending on model specifications.
What applications are suitable for vane rotary cylinders?
These actuators are commonly used in positioning, indexing, clamping, transfer systems, and automated assembly equipment.
What operating pressure range is supported?
The typical operating pressure range is 0.15~0.7 MPa for stable pneumatic rotary operation.
Can OEM and ODM customization be supported?
Yes, OEM and ODM services are available, including customized specifications, logo branding, and packaging solutions.
OEM & ODM Support
HOMIPNEU provides professional OEM and ODM manufacturing services for pneumatic vane rotary cylinders, including customized specifications, logo branding, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
