Specifications
| Parameter | Description |
|---|---|

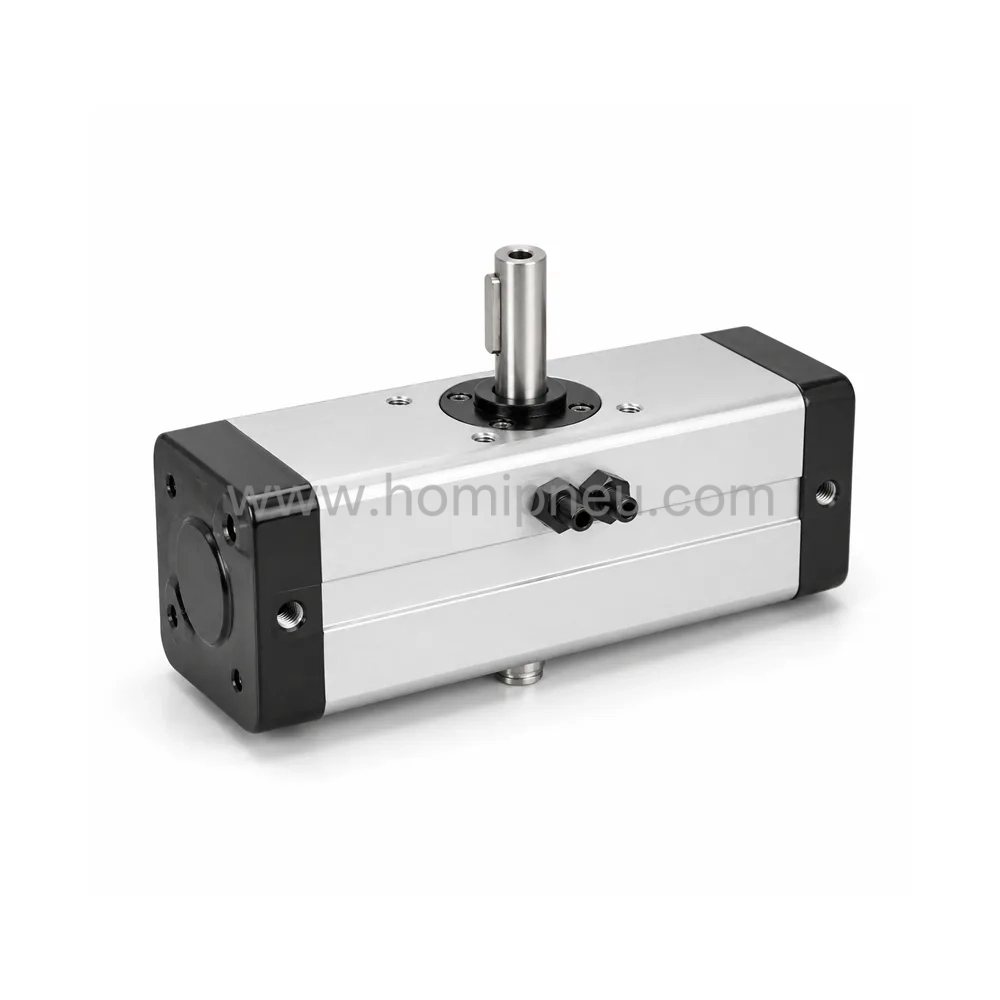

| Product Name | Pneumatic Rotary Actuator |
| Series | CDRA1 Series |
| Actuator Type | Rotary Actuator |
| Rotation Angle | 90° / 180° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Vane Type |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Motion Control |
| Compatible with | SMC CDRA1 Series |
| Applications | Positioning / Transfer / Automation Systems |

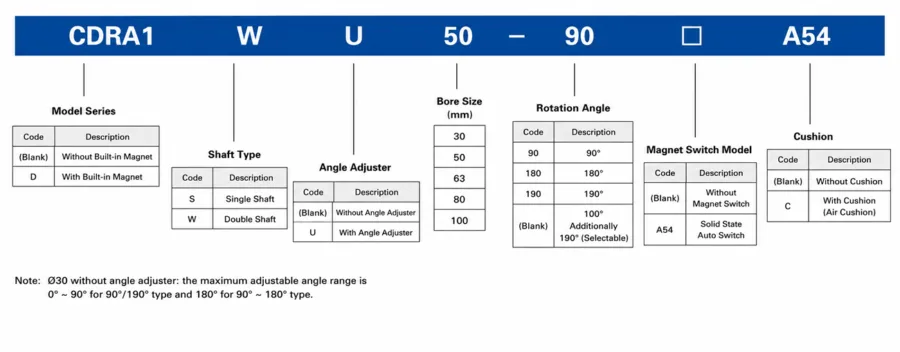

How to order
Product Features
Compact Rotary Actuator Design
The CDRA1 Series features a compact rotary structure suitable for automation systems requiring stable rotary motion in limited installation spaces.
Stable Rotary Motion Control
Provides smooth and repeatable rotary movement for positioning, transfer, and directional control applications.
Vane Type Rotary Structure
The vane rotary mechanism supports stable torque output and efficient pneumatic rotary motion control.
Durable Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for continuous industrial automation operation.
Flexible Mounting Configuration
Supports multi-direction installation for easier integration into pneumatic automation equipment.
Suitable Replacement for SMC CDRA1 Series
Designed for rotary automation applications requiring replacement for SMC CDRA1 Series actuators.
Reliable Industrial Automation Performance
Suitable for repeated rotary positioning and directional movement operations in automated production systems.
Applications
Rotary Positioning Equipment
Used for accurate rotary positioning and directional movement in automated production systems.
Assembly Automation
Suitable for workpiece turning, positioning, and transfer applications in assembly machinery.
Packaging Machinery
Applied in packaging automation systems requiring stable rotary movement control.
Transfer and Sorting Systems
Used in transfer units and sorting equipment requiring compact pneumatic rotary actuation.
Industrial Automation Equipment
Suitable for automation machinery requiring compact and stable rotary motion control.
Why Choose HOMIPNEU
- Stable pneumatic rotary actuator manufacturing quality
- Compact structure suitable for automation equipment integration
- Smooth and repeatable rotary movement performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CDRA1 Series interchangeable with SMC CDRA1 Series?
Yes, the CDRA1 Series pneumatic rotary actuator is designed to be interchangeable with SMC CDRA1 Series in many industrial automation applications.
What is the CDRA1 rotary actuator used for?
It is commonly used for rotary positioning, transfer systems, assembly automation, packaging machinery, and directional control applications.
What rotation angles are available?
Common rotation angles include 90° and 180° depending on application requirements.
What rotary structure is used in the CDRA1 Series?
The CDRA1 Series uses a vane type rotary mechanism for stable pneumatic rotary motion and torque output.
Can customized rotary actuator solutions be supported?
Yes, customized rotation angles, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary actuators, including customized rotation angles, mounting structures, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
