Pneumatic Tee vs Cross Fittings – 3 Way vs 4 Way Air Connectors Explained
Date: 2026-04-29 Categories: Blogs Views: 20

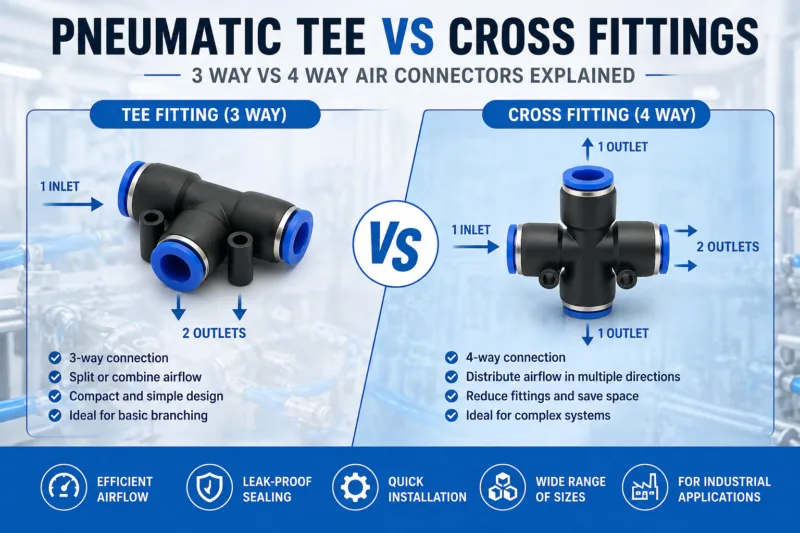

Key Differences Between Tee and Cross Fittings
| Feature | Tee Fitting (PE / PY) | Cross Fitting (PZA) |
|---|---|---|
| Structure | 3-way (T or Y shape) | 4-way cross |
| Flow Direction | 1 → 2 branches | 1 → 3 branches |
| Complexity | Simple | More complex |
| Space Requirement | Compact | Requires more space |
| Application | Basic branching | Multi-direction systems |
What is a Pneumatic Tee Fitting?
A pneumatic tee fitting is a 3-way connector used to split one air line into two directions or combine two into one.
There are two common types:
- T-type (PE) → 90° branch
- Y-type (PY) → angled branch for smoother airflow
Tee fittings are the most commonly used connectors in pneumatic systems.
What is a Pneumatic Cross Fitting?
A pneumatic cross fitting is a 4-way connector that allows air to flow in multiple directions simultaneously.
It is typically used in more complex pneumatic systems where multiple air lines need to be connected at a single point.
Compared to tee fittings, cross fittings reduce the number of connectors required in multi-branch systems.
Applications
- Industrial automation systems
- Air compressor distribution systems
- Robotics and assembly lines
- Packaging machinery
- Multi-line pneumatic control systems
Tee fittings are ideal for simple air branching, while cross fittings are better suited for complex multi-direction air distribution.
When to Use Tee vs Cross Fittings
Use Tee Fittings (3-way) when:
- You need simple airflow branching
- Space is limited
- System complexity is low
- Cost needs to be minimized
Use Cross Fittings (4-way) when:
- You need multi-direction airflow distribution
- System layout is complex
- You want to reduce the number of connectors
- Centralized air distribution is required
Performance Considerations
- Tee fittings generally have lower pressure drop due to simpler flow paths
- Cross fittings may create more turbulence if not properly designed
- Y-type tee fittings (PY) provide smoother airflow than T-type (PE)
Why Choose Our Pneumatic Fittings
- Full range of tee, Y-type, and cross pneumatic fittings
- OEM / ODM customization for industrial air connector solutions
- Reliable push-to-connect fittings for automation systems
- High-quality pneumatic fitting manufacturer with strict QC system
- Durable air tube connectors for long-term industrial use
- Fast delivery and global B2B supply support
FAQ
Q1: What is the difference between a tee and a cross fitting?
A tee fitting has three ports, while a cross fitting has four ports for multi-direction airflow.
Q2: Which is better, tee or cross fitting?
It depends on the system. Tee fittings are simpler, while cross fittings are better for complex air distribution.
Q3: Does a cross fitting reduce the number of connections?
Yes, it can replace multiple tee fittings in complex systems.
Q4: What is the advantage of a Y-type tee fitting?
It provides smoother airflow and reduces turbulence compared to T-type fittings.
Q5: Are these fittings compatible with all tubes?
They are typically used with PU tube and nylon tube in pneumatic systems.
