Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

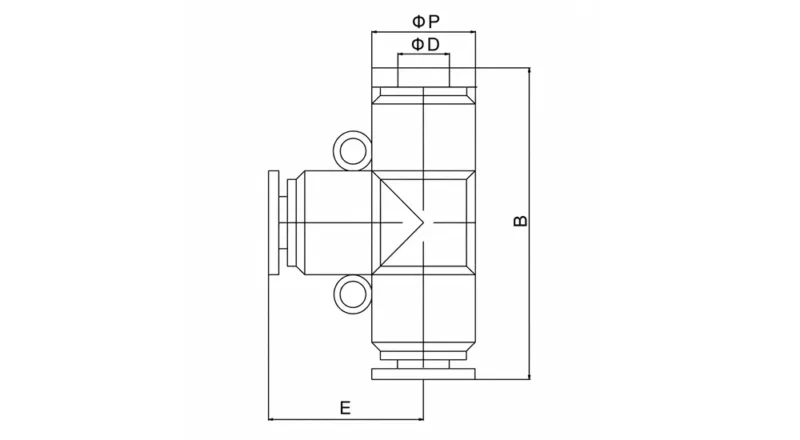

| Model | ØD×3 | B | ØPx3 | E |
| PE-4 | 4 | 36 | 11 | 18 |
| PE-6 | 6 | 40 | 13 | 20 |
| PE-8 | 8 | 44 | 15 | 22 |
| PE-10 | 10 | 52 | 18.5 | 26 |
| PE-12 | 12 | 56 | 21 | 28 |
| PE-14 | 14 | 62 | 23 | 31 |
| PE-16 | 16 | 66 | 25.5 | 33 |
Key Features

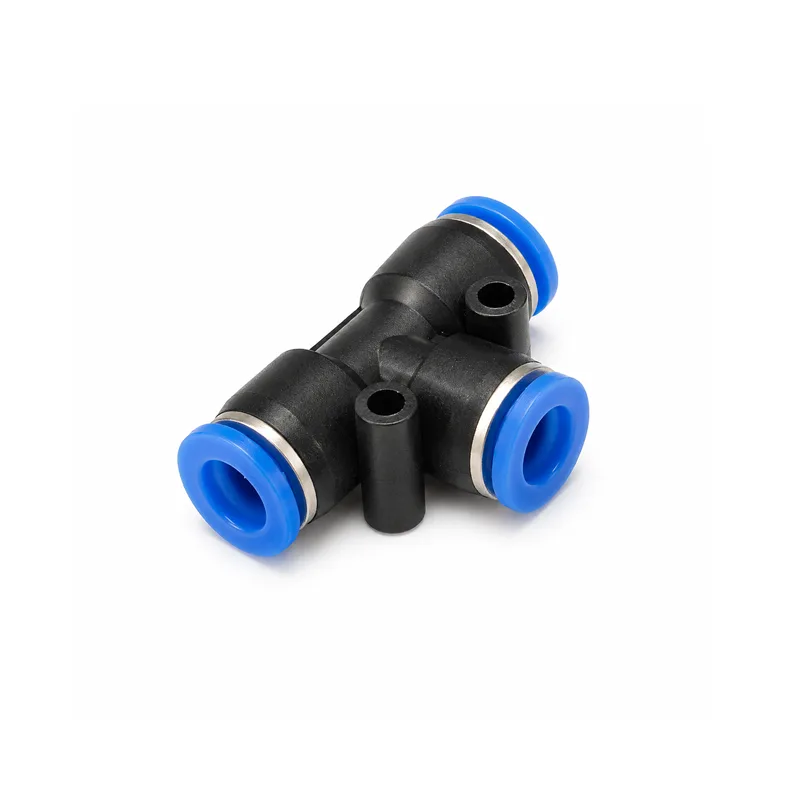

- T type three-way air distribution design
- Push-to-connect quick installation
- One inlet to two outlets airflow branching
- Suitable for PU tube and nylon tube
- Compact structure for organized piping layout
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Robotics systems
- Packaging and assembly equipment
Widely used in pneumatic systems requiring airflow branching, T type tube connection, and reliable multi-direction air distribution.
Product Function
PE fittings are designed to split one pneumatic air line into two branch lines or combine two lines into one, helping distribute compressed air efficiently in pneumatic circuits.
Simple structure comparison:
Product Structure & Size Range
- PE4 / PE6 / PE8 / PE10 / PE12 / PE14 / PE16
- Tube sizes: 4mm → 16mm
- Equal T-type branch structure
- Three-way tube connection
Why Choose Our Pneumatic Fittings
- Professional PE pneumatic fitting manufacturer with stable supply capacity
- OEM / ODM customization for T type push to connect fitting projects
- Reliable pneumatic tee connector for automation and compressed air systems
- High-quality air fitting factory China with strict QC system
- Durable push-in pneumatic T fitting for airflow branching applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PE pneumatic fitting?
It is a T type push-to-connect fitting used to branch or combine air tubes in pneumatic systems.
Q2: What is a T type pneumatic fitting used for?
It is used for airflow distribution, branching, or combining in pneumatic tubing systems.
Q3: What is the difference between PE and PY fittings?
PE is a T type three-way connector, while PY is a Y type three-way branch connector.
Q4: What tubing is compatible with PE fittings?
PE fittings are suitable for PU tube and nylon tube.
Q5: Can PE fittings be customized?
Yes, OEM/ODM customization is available for tube size, material, color, and structure.
