Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

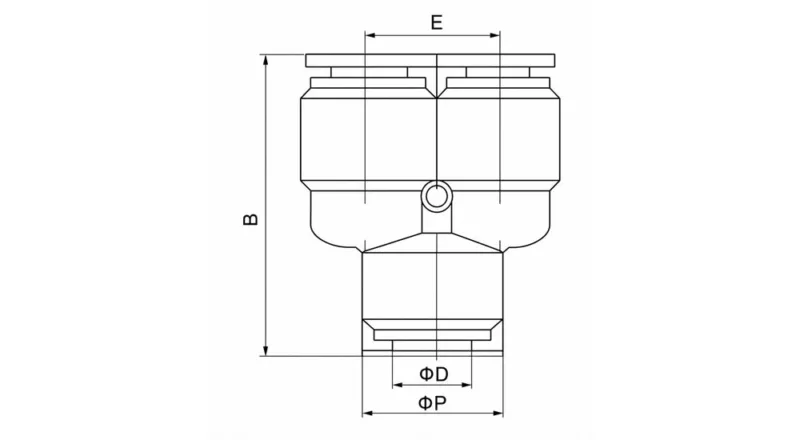

| Model | ØD×3 | B | ØP × 3 | E |
| PY-4 | 4 | 33.5 | 11 | 11 |
| PY-6 | 6 | 36.5 | 13 | 13 |
| PY-8 | 8 | 41.5 | 15 | 15 |
| PY-10 | 10 | 45.5 | 18.5 | 18.5 |
| PY-12 | 12 | 48.5 | 21 | 21 |
| PY-14 | 14 | 54 | 23 | 23 |
| PY-16 | 16 | 58 | 25.5 | 25.5 |
Key Features
- Y type three-way air distribution design
- Push-to-connect quick installation
- One inlet to two outlets airflow branching
- Suitable for PU tube and nylon tube
- Compact structure for clean piping layout
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Robotics systems
- Packaging and assembly equipment
Widely used in pneumatic systems requiring airflow branching, compact tube layout, and reliable multi-direction air distribution.
Product Function
PY fittings are designed to split one pneumatic air line into two branch lines, helping distribute compressed air efficiently in pneumatic circuits.
Simple structure comparison:
Product Structure & Size Range
- PY4 / PY6 / PY8 / PY10 / PY12
- Equal Y-type branch structure
- Three-way tube connection
- Push-to-connect tube locking design
Why Choose Our Pneumatic Fittings
- Professional PY pneumatic fitting manufacturer with stable supply capacity
- OEM / ODM customization for Y type push to connect fitting projects
- Reliable pneumatic tee connector for automation and compressed air systems
- High-quality air fitting factory China with strict QC system
- Durable push-in pneumatic Y fitting for airflow branching applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PY pneumatic fitting?
It is a Y type push-to-connect fitting used to split one air tube into two branch lines.
Q2: What is a Y type pneumatic fitting used for?
It is used for airflow distribution and branching in pneumatic tubing systems.
Q3: What is the difference between PV and PY fittings?
PV is a 90-degree elbow connector, while PY is a Y type three-way branch connector.
Q4: What tubing is compatible with PY fittings?
PY fittings are suitable for PU tube and nylon tube.
Q5: Can PY fittings be customized?
Yes, OEM/ODM customization is available for tube size, material, color, and structure.
