Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |
| Model | ΦD×2 | E | B | ΦP×2 | A | R | H |
| PB4-M5 | 4 | 21.5 | 36 | 11 | 3.5 | M5 | 10 |
| PB4-01 | 4 | 25 | 36 | 11 | 7 | R1/8 | 10 |
| PB4-02 | 4 | 26 | 36 | 11 | 8 | R1/4 | 14 |
| PB6-M5 | 6 | 23.5 | 40 | 13 | 3.5 | M5 | 12 |
| PB6-01 | 6 | 27 | 40 | 13 | 7 | R1/8 | 12 |
| PB6-02 | 6 | 28 | 40 | 13 | 8 | R1/4 | 14 |
| PB6-03 | 6 | 29 | 40 | 13 | 9 | R3/8 | 17 |
| PB6-04 | 6 | 30.5 | 40 | 13 | 10 | R1/2 | 21 |
| PB8-01 | 8 | 29 | 44 | 15 | 7 | R1/8 | 14 |
| PB8-02 | 8 | 30 | 44 | 15 | 8 | R1/4 | 14 |
| PB8-03 | 8 | 31 | 44 | 15 | 9 | R3/8 | 17 |
| PB8-04 | 8 | 32.5 | 44 | 15 | 10 | R1/2 | 21 |
| PB10-01 | 10 | 32 | 52 | 18.5 | 7 | R1/8 | 17 |
| PB10-02 | 10 | 33 | 52 | 18.5 | 8 | R1/4 | 17 |
| PB10-03 | 10 | 34 | 52 | 18.5 | 9 | R3/8 | 17 |
| PB10-04 | 10 | 35.5 | 52 | 18.5 | 10 | R1/2 | 21 |
| PB12-01 | 12 | 34 | 56 | 21 | 7 | R1/8 | 19 |
| PB12-02 | 12 | 35 | 56 | 21 | 8 | R1/4 | 19 |
| PB12-03 | 12 | 36 | 56 | 21 | 9 | R3/8 | 19 |
| PB12-04 | 12 | 37.5 | 56 | 21 | 10 | R1/2 | 21 |
| PB14-02 | 14 | 37.5 | 62 | 23 | 8 | R1/4 | 21 |
| PB14-03 | 14 | 38.5 | 62 | 23 | 9 | R3/8 | 21 |
| PB14-04 | 14 | 39.5 | 62 | 23 | 10 | R1/2 | 21 |
| PB16-02 | 16 | 39.5 | 66 | 25.5 | 8 | R1/4 | 24 |
| PB16-03 | 16 | 40.5 | 66 | 25.5 | 9 | R3/8 | 24 |
| PB16-04 | 16 | 41.5 | 66 | 25.5 | 10 | R1/2 | 24 |
| PB16-06 | 16 | 43.5 | 66 | 25.5 | 12 | R3/4 | 27 |
Key Features
- T-type three-way airflow distribution design
- Male threaded port for secure installation
- Nickel-plated brass for corrosion resistance
- High mechanical strength and durability
- Push-to-connect quick installation
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Control valves and cylinders
- Multi-branch air distribution systems
Widely used in pneumatic systems requiring airflow branching, durable metal fittings, and reliable tube-to-thread connection.
Product Function

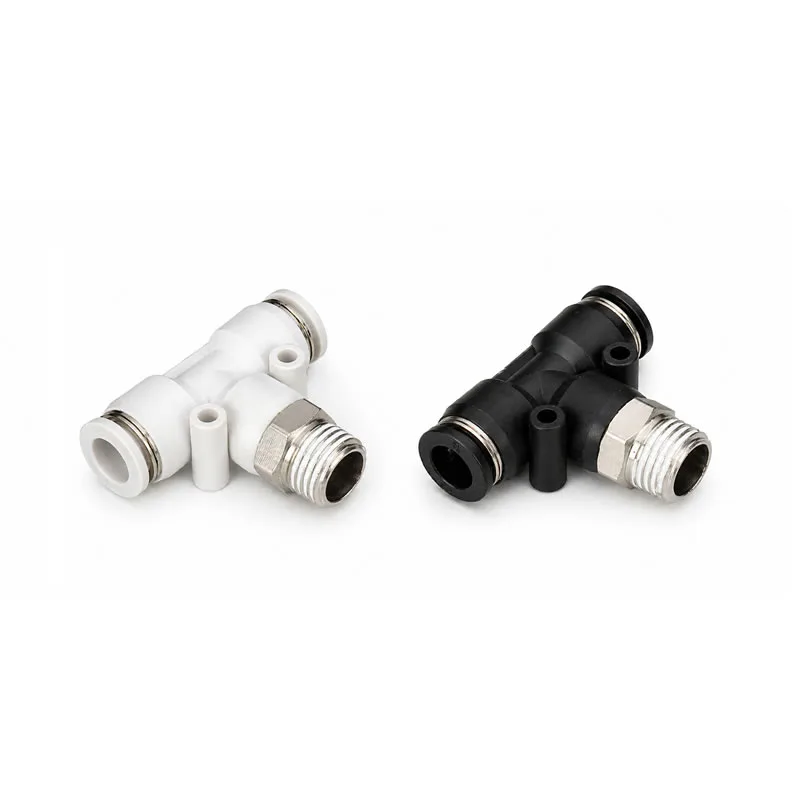

PB fittings are designed to split airflow into multiple directions while connecting tubing to threaded equipment, enabling efficient pneumatic circuit design.
Compared to PE (tube-to-tube tee), PB provides threaded interface + airflow branching, making it more suitable for equipment connections.
Product Structure & Size Range
- PB4-M5 / PB6-01 / PB8-02 / PB10-03 / PB12-04
- Tube sizes: 4mm → 16mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Male threaded tee structure
Why Choose Our Pneumatic Fittings
- Professional PB pneumatic fitting manufacturer with full size range
- OEM / ODM customization for nickel plated brass tee fittings
- Reliable pneumatic tee connector for automation systems
- High-quality metal fittings with corrosion resistance and durability
- Durable push-to-connect tee fittings for industrial applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PB pneumatic fitting?
It is a nickel-plated brass tee push-to-connect fitting used for airflow branching and threaded connection.
Q2: What is the advantage of nickel-plated brass fittings?
They provide corrosion resistance, higher strength, and longer service life compared to plastic fittings.
Q3: What is a pneumatic tee fitting used for?
It is used to split airflow into multiple directions in pneumatic systems.
Q4: What tubing is compatible with PB fittings?
PB fittings are suitable for PU tube and nylon tube.
Q5: Can PB fittings be customized?
Yes, OEM/ODM customization is available for size, thread type, and materials.
CTA
Looking for reliable nickel-plated brass pneumatic tee fittings for your system?
Contact us now for OEM/ODM solutions, bulk pricing, and fast delivery.
