Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |

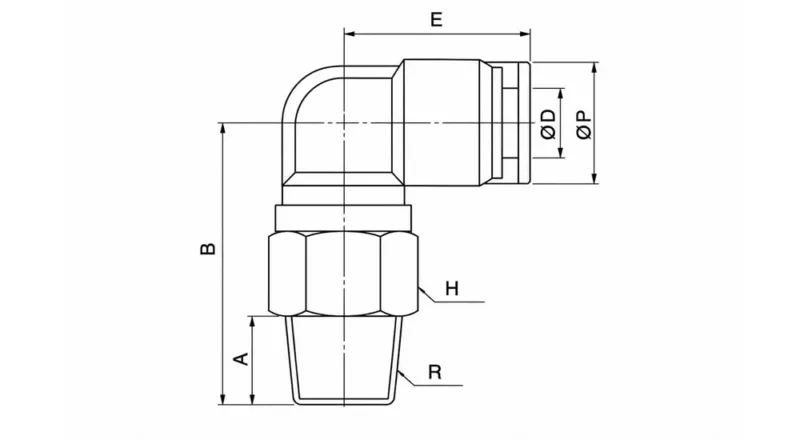

| Model | ΦD | E | B | ΦP | A | R | H |
| PL4-M5 | 4 | 18 | 21.5 | 11 | 3.5 | M5 | 10 |
| PL4-01 | 4 | 18 | 25 | 11 | 7 | R1/8 | 10 |
| PL4-02 | 4 | 18 | 26 | 11 | 8 | R1/4 | 14 |
| PL6-M5 | 6 | 20 | 23.5 | 13 | 3.5 | M5 | 12 |
| PL6-01 | 6 | 20 | 27 | 13 | 7 | R1/8 | 12 |
| PL6-02 | 6 | 20 | 28 | 13 | 8 | R1/4 | 14 |
| PL6-03 | 6 | 20 | 29 | 13 | 9 | R3/8 | 17 |
| PL6-04 | 6 | 20 | 30.5 | 13 | 10 | R1/2 | 21 |
| PL8-01 | 8 | 22 | 29 | 15 | 7 | R1/8 | 14 |
| PL8-02 | 8 | 22 | 30 | 15 | 8 | R1/4 | 14 |
| PL8-03 | 8 | 22 | 31 | 15 | 9 | R3/8 | 17 |
| PL8-04 | 8 | 22 | 32.5 | 15 | 10 | R1/2 | 21 |
| PL10-01 | 10 | 26 | 32 | 18.5 | 7 | R1/8 | 14 |
| PL10-02 | 10 | 26 | 33 | 18.5 | 8 | R1/4 | 14 |
| PL10-03 | 10 | 26 | 34 | 18.5 | 9 | R3/8 | 17 |
| PL10-04 | 10 | 26 | 35.5 | 18.5 | 10 | R1/2 | 21 |
| PL12-01 | 12 | 28 | 34 | 21 | 7 | R1/8 | 19 |
| PL12-02 | 12 | 28 | 35 | 21 | 8 | R1/4 | 19 |
| PL12-03 | 12 | 28 | 36 | 21 | 9 | R3/8 | 19 |
| PL12-04 | 12 | 28 | 37.5 | 21 | 10 | R1/2 | 21 |
| PL14-02 | 14 | 30.5 | 37.5 | 23 | 8 | R1/4 | 22 |
| PL14-03 | 14 | 30.5 | 38.5 | 23 | 9 | R3/8 | 22 |
| PL14-04 | 14 | 30.5 | 39.5 | 23 | 10 | R1/2 | 22 |
| PL16-02 | 16 | 33 | 39.5 | 25.5 | 8 | R1/4 | 24 |
| PL16-03 | 16 | 33 | 40.5 | 25.5 | 9 | R3/8 | 24 |
| PL16-04 | 16 | 33 | 41.5 | 25.5 | 10 | R1/2 | 24 |
| PL16-06 | 16 | 33 | 43.5 | 25.5 | 12 | R3/4 | 27 |

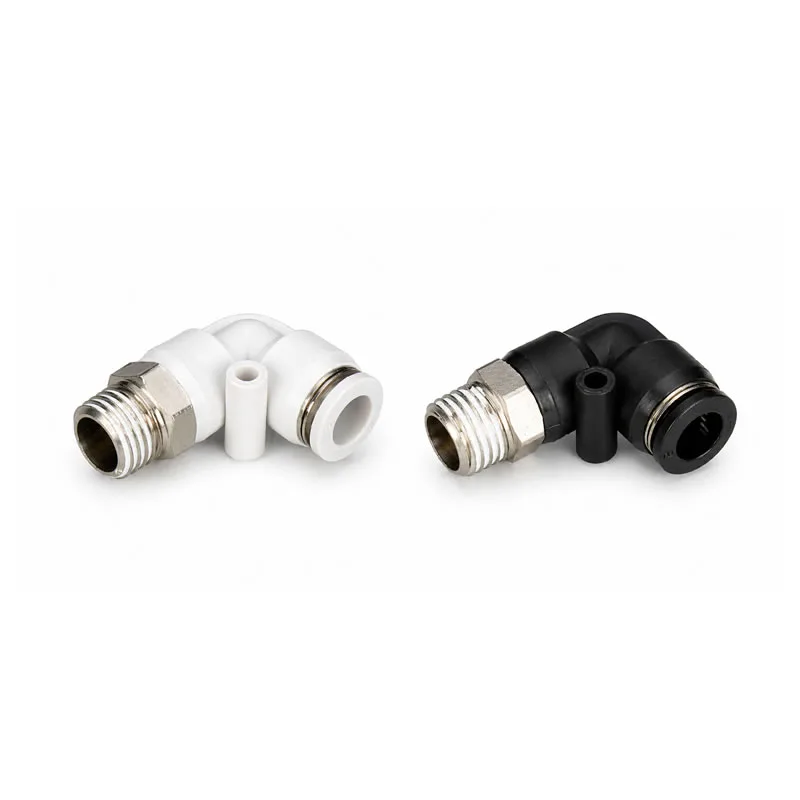

Key Features
- 90° elbow directional connection design
- Male threaded port for secure installation
- Push-to-connect quick installation
- Nickel-plated brass for corrosion resistance
- Compact structure for tight spaces
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Control valves and cylinders
- Equipment air interface connections
Widely used in pneumatic systems requiring direction change, compact installation, and reliable tube-to-thread connection.
Product Function
PL fittings are designed to connect pneumatic tubing to threaded ports while redirecting airflow by 90 degrees, enabling flexible and efficient pneumatic system layouts.
Compared to PC fittings (straight), PL fittings provide angle routing capability, making them essential for compact installations and space-limited environments.
Product Structure & Size Range
- PL4-M5 / PL6-01 / PL8-02 / PL10-03 / PL12-04
- Tube sizes: 4mm → 16mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Male threaded elbow structure
Why Choose Our Pneumatic Fittings
- Professional PL pneumatic fitting manufacturer with full thread size range
- OEM / ODM customization for male elbow push to connect fitting projects
- Reliable pneumatic elbow connector for automation and compressed air systems
- High-quality nickel-plated brass fittings with strict QC system
- Durable 90 degree pneumatic fittings for industrial environments
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PL pneumatic fitting?
It is a male 90-degree elbow push-to-connect fitting used to connect tubing to threaded ports.
Q2: What is a pneumatic elbow fitting used for?
It is used to change airflow direction and optimize tube routing in pneumatic systems.
Q3: What is the difference between PC and PL fittings?
PC is a straight fitting, while PL is a 90-degree elbow fitting.
Q4: What tubing is compatible with PL fittings?
PL fittings are suitable for PU tube and nylon tube.
Q5: Can PL fittings be customized?
Yes, OEM/ODM customization is available for size, thread type, and materials.
