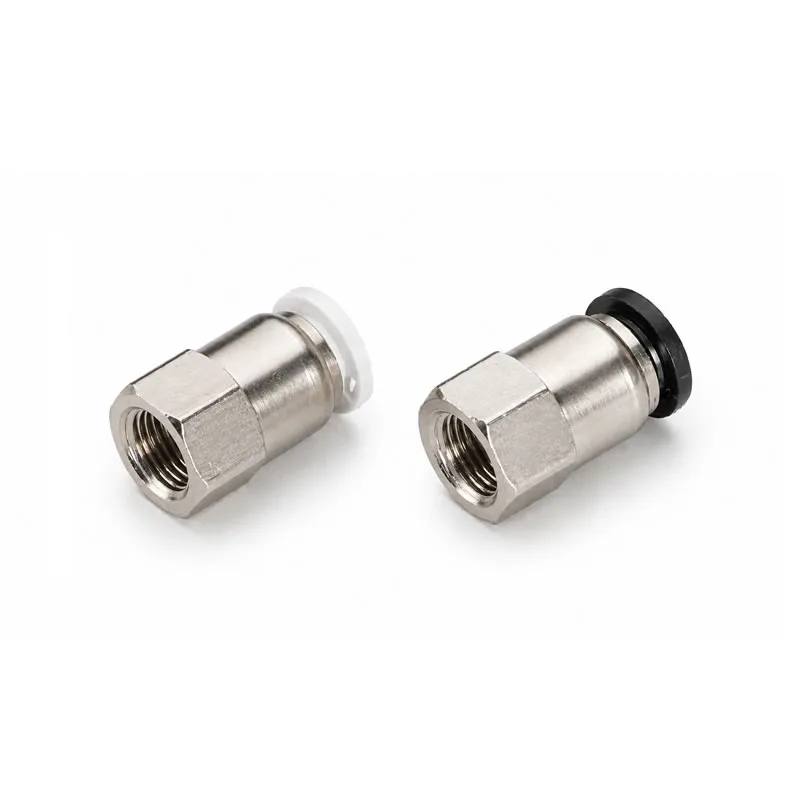

Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |

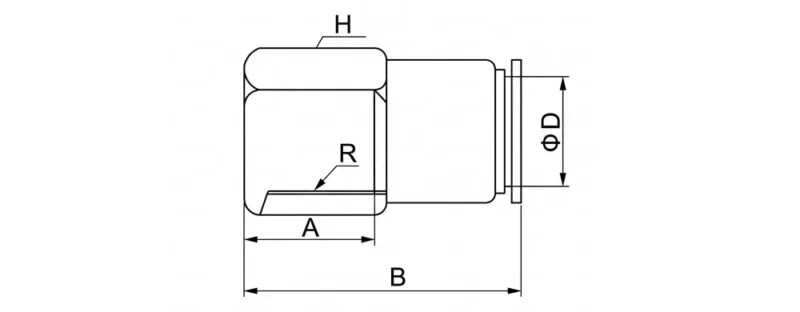

| Model | ΦD | R | A | B | H |
| PCF4-M5 | 4 | M5 | 5.5 | 19.5 | 10 |
| PCF4-01 | 4 | R1/8 | 8 | 22 | 12 |
| PCF4-02 | 4 | R1/4 | 9.5 | 23.5 | 15 |
| PCF6-M5 | 6 | M5 | 5.5 | 20.5 | 12 |
| PCF6-01 | 6 | R1/8 | 8 | 23.5 | 12 |
| PCF6-02 | 6 | R1/4 | 9.5 | 25 | 15 |
| PCF6-03 | 6 | R3/8 | 10.5 | 26 | 19 |
| PCF6-04 | 6 | R1/2 | 11.5 | 27 | 24 |
| PCF8-01 | 8 | R1/8 | 8 | 24 | 14 |
| PCF8-02 | 8 | R1/4 | 9.5 | 25.5 | 15 |
| PCF8-03 | 8 | R3/8 | 10.5 | 26.5 | 10 |
| PCF8-04 | 8 | R1/2 | 11.5 | 27.5 | 24 |
| PCF10-01 | 10 | R1/8 | 8 | 25 | 17 |
| PCF10-02 | 10 | R1/4 | 9.5 | 27 | 17 |
| PCF10-03 | 10 | R3/8 | 10.5 | 28 | 19 |
| PCF10-04 | 10 | R1/2 | 11.5 | 29 | 24 |
| PCF12-01 | 12 | R1/8 | 8 | 27 | 19 |
| PCF12-02 | 12 | R1/4 | 9.5 | 28.5 | 19 |
| PCF12-03 | 12 | R3/8 | 10.5 | 30 | 19 |
| PCF12-04 | 12 | R1/2 | 10.5 | 31 | 24 |
Key Features
- Female straight threaded connection design
- Push-to-connect quick installation
- Nickel-plated brass for corrosion resistance
- Strong mechanical strength and durability
- Leak-proof sealing with O-ring
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Control valves and cylinders
- Equipment air interface connections
Widely used in pneumatic systems requiring tube-to-female-thread connection, durable metal fittings, and reliable sealing performance.
Product Function
PCF fittings are designed to connect pneumatic tubing to male threaded ports, enabling secure integration between tubing systems and pneumatic equipment.
Compared to PC fittings (male thread), PCF provides a female threaded interface, offering flexible connection options for different system configurations.
Product Structure & Size Range
- PCF4-M5 / PCF6-01 / PCF8-02 / PCF10-03 / PCF12-04
- Tube sizes: 4mm → 16mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Female threaded + push-in structure
Why Choose Our Pneumatic Fittings
- Professional PCF pneumatic fitting manufacturer with full thread size range
- OEM / ODM customization for nickel plated brass female push to connect fitting projects
- Reliable pneumatic threaded connector for automation and compressed air systems
- High-quality metal pneumatic fittings with strict QC system
- Durable corrosion-resistant fittings for industrial environments
- Fast delivery and global B2B supply support
