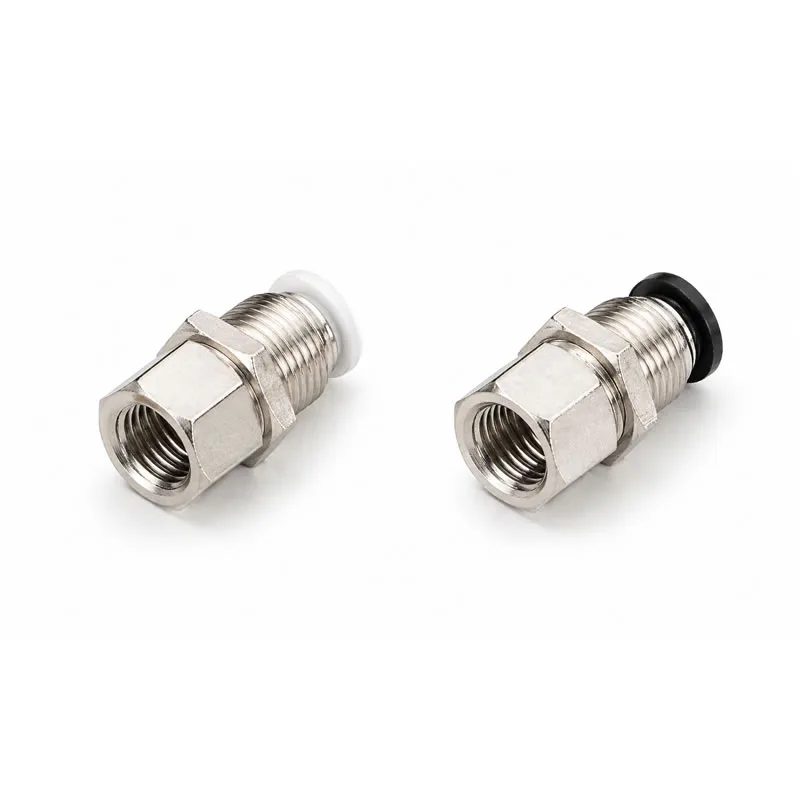

Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |

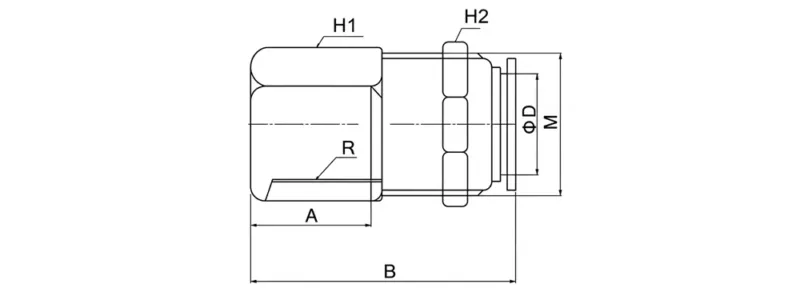

| Model | ΦD | R | A | B | H1 | H2 | M |
| PMF4-M5 | 4 | M5 | 5.5 | 24 | 14 | 14 | M12×1 |
| PMF4-01 | 4 | R1/8 | 8 | 24 | 14 | 14 | M12×1 |
| PMF4-02 | 4 | R1/4 | 9.5 | 27.5 | 15 | 14 | M12×1 |
| PMF6-M5 | 6 | M5 | 5.5 | 25.5 | 15 | 17 | M14×1 |
| PMF6-01 | 6 | R1/8 | 8 | 25.5 | 15 | 17 | M14×1 |
| PMF6-02 | 6 | R1/4 | 9.5 | 29.5 | 15 | 17 | M14×1 |
| PMF6-03 | 6 | R3/8 | 10.5 | 30 | 19 | 17 | M14×1 |
| PMF6-04 | 6 | R1/2 | 11.5 | 31 | 24 | 17 | M14×1 |
| PMF8-01 | 8 | R1/8 | 8 | 26 | 17 | 19 | M16×1 |
| PMF8-02 | 8 | R1/4 | 9.5 | 26 | 17 | 19 | M16×1 |
| PMF8-03 | 8 | R3/8 | 10.5 | 30.5 | 19 | 19 | M16×1 |
| PMF8-04 | 8 | R1/2 | 11.5 | 31.5 | 24 | 19 | M16×1 |
| PMF10-01 | 10 | R1/8 | 8 | 27.5 | 21 | 24 | M20×1 |
| PMF10-02 | 10 | R1/4 | 9.5 | 27.5 | 21 | 24 | M20×1 |
| PMF10-03 | 10 | R3/8 | 10.5 | 28 | 21 | 24 | M20×1 |
| PMF10-04 | 10 | R1/2 | 11.5 | 29 | 24 | 24 | M20×1 |
| PMF12-01 | 12 | R1/8 | 8 | 28 | 24 | 27 | M22×1 |
| PMF12-02 | 12 | R1/4 | 9.5 | 29 | 24 | 27 | M22×1 |
| PMF12-03 | 12 | R3/8 | 10.5 | 30 | 24 | 27 | M22×1 |
| PMF12-04 | 12 | R1/2 | 10.5 | 33.5 | 24 | 27 | M22×1 |
Key Features
- Bulkhead panel-mount structure
- Female threaded connection design
- Push-to-connect quick installation
- Nickel-plated brass for corrosion resistance
- Secure sealing with O-ring and locking nut
Applications
- Pneumatic control panels
- Industrial automation systems
- Air distribution systems
- Machinery equipment
- Panel-mounted pneumatic connections
Widely used in pneumatic systems requiring panel-through installation, secure threaded connection, and durable metal fittings.
Product Function
PMF fittings are designed to connect pneumatic tubing to male threaded components through a panel, enabling organized and secure pneumatic system layouts.
The bulkhead structure allows the fitting to be fixed on a panel using a locking nut, improving installation stability and system reliability
Product Structure & Size Range
- PMF4 / PMF6 / PMF8 / PMF10 / PMF12
- Tube sizes: 4mm → 16mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Bulkhead + female threaded structure
Why Choose Our Pneumatic Fittings
- Professional PMF pneumatic fitting manufacturer with full bulkhead range
- OEM / ODM customization for panel mount push to connect fitting projects
- Reliable pneumatic bulkhead connector for automation and compressed air systems
- High-quality nickel-plated brass fittings with strict QC system
- Durable panel mount fitting for long-term industrial use
- Fast delivery and global B2B supply support
