Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

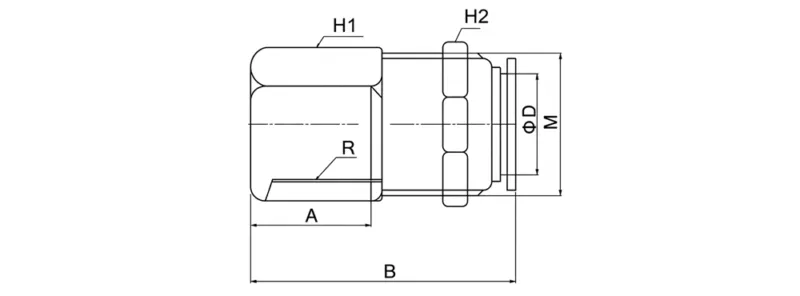

| Model | ΦD | R | A | B | H1 | H2 | M |
| PMF4-M5 | 4 | M5 | 5.5 | 24 | 14 | 14 | M12×1 |
| PMF4-01 | 4 | R1/8 | 8 | 24 | 14 | 14 | M12×1 |
| PMF4-02 | 4 | R1/4 | 9.5 | 27.5 | 15 | 14 | M12×1 |
| PMF6-M5 | 6 | M5 | 5.5 | 25.5 | 15 | 17 | M14×1 |
| PMF6-01 | 6 | R1/8 | 8 | 25.5 | 15 | 17 | M14×1 |
| PMF6-02 | 6 | R1/4 | 9.5 | 29.5 | 15 | 17 | M14×1 |
| PMF6-03 | 6 | R3/8 | 10.5 | 30 | 19 | 17 | M14×1 |
| PMF6-04 | 6 | R1/2 | 11.5 | 31 | 24 | 17 | M14×1 |
| PMF8-01 | 8 | R1/8 | 8 | 26 | 17 | 19 | M16×1 |
| PMF8-02 | 8 | R1/4 | 9.5 | 26 | 17 | 19 | M16×1 |
| PMF8-03 | 8 | R3/8 | 10.5 | 30.5 | 19 | 19 | M16×1 |
| PMF8-04 | 8 | R1/2 | 11.5 | 31.5 | 24 | 19 | M16×1 |
| PMF10-01 | 10 | R1/8 | 8 | 27.5 | 21 | 24 | M20×1 |
| PMF10-02 | 10 | R1/4 | 9.5 | 27.5 | 21 | 24 | M20×1 |
| PMF10-03 | 10 | R3/8 | 10.5 | 28 | 21 | 24 | M20×1 |
| PMF10-04 | 10 | R1/2 | 11.5 | 29 | 24 | 24 | M20×1 |
| PMF12-01 | 12 | R1/8 | 8 | 28 | 24 | 27 | M22×1 |
| PMF12-02 | 12 | R1/4 | 9.5 | 29 | 24 | 27 | M22×1 |
| PMF12-03 | 12 | R3/8 | 10.5 | 30 | 24 | 27 | M22×1 |
| PMF12-04 | 12 | R1/2 | 10.5 | 33.5 | 24 | 27 | M22×1 |
Key Features
- Push-to-connect quick installation design
- Bulkhead mounting for panel installation
- Female thread connection structure
- Leak-proof sealing with O-ring
- Durable brass and engineering plastic construction
👉 Push-to-connect fittings enable fast connection without tools while maintaining secure sealing
Applications
- Pneumatic control panels
- Industrial automation systems
- Air distribution systems
- Machinery equipment
- Robotics and assembly lines
Widely used in pneumatic systems requiring panel mounting, organized tubing routing, and reliable air-tight connections.
Product Structure & Types

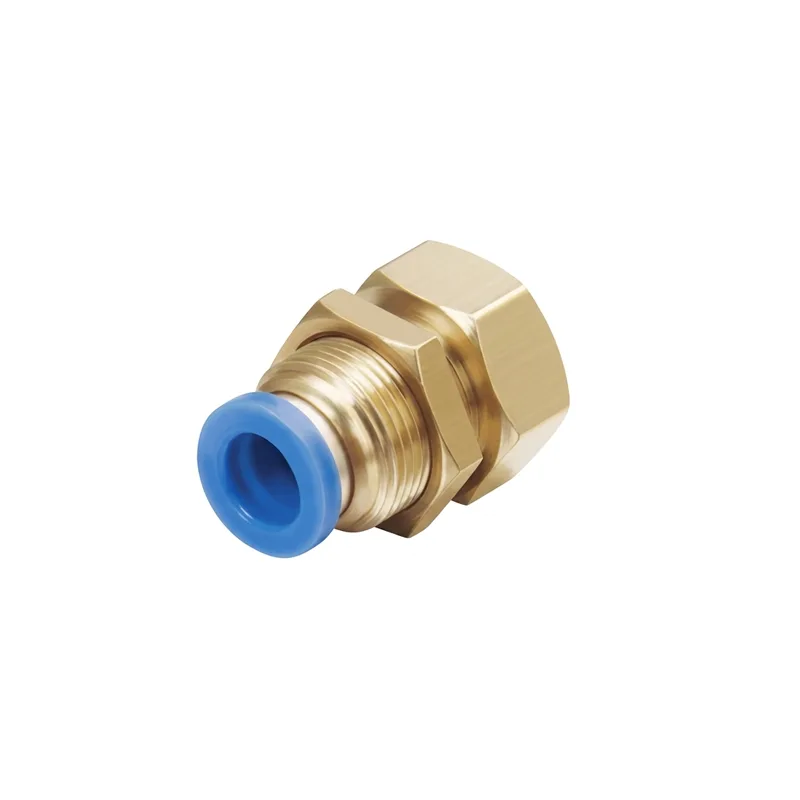

- PMF bulkhead female straight connector (tube → female thread through panel)
- Thread types: BSPT / NPT / metric
- Tube sizes: 4mm, 6mm, 8mm, 10mm, 12mm
- Variants: PMF4, PMF6, PMF8, PMF10, PMF12
👉 Bulkhead fittings are used to pass tubing through panels while maintaining secure connections
Why Choose Our Pneumatic Fittings
- Professional PMF pneumatic fitting supplier with full size range
- OEM / ODM customization for bulkhead push to connect fitting manufacturer projects
- Reliable pneumatic bulkhead connector for industrial and automation systems
- High-quality air fitting factory China with strict QC system
- Durable push-in pneumatic fitting for panel-mounted air systems
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PMF pneumatic fitting?
It is a bulkhead push-to-connect fitting used to connect pneumatic tubing through a panel.
Q2: What is a bulkhead fitting used for?
It allows tubing to pass through panels or enclosures while maintaining a sealed connection.
Q3: How does a push-to-connect fitting work?
The tube is inserted and locked by internal gripping teeth, while an O-ring ensures sealing.
Q4: What materials are used in PMF fittings?
They are typically made of nickel-plated brass and engineering plastics for durability
Q5: Can PMF fittings be customized?
Yes, OEM/ODM cus
