Specification Parameters
| Operating Fluid | Air, Vaccum, Water(no freezing) |
| Body Material | Nickel-plated brass |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Lock Claw | Stainless Steel(SUS) |
| Applicable Tubing | PU Tube, Nylon Tube |
| Model | ΦD×2 | E | P | A | R | H |
| PX4-M5 | 4 | 37 | 11 | 3.5 | M5 | 10 |
| PX4-01 | 4 | 40.5 | 11 | 7 | R1/8 | 10 |
| PX4-02 | 4 | 51.5 | 11 | 8 | R1/4 | 14 |
| PX6-M5 | 6 | 40 | 13 | 3.5 | M5 | 12 |
| PX6-01 | 6 | 43.5 | 13 | 7 | R1/8 | 12 |
| PX6-02 | 6 | 44.5 | 13 | 8 | R1/4 | 14 |
| PX6-03 | 6 | 45.5 | 13 | 9 | R3/8 | 17 |
| PX6-04 | 6 | 47 | 13 | 10 | R1/2 | 21 |
| PX8-01 | 8 | 47.5 | 15 | 7 | R1/8 | 14 |
| PX8-02 | 8 | 48.5 | 15 | 8 | R1/4 | 14 |
| PX8-03 | 8 | 49.5 | 15 | 9 | R3/8 | 17 |
| PX8-04 | 8 | 51 | 15 | 10 | R1/2 | 21 |
| PX10-01 | 10 | 51.5 | 18.5 | 7 | R1/8 | 17 |
| PX10-02 | 10 | 52.5 | 18.5 | 8 | R1/4 | 17 |
| PX10-03 | 10 | 53.5 | 18.5 | 9 | R3/8 | 17 |
| PX10-04 | 10 | 55 | 18.5 | 10 | R1/2 | 21 |
| PX12-01 | 12 | 54 | 21 | 7 | R1/8 | 19 |
| PX12-02 | 12 | 55 | 21 | 8 | R1/4 | 19 |
| PX12-03 | 12 | 56 | 21 | 9 | R3/8 | 19 |
| PX12-04 | 12 | 57.5 | 21 | 10 | R1/2 | 21 |
| PX14-02 | 14 | 60.5 | 23 | 8 | R1/4 | 22 |
| PX14-03 | 14 | 61.5 | 23 | 9 | R3/8 | 22 |
| PX14-04 | 14 | 62.5 | 23 | 10 | R1/2 | 22 |
| PX16-02 | 16 | 64.5 | 25.5 | 8 | R1/4 | 24 |
| PX16-03 | 16 | 65.5 | 25.5 | 9 | R3/8 | 24 |
| PX16-04 | 16 | 66.5 | 25.5 | 10 | R1/2 | 24 |
Key Features
- Y-type angled airflow distribution design
- Male threaded port for secure installation
- Nickel-plated brass for corrosion resistance
- Reduced airflow resistance vs T fittings
- Push-to-connect quick installation
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Control valves and cylinders
- High-efficiency air distribution systems
Widely used in pneumatic systems requiring smooth airflow branching, reduced turbulence, and durable metal fittings.
Product Function

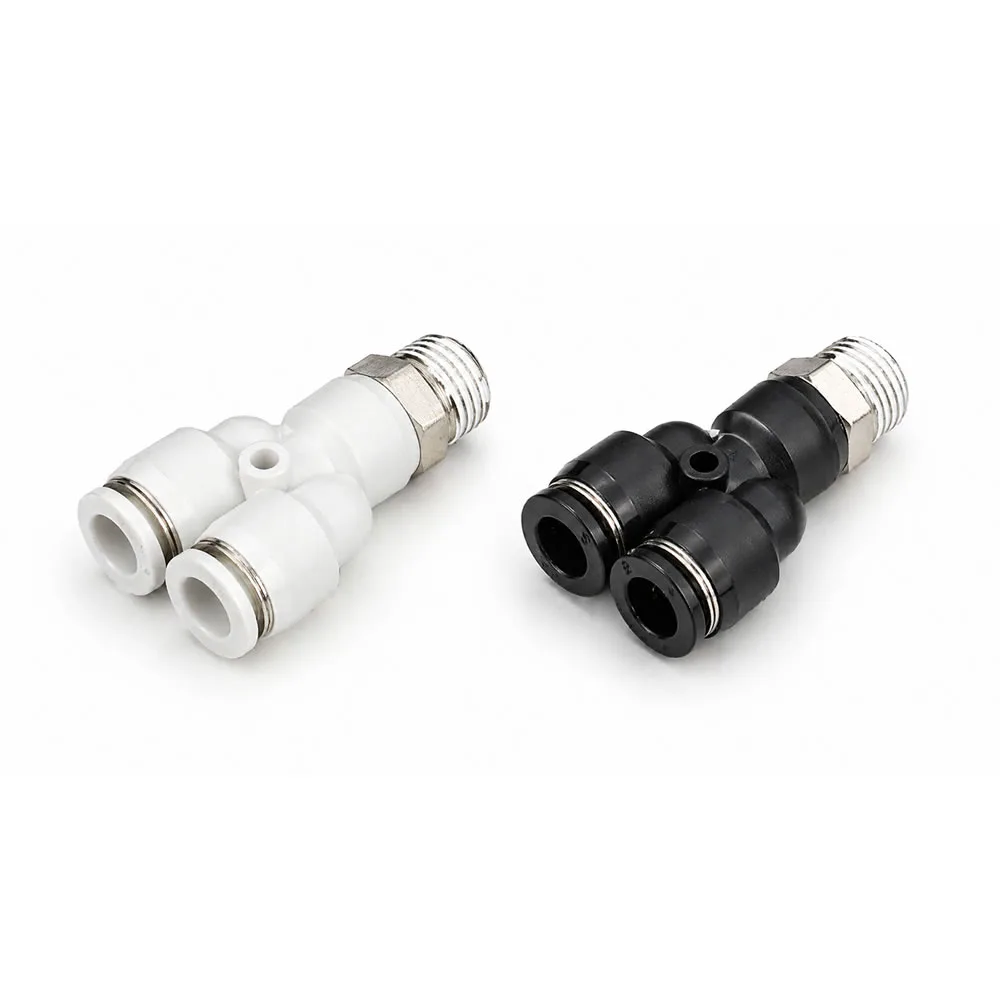

PX fittings are designed to split airflow into two angled directions while connecting to threaded equipment, improving airflow efficiency and reducing pressure loss.
Compared to standard tee fittings (PB), Y-type fittings provide better flow dynamics and smoother air distribution, especially in high-speed pneumatic systems.
Product Structure & Size Range
- PX4-M5 / PX6-01 / PX8-02 / PX10-03 / PX12-04
- Tube sizes: 4mm → 16mm
- Thread sizes: M5, R1/8, R1/4, R3/8, R1/2
- Male threaded Y-structure
Why Choose Our Pneumatic Fittings
- Professional PX pneumatic fitting manufacturer with full size range
- OEM / ODM customization for nickel plated brass Y fittings
- Reliable pneumatic Y connector for efficient airflow systems
- High-quality metal fittings with corrosion resistance and durability
- Durable push-to-connect fittings for industrial applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PX pneumatic fitting?
It is a nickel-plated brass Y type push-to-connect fitting used for angled airflow branching.
Q2: What is the advantage of a Y fitting over a T fitting?
Y fittings provide smoother airflow and lower pressure loss compared to T fittings.
Q3: Why use nickel-plated brass fittings?
They offer corrosion resistance, high strength, and longer service life.
Q4: What tubing is compatible with PX fittings?
PX fittings are suitable for PU tube and nylon tube.
Q5: Can PX fittings be customized?
Yes, OEM/ODM customization is available for size, thread type, and materials.
