Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

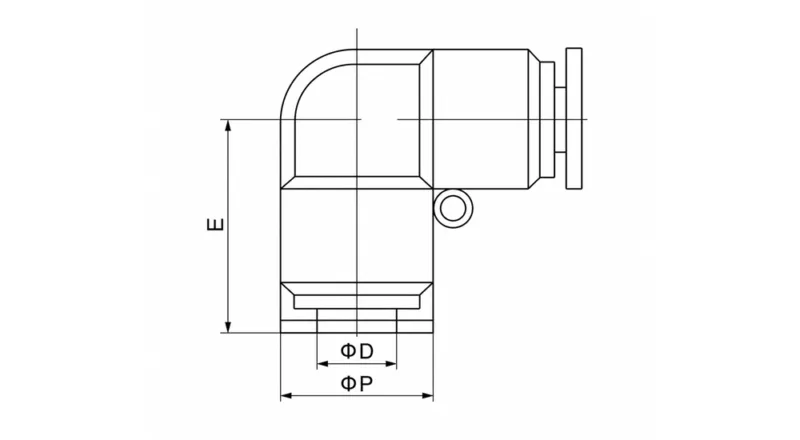

| Model | ØD × 2 | E | ØP × 2 |
| PV-4 | 4 | 18 | 11 |
| PV-6 | 6 | 20 | 13 |
| PV-8 | 8 | 22 | 15 |
| PV-10 | 10 | 26 | 18.5 |
| PV-12 | 12 | 28 | 21 |
| PV-14 | 14 | 30.5 | 23 |
| PV-16 | 16 | 33 | 25.5 |
Key Features
- 90° elbow union (tube-to-tube) design
- Push-to-connect quick installation
- Equal diameter connection on both ends
- Leak-proof sealing with O-ring
- Compact structure for space-saving routing
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Robotics systems
- Packaging and assembly equipment
Widely used in pneumatic systems requiring direction change, compact piping layout, and efficient airflow routing.
Product Function

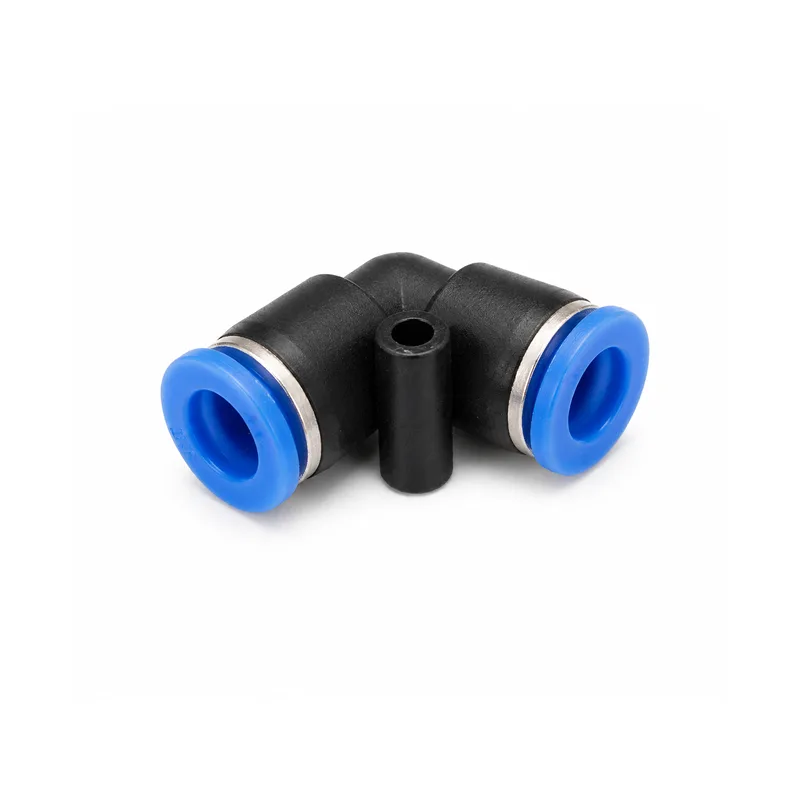

PV fittings are designed to connect two pneumatic tubes of equal size while changing direction by 90°, reducing the need for multiple fittings and simplifying pipeline design.
Simple structure comparison:
- PU = straight union (tube ↔ tube)
- PV = elbow union (tube ↔ tube 90°)
- PC = tube ↔ thread
- PL = elbow with thread
Product Structure & Size Range
- PV4 / PV6 / PV8 / PV10 / PV12 / PV14 / PV16
- Tube sizes: 4mm → 16mm
- Equal union structure
- 90° elbow connection
Why Choose Our Pneumatic Fittings
- Professional PV pneumatic fitting manufacturer with full size range
- OEM / ODM customization for 90 degree elbow push to connect fitting projects
- Reliable pneumatic elbow connector for automation and compressed air systems
- High-quality air fitting factory China with strict QC system
- Durable push-in pneumatic fitting for compact piping layouts
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PV pneumatic fitting?
It is a 90-degree elbow union push-to-connect fitting used to connect two tubes in pneumatic systems.
Q2: What is the function of an elbow fitting?
It allows tubing to change direction, typically at a 90° angle, improving layout efficiency.
Q3: What tubing is compatible with PV fittings?
They are compatible with PU tube and nylon tube.
Q4: How does a push-to-connect fitting work?
It uses internal gripping teeth to hold the tube and an O-ring to ensure sealing.
Q5: Can PV fittings be customized?
Yes, OEM/ODM customization is available for size, material, and design.
