What is 2 Way 3 Port and 5 Port Solenoid Valve?
A 2 way 3 port solenoid valve (2/3 valve) has two positions and three ports, typically used to control single-acting cylinders or simple ON/OFF air flow.
A 5 port solenoid valve (5/2 or 5/3 valve) has five ports and is designed to control double-acting cylinders by switching airflow direction between two outputs.
What is 2 Way 3 Port and 5 Port Solenoid Valve?
A 2 way 3 port solenoid valve (2/3 valve) has two positions and three ports, typically used to control single-acting cylinders or simple ON/OFF air flow.
A 5 port solenoid valve (5/2 or 5/3 valve) has five ports and is designed to control double-acting cylinders by switching airflow direction between two outputs.

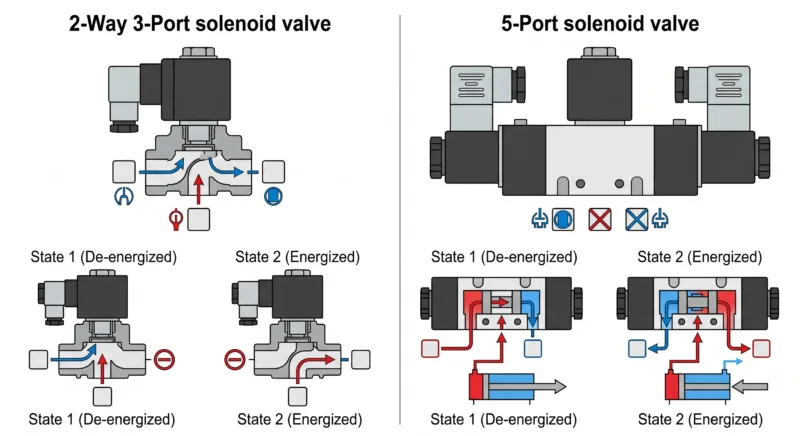

2 Way 3 Port vs 5 Port Solenoid Valve
| Feature | 2 Way 3 Port Valve | 5 Port Valve |
|---|---|---|
| Port Number | 3 ports | 5 ports |
| Positions | 2 positions | 2 or 3 positions |
| Function | ON/OFF or exhaust control | Directional control |
| Cylinder Type | Single-acting cylinder | Double-acting cylinder |
| Airflow Control | Basic | Advanced switching |
| System Complexity | Simple systems | Complex automation systems |
Applications
- Single-acting cylinder systems
- Double-acting cylinder systems
- Industrial automation equipment
- Pneumatic machinery
- Manufacturing production lines
Widely used in pneumatic control systems where different valve structures are required for airflow switching, actuator control, and automation efficiency.
Key Differences Explained
2 Way 3 Port Valve
- Simple structure and easy control
- Used for basic air supply and exhaust
- Ideal for single-direction actuation
5 Port Valve
- Controls airflow in two directions
- Enables forward and reverse motion
- Suitable for double-acting cylinders
- Essential for automation systems
Why Choosing the Right Valve Matters
- Selecting the correct 2 way 3 port solenoid valve for simple pneumatic control systems improves efficiency
- Using a 5 port solenoid valve for double acting cylinders ensures precise motion control
- Proper selection reduces air consumption and improves system stability
- A reliable pneumatic directional valve supplier ensures long-term industrial performance
- OEM / ODM customization allows better system integration and cost optimization
