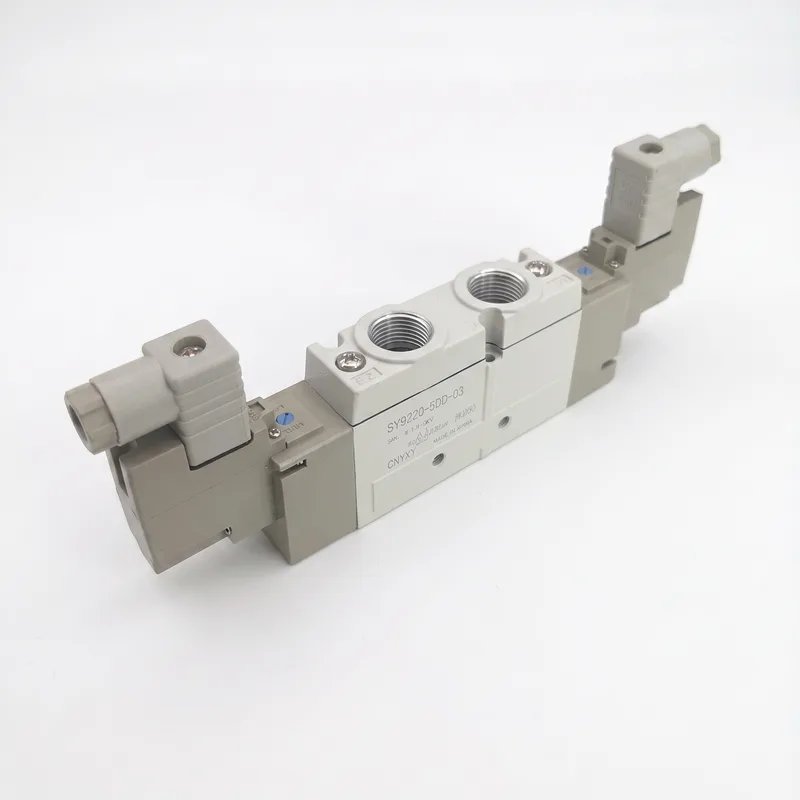

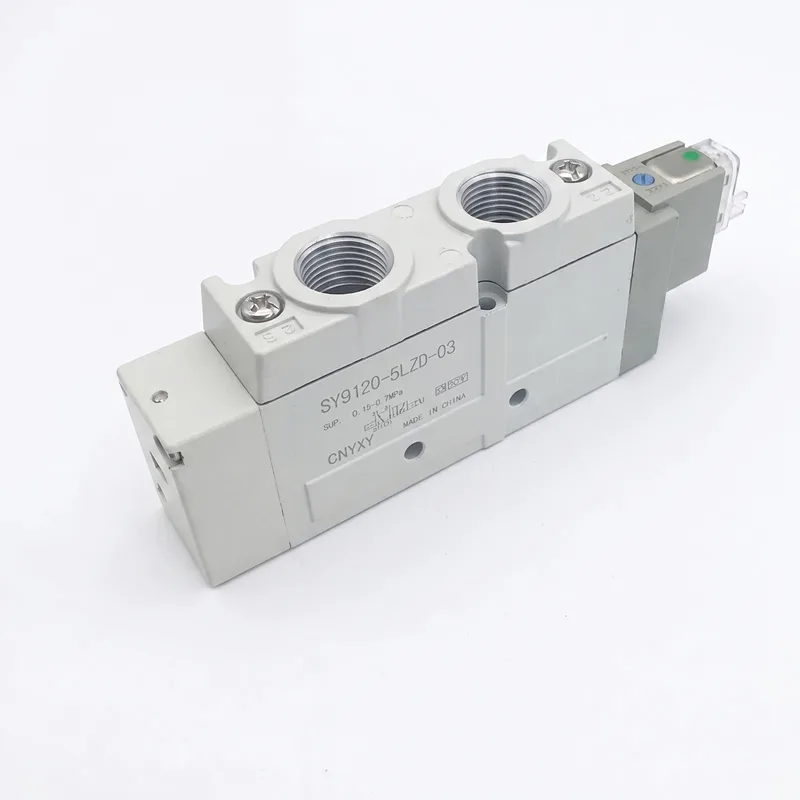

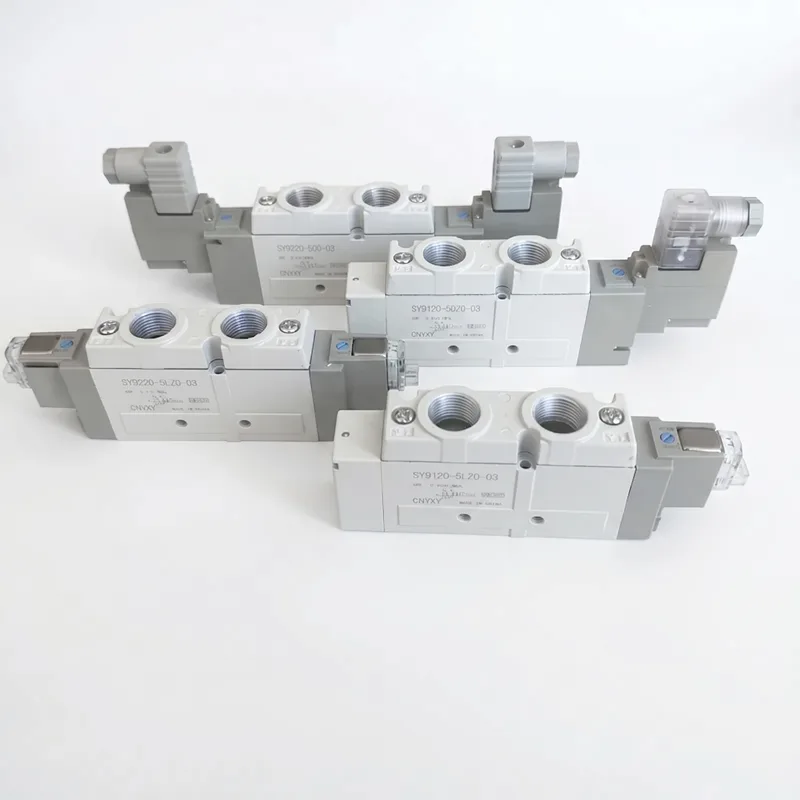

Specification Parameters
| SPECIFICATIONS | |||||
| Model Series | SY3000 | SY5000 | SY7000 | SY9000 | |
| Using Fluids | Air | ||||
| Internally Piloted Type — Operating Pressure Range (MPa) | 2-Position, Single Solenoid | 0.15~0.7 | |||
| 2-Position, Double Solenoid | 0.1~0.7 | ||||
| 3-Position | 0.2~0.7 | ||||
| Ambient Temperature and Medium Temperature (°C) | -10 to 50 ℃ (non-freezing) | ||||
| Maximum Operating Frequency (Hz) | 2-Position (Single Solenoid / Double Solenoid) | 10 | 5 | 5 | 5 |
| 3-Position | 3 | 3 | 3 | 3 | |
| Manual Override Type | Non-locking push-button type; Screwdriver-actuated push-and-turn locking type; Manual push-and-turn locking type | ||||
| Pilot Valve Exhaust Method | Centralized exhaust for main and pilot valves | ||||
| Lubrication | Not required | ||||
| Mounting Method | Free | ||||
| Note) Shock / Vibration Resistance (m/s²) | 150 / 30 | ||||
| Protective Structure | Dust-proof (*IP65 for DIN-style socket and M8 connector types) | ||||
| According to IEC60529 | |||||
| Note) Shock Resistance: Tested using a drop-type shock tester, with one test conducted along the axial direction of the main spool and armature, and another perpendicular to it, under both energized and de-energized conditions; no malfunctions occurred (values represent initial performance). Vibration Resistance: Vibration tests were conducted along the axial direction of the main spool and armature, as well as perpendicular to it, across a frequency range of 45 to 2000 Hz under both energized and de-energized conditions; no malfunctions occurred (values represent initial performance). | |||||
2 Way 3 Port vs 5 Port Solenoid Valve
| Feature | 2 Way 3 Port Valve | 5 Port Valve |
|---|---|---|
| Port Number | 3 ports | 5 ports |
| Positions | 2 positions | 2 or 3 positions |
| Function | ON/OFF or exhaust control | Directional control |
| Cylinder Type | Single-acting cylinder | Double-acting cylinder |
| Airflow Control | Basic | Advanced switching |
| System Complexity | Simple systems | Complex automation systems |
Key Features
- 4/5 port directional control valve
- Fast response switching performance
- Compact and lightweight structure
- Stable airflow control
- Suitable for industrial automation systems
Applications
- Pneumatic control systems
- Industrial automation equipment
- Air compressor systems
- Packaging machinery
- Manufacturing production lines
Widely used in pneumatic systems requiring fast switching, precise air flow control, and reliable operation in automated industrial environments.
Why Choose Our Solenoid Valve
- Professional SY9120-5DZD-03 solenoid valve supplier with stable production capacity
- OEM / ODM customization available for pneumatic directional valve systems
- High-performance valve for compressed air control applications
- Reliable industrial pneumatic valve manufacturer for automation equipment
- Durable aluminum structure for long-term industrial operation
- Fast delivery and competitive pricing for global B2B customers
FAQ

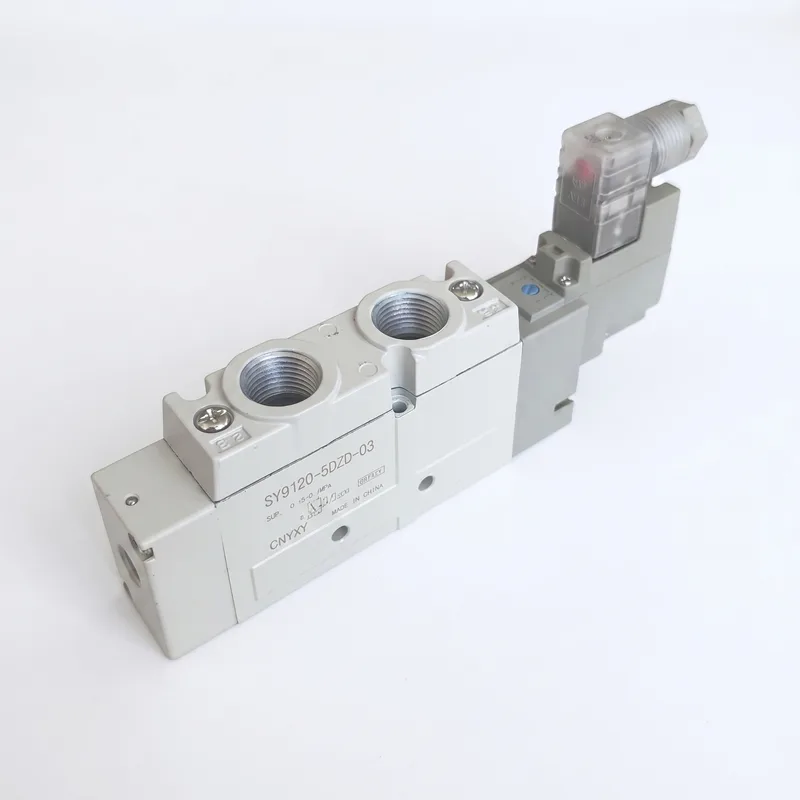

Q1: What is a SY9120-5DZD-03 solenoid valve?
It is a pneumatic directional control valve used to control the flow direction of compressed air in automation systems.
Q2: What is a 5 port solenoid valve used for?
It is used to control double-acting cylinders and pneumatic actuators by switching airflow paths.
Q3: What is the working pressure range?
Typically from 0.1 to 0.7 MPa depending on system configuration.
Q4: What voltage options are available?
Common options include DC12V, DC24V, AC110V, and AC220V.
Q5: Can this valve be customized?
Yes, OEM/ODM customization is available for voltage, connectors, and specifications.
