Specification Parameters
| Model Series | SY3000 | SY5000 | SY7000 | SY9000 | |
| Using Fluids | Air | ||||
| Internally Piloted Type — Operating Pressure Range (MPa) | 2-Position, Single Solenoid | 0.15~0.7 | |||
| 2-Position, Double Solenoid | 0.1~0.7 | ||||
| 3-Position | 0.2~0.7 | ||||
| Ambient Temperature and Medium Temperature (°C) | -10 to 50 ℃ (non-freezing) | ||||
| Maximum Operating Frequency (Hz) | 2-Position (Single Solenoid / Double Solenoid) | 10 | 5 | 5 | 5 |
| 3-Position | 3 | 3 | 3 | 3 | |
| Manual Override Type | Non-locking push-button type; Screwdriver-actuated push-and-turn locking type; Manual push-and-turn locking type | ||||
| Pilot Valve Exhaust Method | Centralized exhaust for main and pilot valves | ||||
| Lubrication | Not required | ||||
| Mounting Method | Free | ||||
| Note) Shock / Vibration Resistance (m/s²) | 150 / 30 | ||||
| Protective Structure | Dust-proof (*IP65 for DIN-style socket and M8 connector types) | ||||
| According to IEC60529 | |||||
| Note) Shock Resistance: Tested using a drop-type shock tester, with one test conducted along the axial direction of the main spool and armature, and another perpendicular to it, under both energized and de-energized conditions; no malfunctions occurred (values represent initial performance). Vibration Resistance: Vibration tests were conducted along the axial direction of the main spool and armature, as well as perpendicular to it, across a frequency range of 45 to 2000 Hz under both energized and de-energized conditions; no malfunctions occurred (values represent initial performance). | |||||
Key Features
- 5/2 way directional control valve
- Single solenoid pilot operated design
- Fast response time (≤32 ms)
- Low power consumption design
- Compact structure with high flow capacity
Applications
- Pneumatic automation systems
- Industrial machinery
- CNC equipment
- Packaging machines
- Air control systems
Widely used in industrial automation systems requiring precise directional control of compressed air for cylinders and actuators.
Why Choose Our Pneumatic Valve
- Professional SY7120-5LZD-02 solenoid valve supplier with stable production capacity
- OEM / ODM customization available for SMC type solenoid valve replacement projects
- Reliable 5/2 pneumatic valve for cylinder control systems and automation equipment
- High-quality pneumatic valve manufacturer in China with strict quality control
- High-flow air control solenoid valve for industrial pneumatic systems
- Fast delivery and global supply support
FAQ

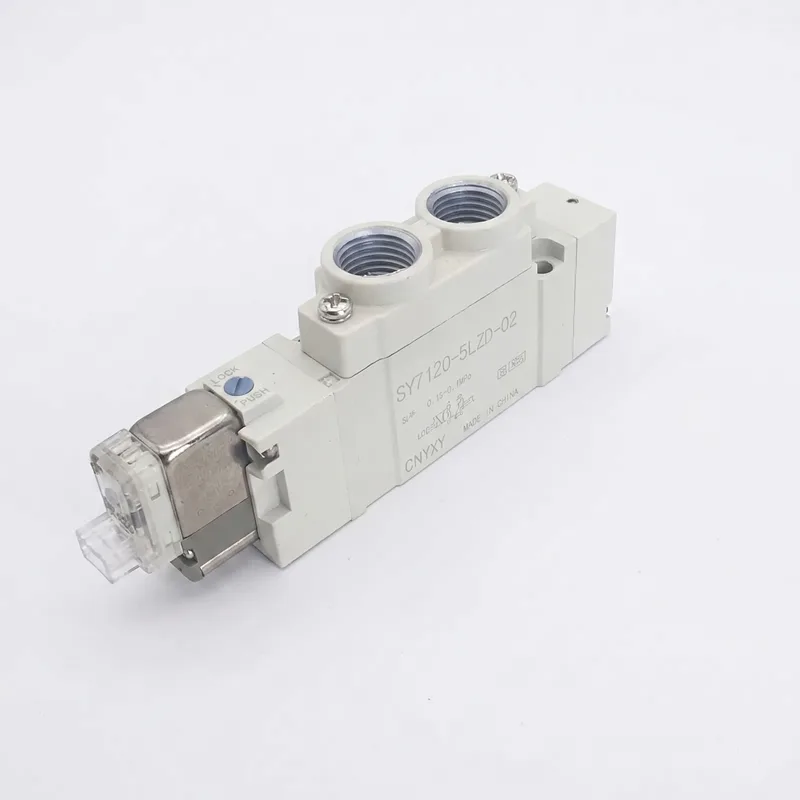

Q1: What is a SY7120-5LZD-02 solenoid valve?
It is a 5/2 way pneumatic solenoid valve used for controlling the direction of compressed air in automation systems.
Q2: What does 5/2 way mean in a solenoid valve?
It means the valve has 5 ports and 2 positions, used to control double-acting cylinders.
Q3: What is the working medium?
The valve is designed for compressed air applications.
Q4: What industries use this valve?
It is widely used in automation, packaging, CNC machinery, and industrial systems.
Q5: Does this valve support OEM customization?
Yes, OEM/ODM services are available including voltage, connector type, and branding.
