Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

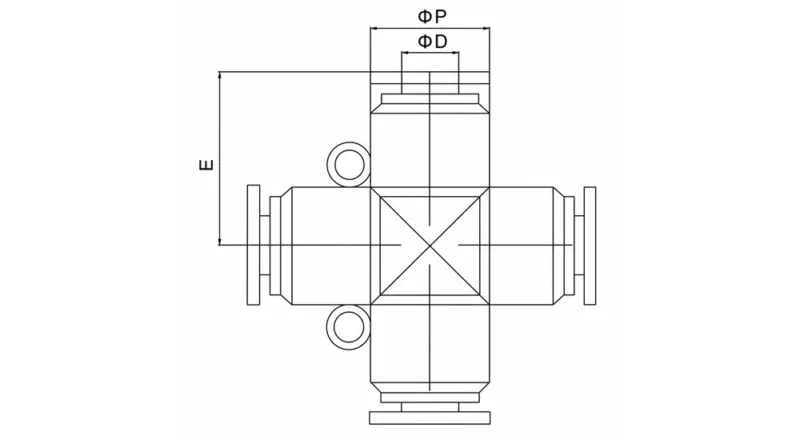

| Model | ØD × 4 | E | ØP × 4 |
| PZA-4 | 4 | 18 | 11 |
| PZA-6 | 6 | 20 | 13 |
| PZA-8 | 8 | 22 | 15 |
| PZA-10 | 10 | 26 | 18.5 |
| PZA-12 | 12 | 28 | 21 |
Key Features
- Cross type four-way air distribution design
- Push-to-connect quick installation
- Multi-direction airflow routing (4-way)
- Suitable for PU tube and nylon tube
- Compact structure for clean piping layout
Applications
- Pneumatic automation systems
- Air compressor pipelines
- Industrial machinery
- Robotics systems
- Packaging and assembly equipment
Widely used in pneumatic systems requiring multi-direction airflow distribution, compact piping layout, and efficient air routing.
Product Function

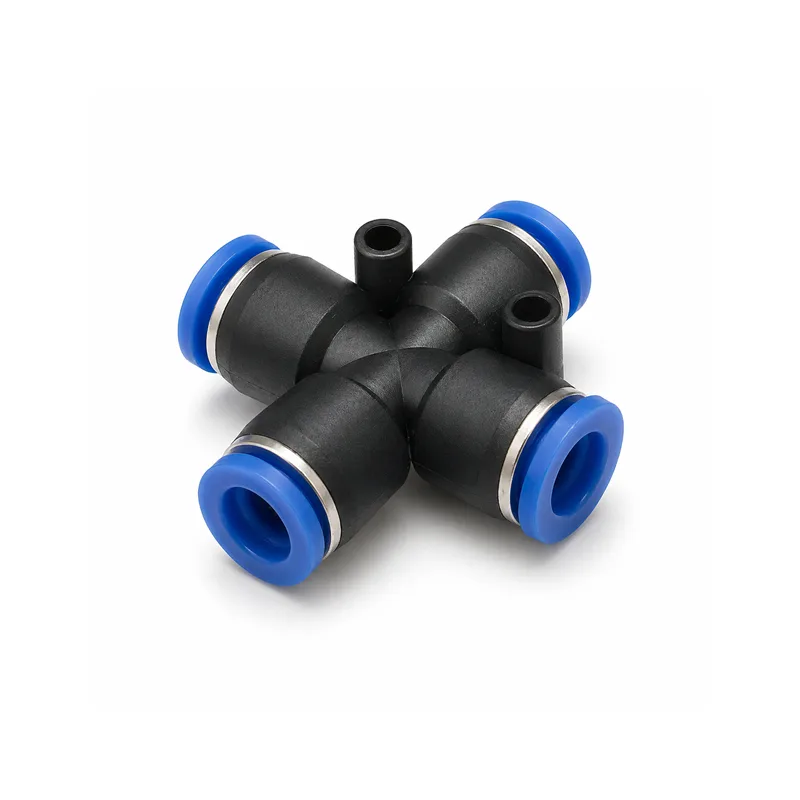

PZA fittings are designed to connect four pneumatic tube directions in one compact structure, allowing efficient air distribution in complex pneumatic circuits.
Simple structure comparison:
- PU = straight union
- PE = T type tee (3-way)
- PY = Y type tee (3-way angled)
- PZA = cross fitting (4-way)
Product Structure & Size Range
- PZA4 / PZA6 / PZA8 / PZA10 / PZA12
- Tube sizes: 4mm → 12mm
- Equal cross branch structure
- Four-way tube connection
