Specifications
| Parameter | Description |
|---|---|
| Product Name | Twin Rod Pneumatic Cylinder |
| Series | TN Series |
| Cylinder Type | Dual Rod Guided Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Twin Rod Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.9 MPa |
| Body Material | Aluminum Alloy |
| Non-Rotating Accuracy | High Stability Guided Motion |
| Cushion Type | Rubber Cushion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac TN Series |
| Applications | Transfer / Positioning / Stopping Systems |

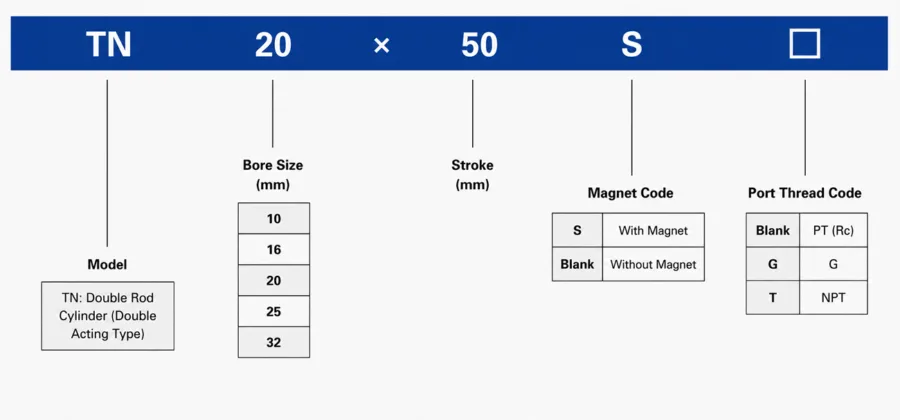

How to order
Product Features
Twin Rod Guided Structure
The TN Series uses a dual rod structure to provide stable non-rotating linear motion for automation equipment.
Compact Integrated Design
The compact body design helps reduce installation space while maintaining reliable guided movement.
Stable Linear Motion Performance
Provides smooth and repeatable forward and backward movement for transfer, stopping, and positioning applications.
Improved Side-Load Resistance
The twin rod structure helps improve movement stability during side-load and offset-load operation.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy housing for reliable industrial automation use.
Suitable Replacement for Airtac TN Series
Designed for guided pneumatic cylinder applications requiring replacement for Airtac TN Series models.
Easy Automation Equipment Integration
ISO standard mounting supports practical installation into fixtures, transfer systems, assembly machinery, and automated production equipment.
Applications
Positioning Systems
Used for stable guided positioning tasks in industrial automation equipment.
Transfer Equipment
Suitable for workpiece transfer and sliding movement in automated production lines.
Stopping and Pushing Applications
Applied in stopping, pressing, and pushing mechanisms requiring guided motion stability.
Assembly Automation
Used in assembly machinery requiring compact guided linear movement.
Packaging Machinery
Suitable for packaging and material handling systems requiring non-rotating pneumatic motion.
Why Choose HOMIPNEU
- Stable twin rod cylinder manufacturing quality
- Compact structure suitable for automation equipment
- Dual rod design for stable non-rotating motion
- Smooth and repeatable guided movement
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the TN Series interchangeable with Airtac TN Series?
Yes, the TN twin rod pneumatic cylinder is designed to be interchangeable with Airtac TN Series in many industrial automation applications.
What is the TN twin rod cylinder used for?
It is commonly used for positioning, transfer, stopping, pushing, and guided linear motion applications in automation systems.
What type of structure does the TN Series use?
The TN Series uses a dual rod guided structure for stable non-rotating linear movement.
Is the TN Series suitable for compact machinery?
Yes, the compact integrated structure is suitable for machinery with limited installation space.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for TN Series twin rod pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
