Specifications
| Parameter | Description |
|---|---|
| Product Name | Guided Pneumatic Cylinder |
| Series | MGGMB Series |
| Cylinder Type | External Guide Rod Cylinder |
| Bearing Type | Slide Bearing |
| Motion Type | Guided Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~1.0 MPa |
| Body Material | Aluminum Alloy |
| Guide Structure | External Dual Guide Rod Structure |
| Cushion Type | Built-in Shock Absorbers |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MGGMB Series |
| Applications | Lifting / Stopping / Transfer / Positioning Systems |

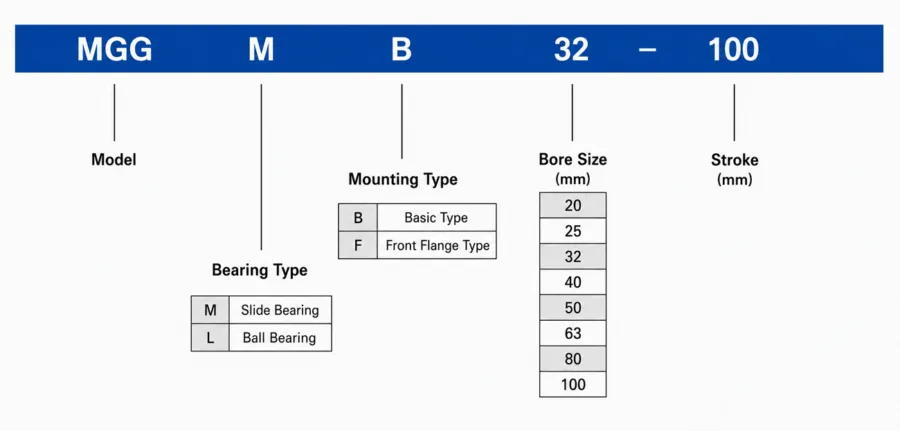

How to order
Product Features
External Guide Rod Structure
The MGGMB Series integrates a pneumatic cylinder with external guide rods for stable guided linear movement and improved side-load resistance.
Slide Bearing Design
The slide bearing structure provides stable support for stopping, pushing, and lifting applications requiring reliable lateral stability.
Compact Guided Motion System
Combines guided motion and pneumatic actuation in a compact structure suitable for automation equipment.
Built-in Shock Absorbers
Integrated shock absorbers help reduce impact at stroke ends and improve operating stability during repeated cycles.
High Non-Rotating Accuracy
The dual guide rod structure helps maintain accurate linear movement and minimizes rotational deviation during operation.
Suitable Replacement for SMC MGGMB Series
Designed for guided pneumatic cylinder applications requiring replacement for SMC MGGMB Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into transfer systems, lifting units, fixtures, and industrial automation machinery.
Applications
Material Handling Systems
Used for lifting, stopping, pushing, and transfer applications in industrial automation lines.
Positioning Equipment
Suitable for guided linear positioning systems requiring stable non-rotating movement.
Assembly Automation
Applied in assembly machinery for pressing, alignment, and controlled transfer operations.
Packaging Machinery
Used in packaging systems requiring stable guided pneumatic motion.
Industrial Transfer Units
Suitable for automated transfer mechanisms requiring side-load resistance and guided motion stability.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- External guide rod structure for improved load stability
- Built-in shock absorber design for smoother operation
- Compact body suitable for automation equipment integration
- ISO standard mounting for easier machinery installation
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MGGMB Series interchangeable with SMC MGGMB Series?
Yes, the MGGMB Series guided pneumatic cylinder is designed to be interchangeable with SMC MGGMB Series in many industrial automation applications.
What is the MGGMB guided cylinder used for?
It is commonly used for lifting, stopping, pushing, transfer, and positioning operations in automation equipment.
What type of guide structure does the MGGMB Series use?
The MGGMB Series uses an external dual guide rod structure with slide bearings for stable guided linear movement.
Does the cylinder include shock absorbers?
Yes, built-in shock absorbers are integrated to help reduce impact during repeated operation cycles.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting structures, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MGGMB Series guided pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
