Specifications
| Parameter | Description |
|---|---|

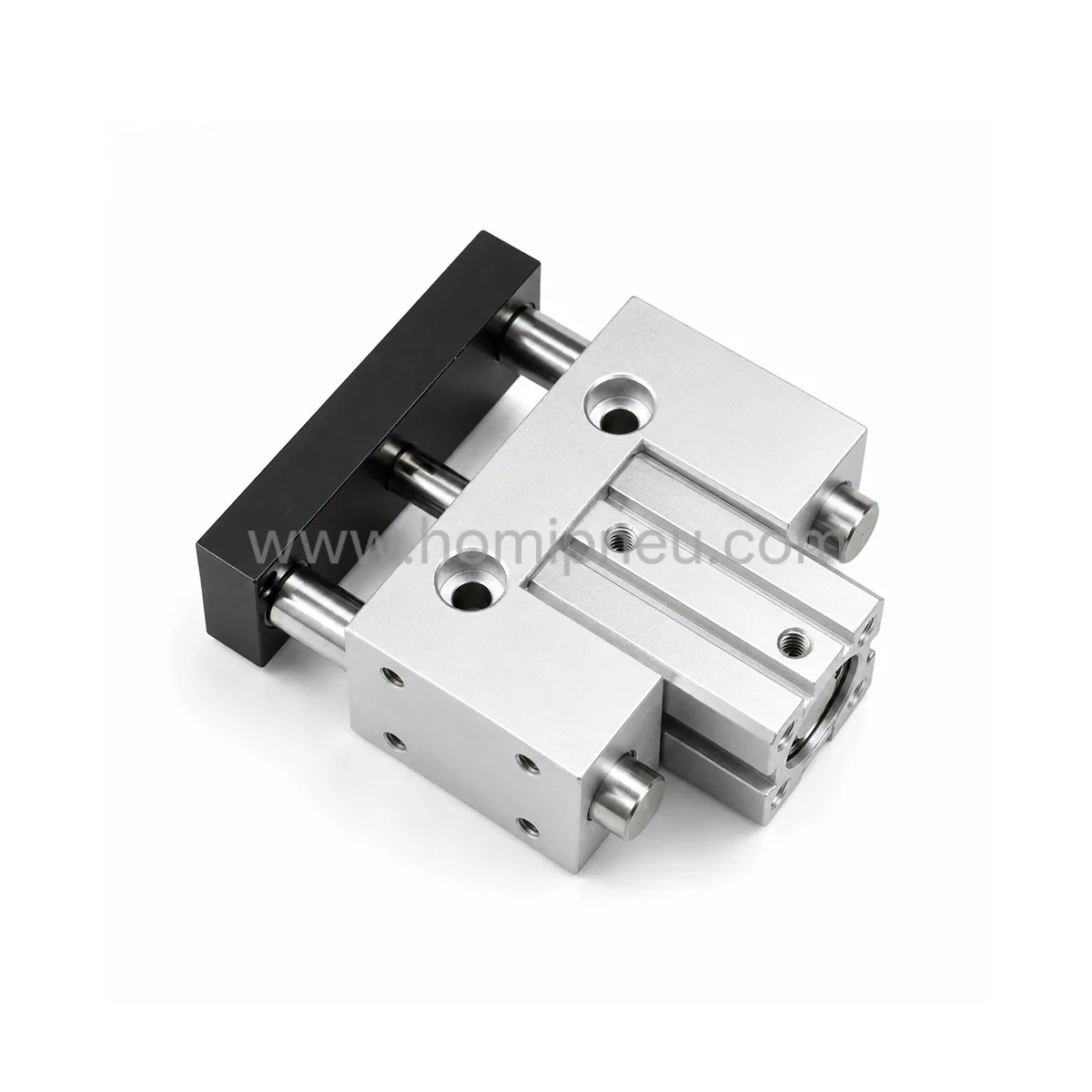

| Product Name | Guided Pneumatic Cylinder |
| Series | TCB Series |
| Cylinder Type | Guided Linear Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Dual Guide Rod Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Bearing Type | Guide Bearing Structure |
| Mounting Type | ISO Standard Mounting |
| Applications | Lifting / Pushing / Transfer / Positioning Systems |

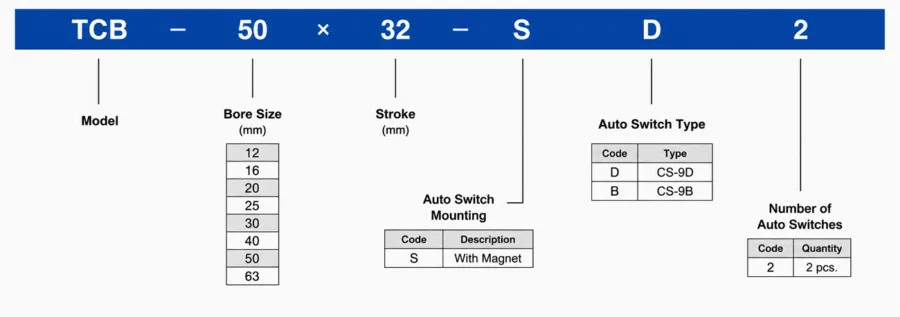

How to order
Product Features
Compact Guided Cylinder Structure
The TCB Series integrates pneumatic actuation and guide rod support into a compact body for stable guided motion.
Dual Guide Rod Design
The dual guide rod structure helps improve movement stability and reduce rotational deviation during operation.
Stable Linear Motion Performance
Provides smooth and repeatable guided movement for industrial automation applications.
Compact Installation Design
The compact body structure helps reduce installation space in automation equipment and fixtures.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy housing for reliable industrial automation operation.
Reliable Guided Motion Support
Suitable for pushing, lifting, positioning, and transfer applications requiring guided linear movement.
Easy Equipment Integration
ISO standard mounting supports practical installation into machinery, fixtures, transfer systems, and automated production equipment.
Applications
Transfer Systems
Used for guided workpiece movement in automated production lines.
Positioning Equipment
Suitable for positioning, alignment, and stopping applications in automation systems.
Assembly Machinery
Applied in assembly automation equipment requiring stable guided linear motion.
Packaging Equipment
Used in packaging machinery for pushing, lifting, and transfer operations.
Industrial Automation Systems
Suitable for guided motion control in fixtures, robotic systems, and handling equipment.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- Compact body suitable for automation equipment
- Dual guide rod structure for stable motion
- Smooth and repeatable guided linear movement
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the TCB guided pneumatic cylinder used for?
It is commonly used for lifting, pushing, transfer, positioning, and guided linear motion applications in automation equipment.
What type of guide structure does the TCB Series use?
The TCB Series uses a dual guide rod structure for stable non-rotating linear movement.
Is the TCB Series suitable for compact machinery?
Yes, the compact structure is suitable for equipment with limited installation space.
What working pressure range is supported?
The typical operating pressure range is approximately 0.15~0.7 MPa depending on application requirements.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for TCB Series guided pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
