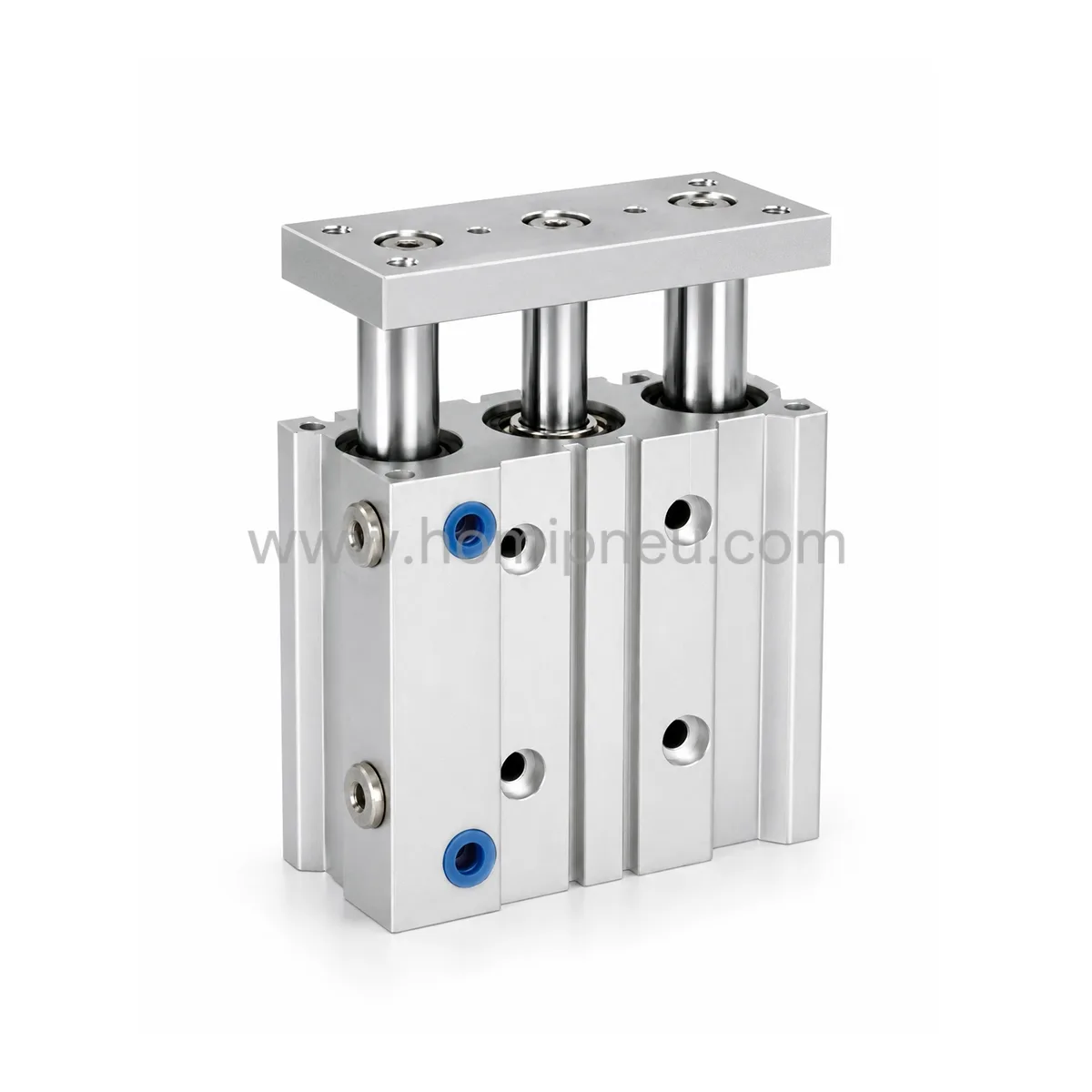

Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact Guide Cylinder |
| Series | MGPM Series |
| Alternative Model | TCM Series |
| Cylinder Type | Guided Pneumatic Cylinder |
| Bearing Type | Slide Bearing |
| Motion Type | Guided Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Guide Structure | Dual Guide Rod Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MGPM Series / Airtac TCM Series |
| Applications | Lifting / Pushing / Transfer / Positioning Systems |

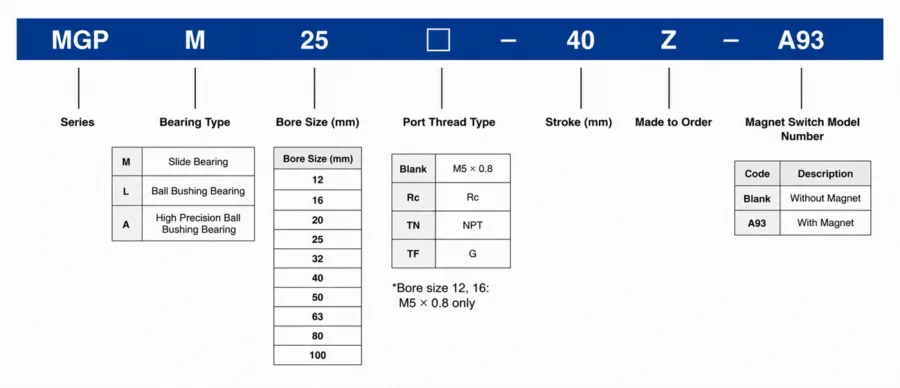

How to order
Product Features
Compact Guided Cylinder Structure
The MGPM Series integrates a pneumatic cylinder and guide mechanism into a compact body for stable linear motion in automation equipment.
Slide Bearing Guide Design
The slide bearing structure provides stable support for applications requiring resistance to side load and repeated positioning movement.
Dual Guide Rod Support
Two guide rods help reduce rotation and improve movement stability during lifting, pushing, and transfer operations.
Space-Saving Body Design
The compact structure is suitable for machinery layouts where installation space is limited.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy housing for reliable use in continuous industrial automation environments.
Suitable Replacement for SMC MGPM Series and Airtac TCM Series
Designed for guided pneumatic cylinder applications requiring replacement for SMC MGPM Series and Airtac TCM Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into fixtures, transfer units, lifting mechanisms, and automated production equipment.
Applications
Lifting and Positioning Systems
Used for stable vertical movement, lifting, and positioning in automated machinery.
Transfer Equipment
Suitable for guided workpiece transfer in production lines and handling systems.
Pushing and Stopping Applications
Applied in pushing, stopping, and locating mechanisms where guided linear motion is required.
Assembly Automation
Used in assembly equipment for positioning, pressing support, and controlled movement.
Packaging and Handling Machinery
Suitable for compact pneumatic motion control in packaging, feeding, and sorting systems.
Why Choose HOMIPNEU
- Stable compact guide cylinder manufacturing quality
- Dual guide rod structure for reliable guided motion
- Slide bearing design suitable for side-load applications
- Compact body for limited installation space
- ISO standard mounting for easier machinery integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
