Specifications
| Parameter | Description |
|---|---|

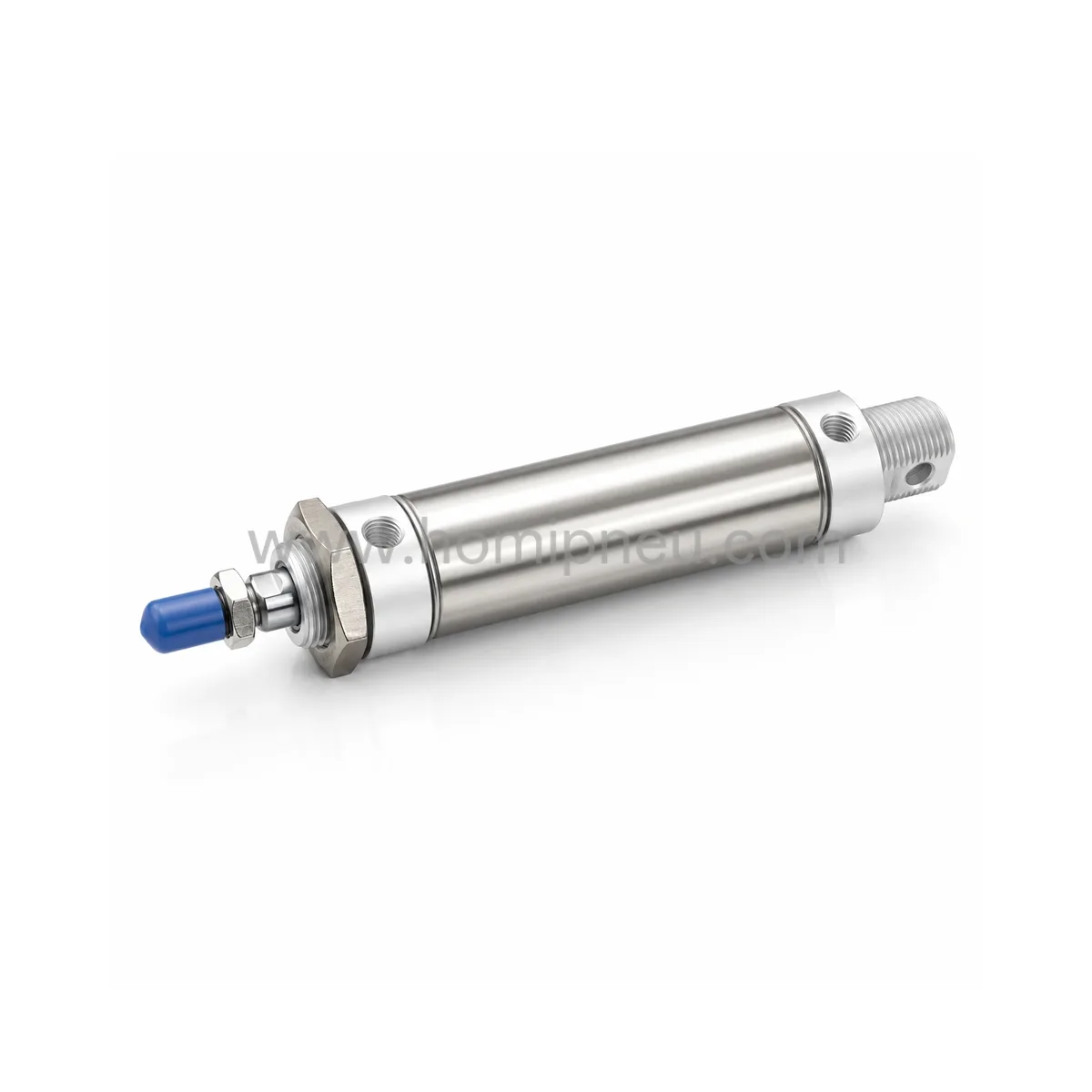

| Product Name | Pen Type Pneumatic Cylinder |
| Series | TAB Series |
| Cylinder Type | Mini Pen Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Stainless Steel Tube |
| Structure Type | Pen Type Compact Cylinder |
| Cushion Type | Fixed Buffer |
| Mounting Type | ISO Standard Mounting |
| Applications | Positioning / Pushing / Precision Automation |

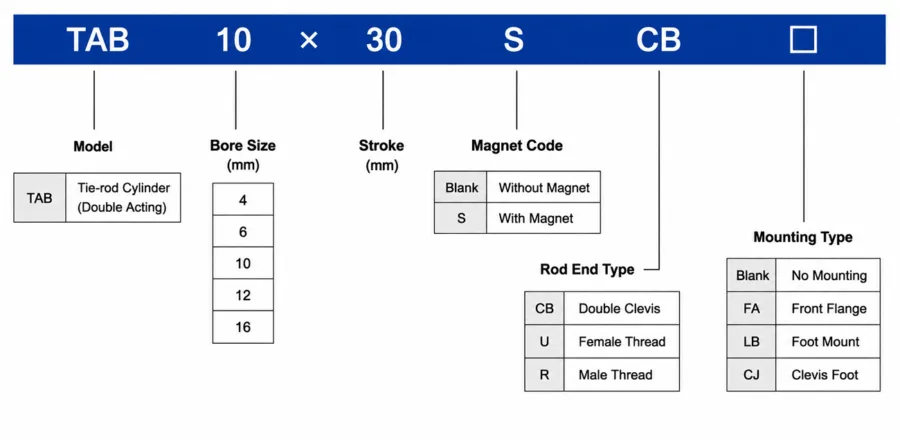

How to order
Product Features
Compact Pen Cylinder Structure
The TAB Series adopts a slim pen type cylinder structure suitable for automation equipment with limited installation space.
Precision Linear Motion
Designed for stable pushing, positioning, feeding, and transfer movement in precision automation applications.
Lightweight Compact Design
The compact body size helps simplify installation into fixtures, transfer systems, and small automation equipment.
Stainless Steel Cylinder Tube
The stainless steel cylinder barrel supports corrosion resistance and stable long-term industrial operation.
Reliable Double Acting Operation
Supports repeated forward and backward motion during continuous industrial automation cycles.
Suitable for Precision Automation Applications
Designed for compact pneumatic movement systems requiring stable and repeatable linear motion.
Easy Equipment Integration
ISO standard mounting supports practical installation into assembly equipment, packaging systems, and automation machinery.
Applications
Precision Automation Equipment
Used for compact positioning and pushing movement in automated production systems.
Electronic Assembly Machinery
Suitable for small component handling and precision transfer applications.
Packaging Systems
Applied in compact transfer and positioning stations within packaging automation.
Fixture and Jig Equipment
Used in fixtures requiring lightweight and compact pneumatic linear movement.
Transfer and Feeding Systems
Suitable for loading, unloading, and feeding applications in limited installation spaces.
Why Choose HOMIPNEU
- Stable mini cylinder manufacturing quality
- Slim pen type structure for compact machinery
- Smooth and repeatable linear motion performance
- Stainless steel cylinder tube for improved durability
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for automation equipment manufacturers and integrators
FAQ
What is the TAB pen type cylinder used for?
It is commonly used for compact positioning, pushing, feeding, and transfer movement in precision automation systems.
Does the TAB Series use brand compatible wording?
No. Since no official fully matched mainstream brand Series was confirmed, this page does not use compatible, replacement, or interchangeable wording.
What type of structure does the TAB Series use?
The TAB Series uses a slim pen type pneumatic cylinder structure for compact automation applications.
Is the TAB Series suitable for limited installation space?
Yes, the compact pen cylinder structure is suitable for automation equipment with restricted mounting space.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for TAB pen type pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
