Specifications
| Parameter | Description |
|---|---|

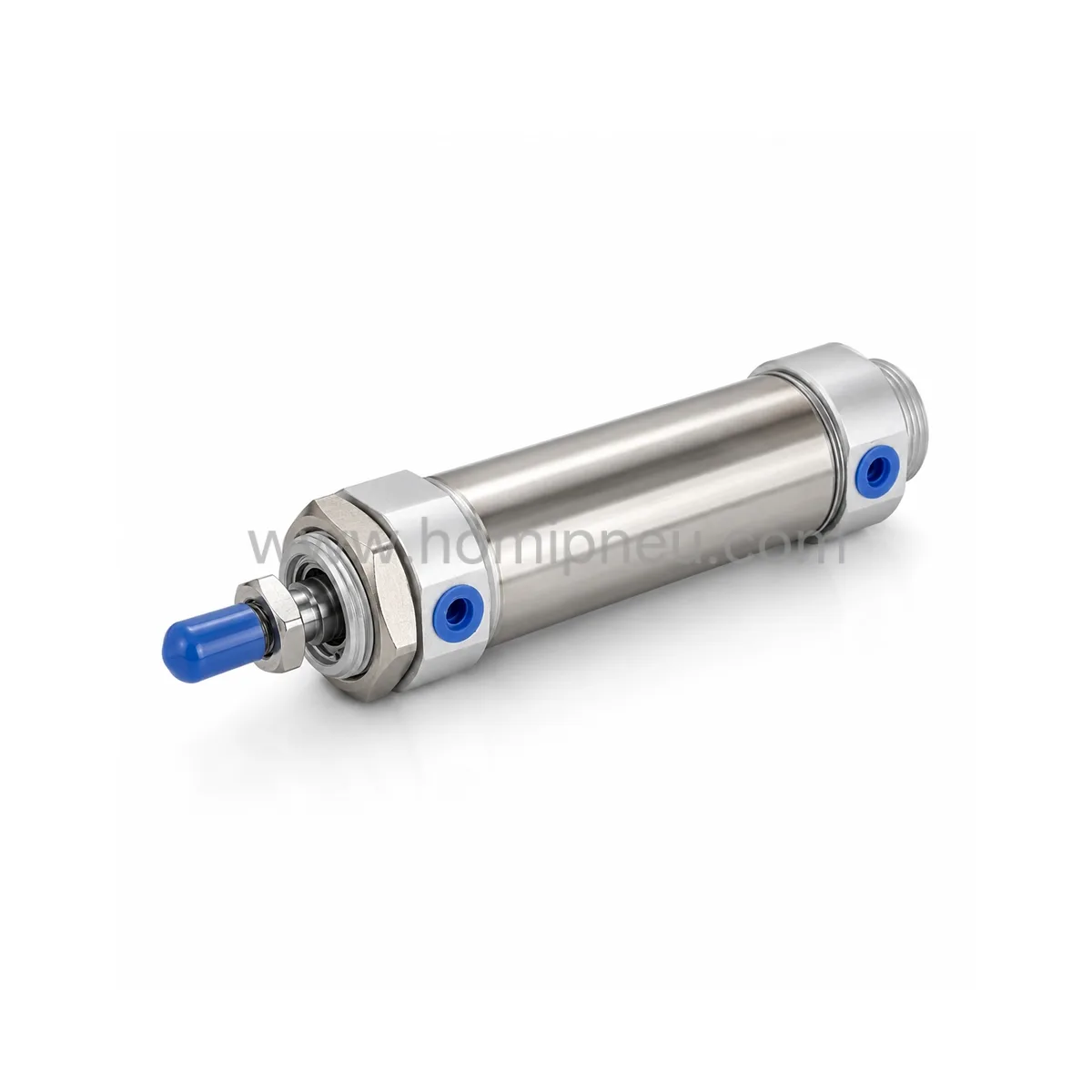

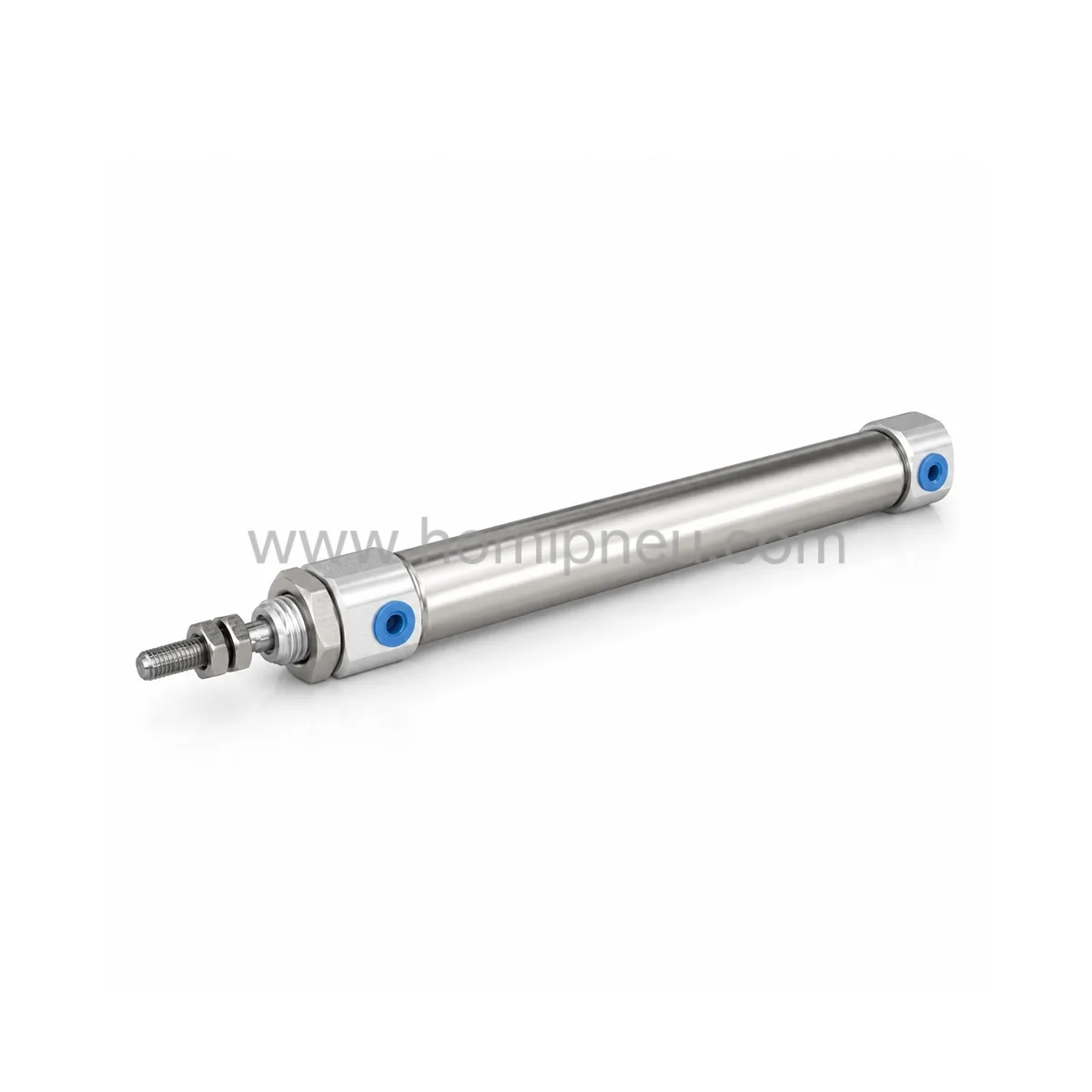

| Product Name | Stainless Steel Mini Pneumatic Cylinder |
| Series | CDJ2B Series |
| Alternative Model | PB Series |
| Cylinder Type | Round Body Mini Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Stainless Steel Tube |
| Cushion Type | Rubber Cushion / Air Cushion |
| Structure Type | Compact Round Body Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CDJ2B Series |
| Applications | Transfer / Positioning / Automation Systems |

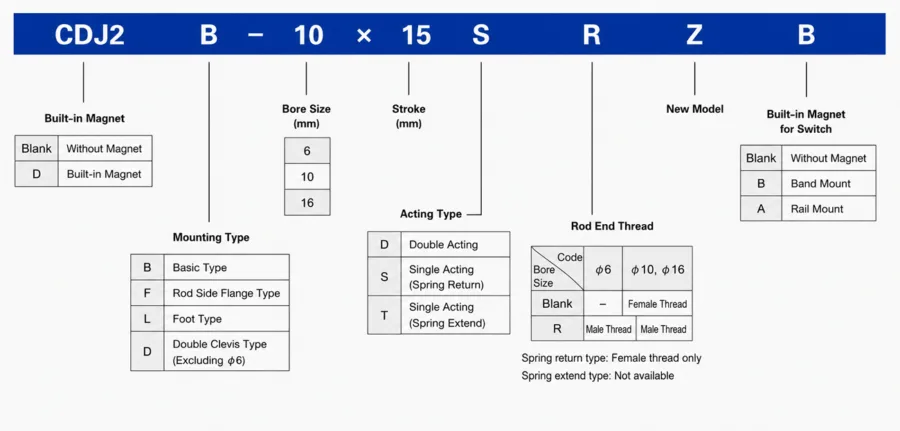

How to order
Product Features
Compact Mini Cylinder Structure
The CDJ2B Series adopts a compact round body structure suitable for automation systems with limited installation space.
Stainless Steel Cylinder Tube
The stainless steel cylinder barrel provides corrosion resistance and reliable long-term industrial operation.
Smooth Linear Motion
Designed for stable pushing, positioning, feeding, and transfer movement in pneumatic automation systems.
Reliable Double Acting Operation
Supports repeated forward and backward movement during continuous industrial automation cycles.
Flexible Cushion Configurations
Supports rubber cushion and air cushion structures depending on application requirements.
Suitable Replacement for SMC CDJ2B Series
Designed for pneumatic cylinder applications requiring replacement for SMC CDJ2B Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into fixtures, transfer systems, automation machinery, and industrial equipment.
Applications
Automation Equipment
Used for positioning, pushing, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and loading operations in packaging equipment.
Assembly Systems
Applied in component handling and positioning operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Industrial Machinery
Suitable for general-purpose pneumatic linear motion applications across industrial equipment.
Why Choose HOMIPNEU
- Stable mini cylinder manufacturing quality
- Stainless steel cylinder tube for improved durability
- Compact structure for easier equipment integration
- Smooth double acting linear motion performance
- ISO standard mounting for practical installation
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CDJ2B Series interchangeable with SMC CDJ2B Series?
Yes, the CDJ2B stainless steel mini pneumatic cylinder is designed to be interchangeable with SMC CDJ2B Series in many industrial automation applications.
What is the CDJ2B pneumatic cylinder used for?
It is commonly used for pushing, positioning, feeding, transfer, and compact linear motion applications in industrial automation systems.
What material is used for the cylinder tube?
The CDJ2B Series uses a stainless steel cylinder tube for corrosion resistance and stable industrial operation.
What cushion types are available?
The CDJ2B Series supports rubber cushion and air cushion configurations depending on application requirements.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CDJ2B stainless steel mini pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and industrial automation integrators.
