Specifications
| Parameter | Description |
|---|---|

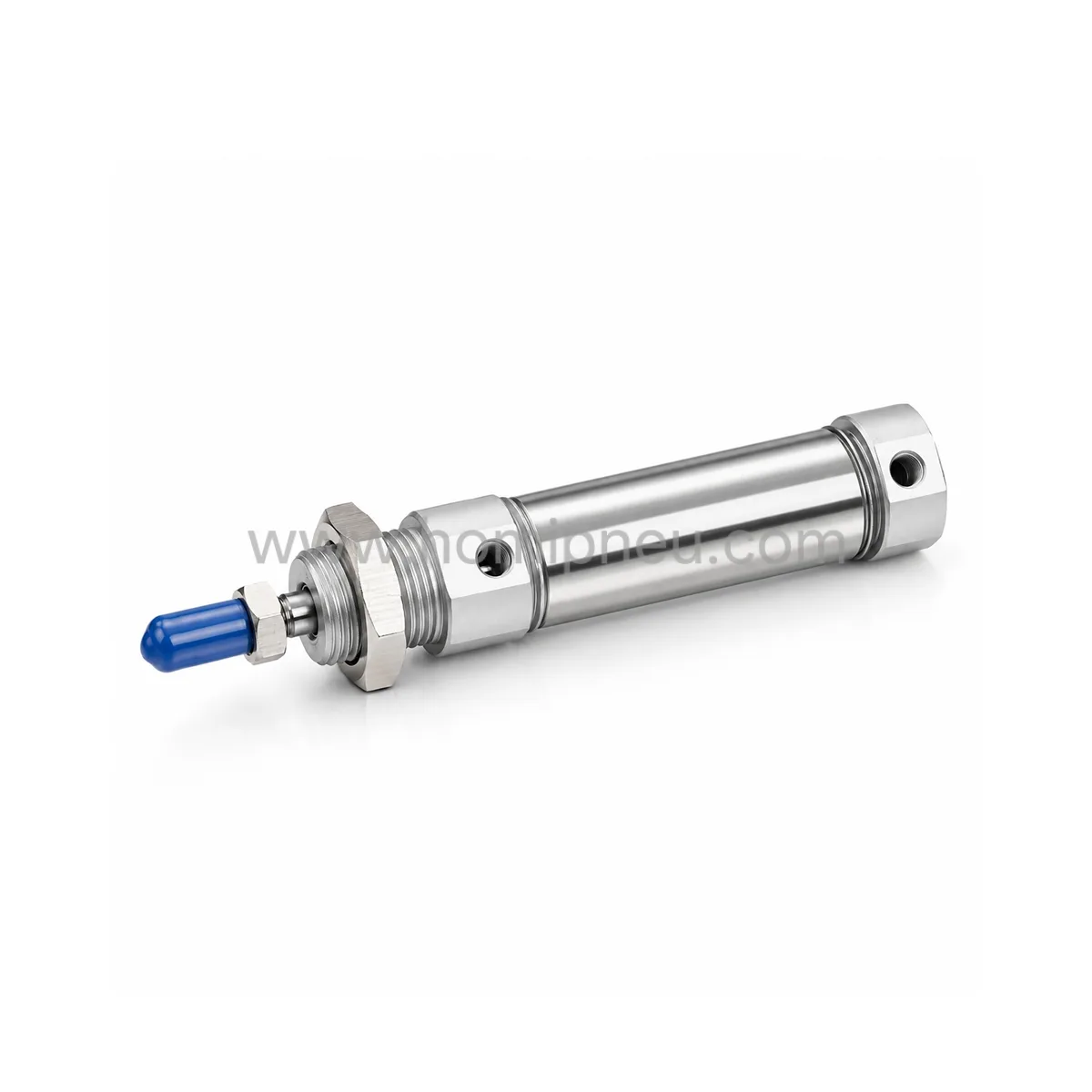

| Product Name | ISO 6432 Mini Pneumatic Cylinder |
| Series | C85 Series |
| Alternative Model | MI Series |
| Cylinder Type | Round Body Mini Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Standard | ISO 6432 |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Stainless Steel Tube |
| Cushion Type | Fixed Buffer |
| Structure Type | Compact Round Body Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC C85 Series / Mindman MI Series |
| Applications | Transfer / Pushing / Automation Systems |

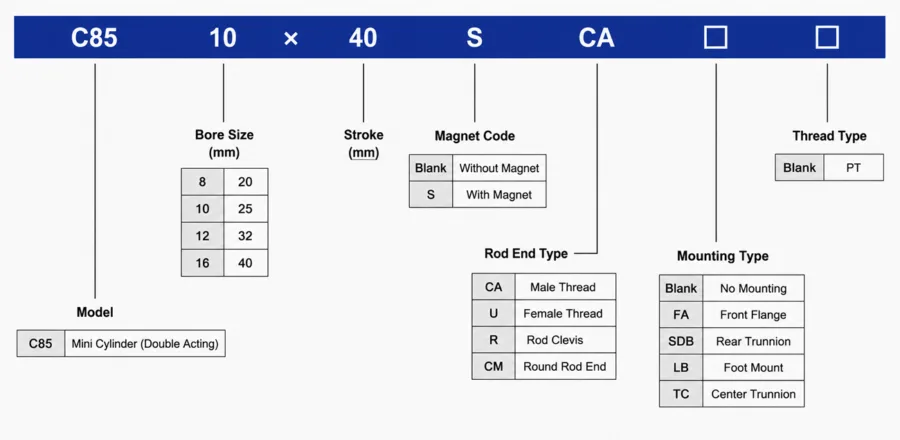

How to order
Product Features
ISO 6432 Standard Cylinder Structure
The C85 Series follows ISO 6432 dimensional standards for easier replacement and equipment integration in industrial automation systems.
Compact Round Body Design
The compact structure supports installation into machinery and automation equipment with limited mounting space.
Stainless Steel Cylinder Tube
The stainless steel barrel provides corrosion resistance and stable long-term industrial operation.
Smooth Linear Motion Performance
Designed for pushing, positioning, transfer, feeding, and compact pneumatic movement applications.
Reliable Double Acting Operation
Supports repeated forward and return motion during continuous automation cycles.
Suitable Replacement for SMC C85 Series and Mindman MI Series
Designed for pneumatic cylinder applications requiring replacement for SMC C85 Series and Mindman MI Series models.
Easy Equipment Integration
ISO standard mounting helps simplify installation into fixtures, packaging machinery, transfer systems, and industrial automation equipment.
Applications
Automation Equipment
Used for positioning, pushing, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and loading operations in packaging equipment.
Assembly Systems
Applied in component positioning and handling operations within assembly automation machinery.
Textile and Light Industrial Machinery
Used in compact pneumatic movement applications requiring lightweight cylinder structures.
Transfer and Fixture Systems
Suitable for loading, unloading, and workpiece transfer operations.
Why Choose HOMIPNEU
- Stable mini cylinder manufacturing quality
- ISO 6432 standard structure for easier replacement
- Stainless steel cylinder tube for improved durability
- Compact design for limited installation space
- Smooth linear motion performance
- ISO standard mounting for practical machine integration
- Support for customized stroke and mounting dimensions
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the C85 Series interchangeable with SMC C85 Series and Mindman MI Series?
Yes, the C85 mini pneumatic cylinder is designed to be interchangeable with SMC C85 Series and Mindman MI Series in many industrial automation applications.
What is the C85 mini cylinder used for?
It is commonly used for positioning, pushing, feeding, transfer, and compact linear motion applications in automation equipment.
Does the C85 Series follow ISO standards?
Yes, the C85 Series follows ISO 6432 dimensional standards for compact round body pneumatic cylinders.
What material is used for the cylinder tube?
The C85 Series uses a stainless steel cylinder tube for corrosion resistance and reliable industrial operation.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for C85 ISO 6432 mini pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and industrial automation integrators.
