Specifications
| Parameter | Description |
|---|---|

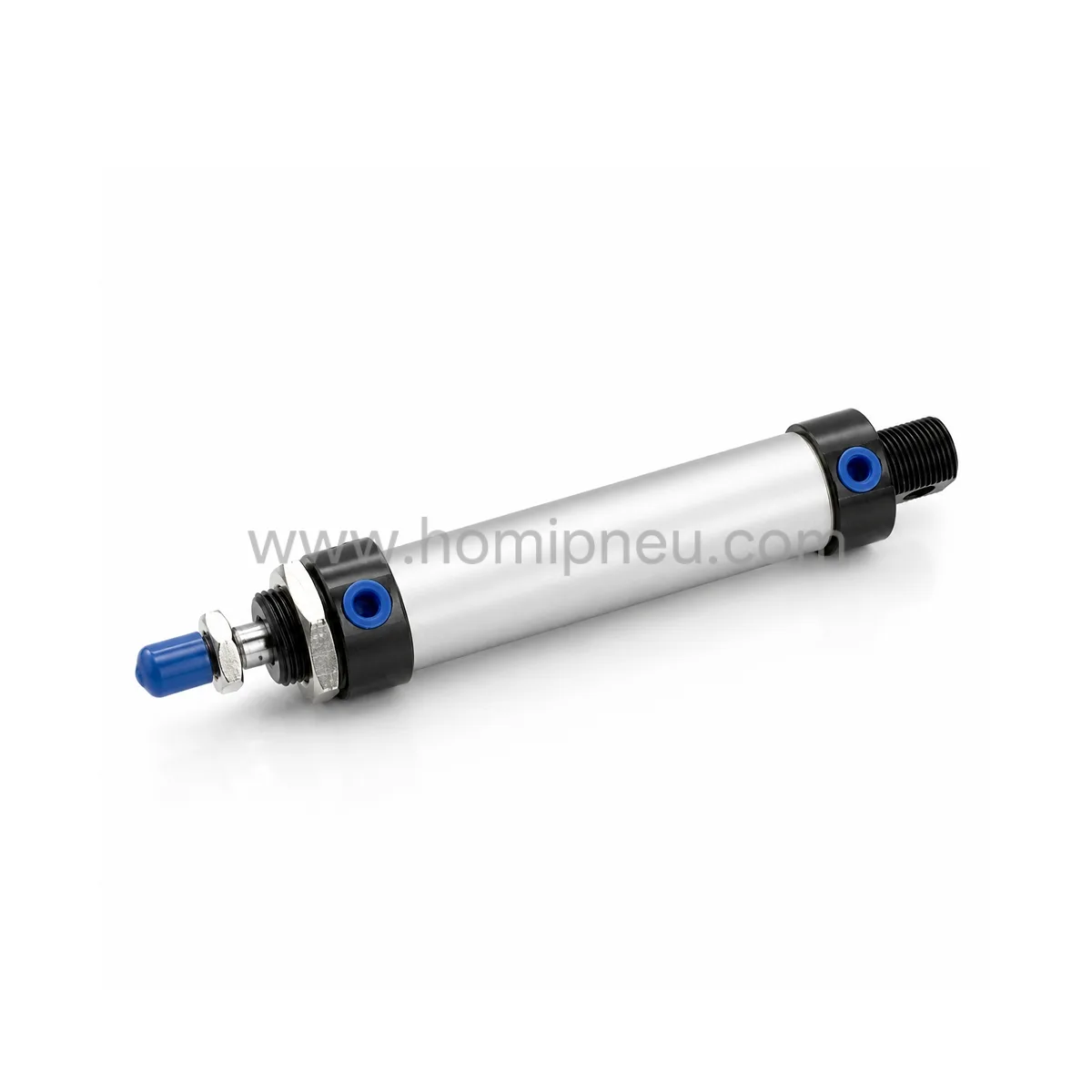

| Product Name | Aluminum Mini Pneumatic Cylinder |
| Series | MAL Series |
| Cylinder Type | Round Body Mini Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy Barrel |
| Cushion Type | Fixed Buffer |
| Structure Type | Compact Round Body Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac MAL Series |
| Applications | Transfer / Pushing / Automation Systems |

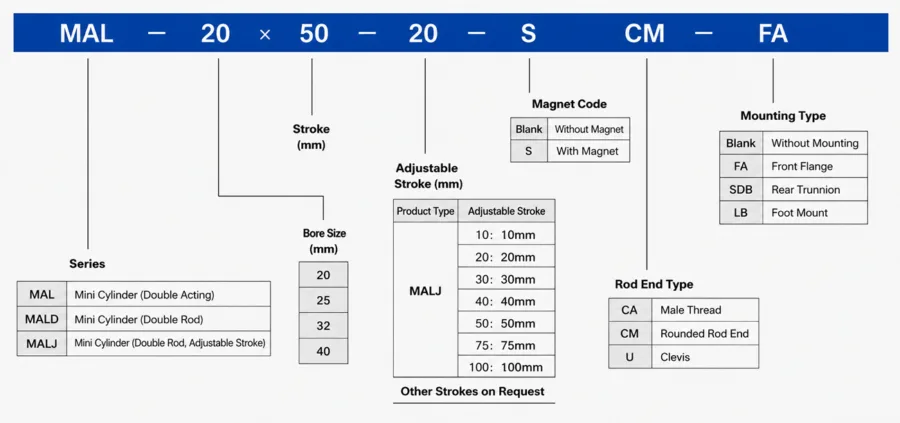

How to order
Product Features
Compact Mini Cylinder Structure
The MAL Series adopts a compact round body structure suitable for automation equipment with limited installation space.
Aluminum Alloy Cylinder Barrel
The aluminum barrel design helps reduce overall weight while maintaining reliable industrial operation.
Smooth Linear Motion
Designed for stable pushing, positioning, feeding, and transfer movement in pneumatic automation systems.
Lightweight Compact Design
The compact body structure supports practical installation into machinery, fixtures, and automated production equipment.
Reliable Double Acting Operation
Supports repeated forward and return movement during continuous industrial automation cycles.
Suitable Replacement for Airtac MAL Series
Designed for pneumatic cylinder applications requiring replacement for Airtac MAL Series models.
Easy Equipment Integration
ISO standard mounting supports convenient installation into automation machinery and industrial equipment.
Applications
Automation Equipment
Used for linear pushing, positioning, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and feeding applications in packaging equipment.
Assembly Systems
Applied in component positioning and handling operations within assembly automation machinery.
Textile and Light Industrial Machinery
Used in compact pneumatic movement applications requiring lightweight cylinder structures.
Fixture and Transfer Systems
Suitable for loading, unloading, and workpiece transfer operations.
Why Choose HOMIPNEU
- Stable mini cylinder manufacturing quality
- Lightweight aluminum alloy cylinder structure
- Compact design for limited installation space
- Smooth linear motion performance
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MAL Series interchangeable with Airtac MAL Series?
Yes, the MAL aluminum mini pneumatic cylinder is designed to be interchangeable with Airtac MAL Series in many industrial automation applications.
What is the MAL mini cylinder used for?
It is commonly used for positioning, pushing, transfer, feeding, and compact linear motion applications in automation equipment.
What material is used for the cylinder barrel?
The MAL Series uses an aluminum alloy cylinder barrel to reduce weight and support stable industrial operation.
Is the MAL Series suitable for compact machinery?
Yes, the compact round body structure is suitable for machinery with limited installation space.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MAL aluminum mini pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
