Specifications
| Parameter | Description |
|---|---|

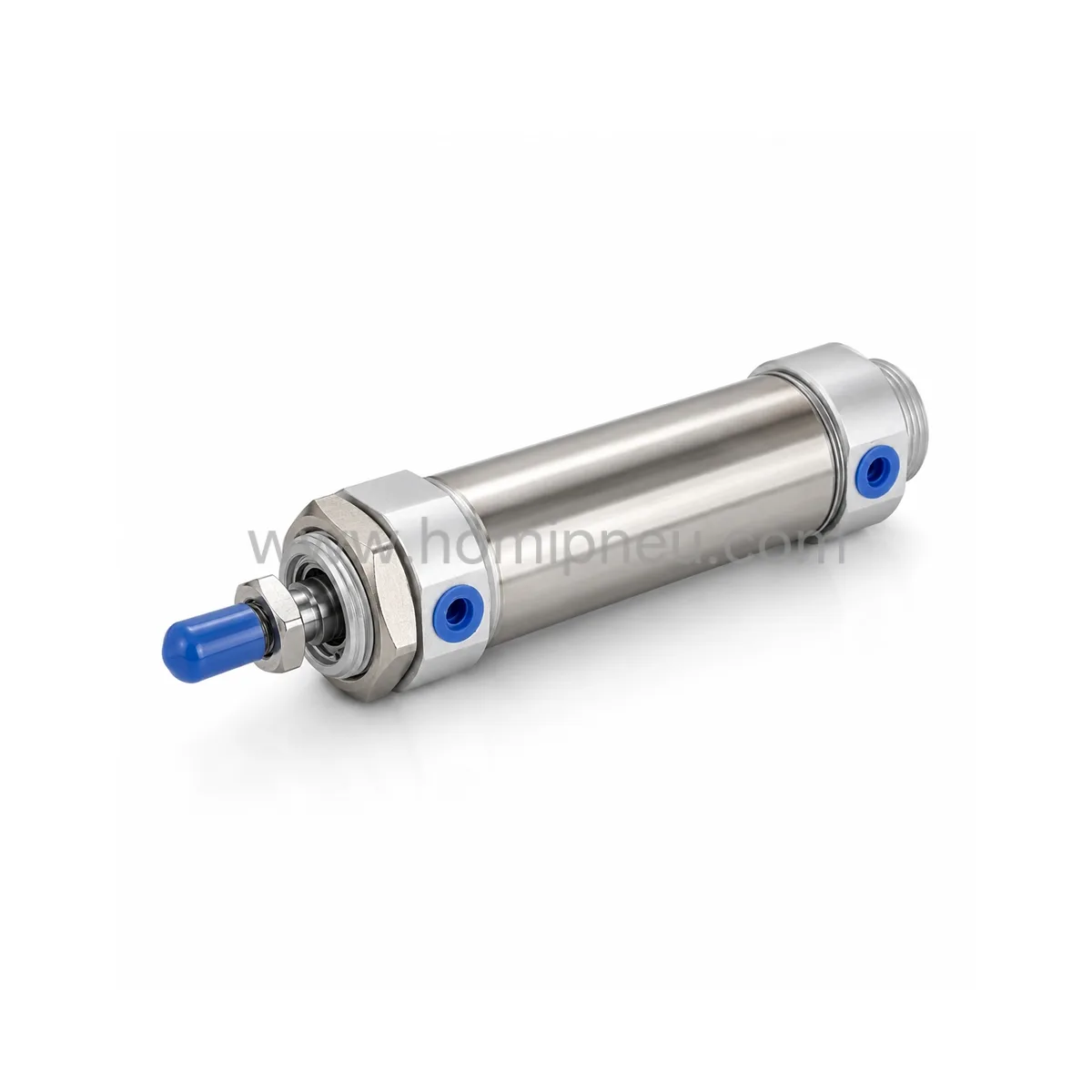

| Product Name | Stainless Steel Pneumatic Cylinder |
| Series | CDM2B Series |
| Cylinder Type | Round Body Pneumatic Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.05~1.0 MPa |
| Body Material | Stainless Steel Tube |
| Cushion Type | Rubber Cushion / Air Cushion |
| Structure Type | Standard Round Body Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CDM2B Series |
| Applications | Transfer / Pushing / Automation Systems |

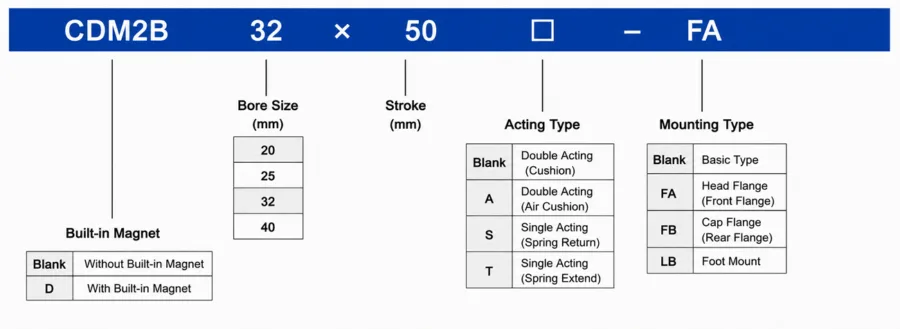

How to order
Product Features
Stainless Steel Cylinder Structure
The CDM2B Series uses a stainless steel cylinder tube suitable for industrial environments requiring stable long-term operation.
Compact Round Body Design
The compact round body structure supports practical installation into automation equipment and machinery.
Smooth Linear Motion
Designed for stable pushing, positioning, transfer, and feeding movement in pneumatic automation systems.
Reliable Double Acting Operation
Supports repeated forward and backward movement during continuous industrial automation cycles.
Flexible Cushion Options
Available with rubber cushion and air cushion configurations depending on application requirements.
Suitable Replacement for SMC CDM2B Series
Designed for pneumatic cylinder applications requiring replacement for SMC CDM2B Series models.
Easy Equipment Integration
ISO standard mounting supports convenient installation into fixtures, transfer systems, machinery, and automation equipment.
Applications
Automation Equipment
Used for pushing, positioning, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for transfer, sorting, and loading operations in packaging equipment.
Assembly Systems
Applied in component handling and positioning operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Industrial Machinery
Suitable for general-purpose pneumatic linear motion applications across industrial equipment.
Why Choose HOMIPNEU
- Stable pneumatic cylinder manufacturing quality
- Stainless steel cylinder tube for improved durability
- Compact structure for easier equipment integration
- Smooth double acting linear motion performance
- ISO standard mounting for practical installation
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CDM2B Series interchangeable with SMC CDM2B Series?
Yes, the CDM2B stainless steel pneumatic cylinder is designed to be interchangeable with SMC CDM2B Series in many industrial automation applications.
What is the CDM2B pneumatic cylinder used for?
It is commonly used for pushing, transfer, feeding, positioning, and linear motion applications in industrial automation systems.
What material is used for the cylinder tube?
The CDM2B Series uses a stainless steel cylinder tube for stable industrial operation and corrosion resistance.
What cushion types are available?
The CDM2B Series supports rubber cushion and air cushion configurations depending on application requirements.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CDM2B stainless steel pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and industrial automation integrators.
