Specifications
| Parameter | Description |
|---|---|
| Product Name | Guided Slide Pneumatic Cylinder |
| Series | STMB Series |
| Cylinder Type | Double Rod Slide Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Double Piston Rod / Slide Table Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~1.0 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Applications | Positioning / Transfer / Pushing / Automation Systems |

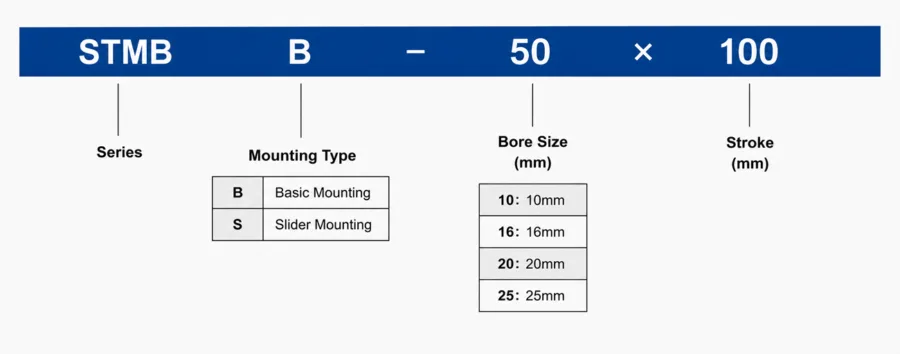

How to order
Product Features
Guided Slide Cylinder Structure
The STMB Series uses a guided slide structure to provide stable linear movement for automation equipment and workpiece transfer applications.
Double Rod Support Design
The double rod structure improves anti-rotation performance and helps maintain stable movement under side load conditions.
Compact Linear Motion
Designed for short-stroke pushing, positioning, feeding, and transfer tasks in compact industrial machinery.
Durable Aluminum Alloy Body
The aluminum alloy housing provides lightweight strength for continuous pneumatic automation applications.
Stable Positioning Performance
Suitable for repeated forward and return motion in automated production lines, fixtures, and handling systems.
Easy Equipment Integration
ISO standard mounting supports practical installation into machinery, jigs, transfer units, and automation fixtures.
Built for Industrial Automation
Designed for stable operation in packaging machinery, assembly equipment, loading systems, and precision transfer applications.
Applications
Assembly Automation
Used for part positioning, pushing, transfer, and alignment in automated assembly equipment.
Transfer and Feeding Systems
Suitable for moving workpieces in linear transfer stations and feeding mechanisms.
Packaging Machinery
Applied in positioning, pushing, sorting, and loading stations within packaging automation.
Fixture and Jig Systems
Used in industrial fixtures requiring compact guided linear movement.
Material Handling Equipment
Suitable for loading, unloading, and short-stroke handling applications in production lines.
Why Choose HOMIPNEU
- Stable guided cylinder manufacturing quality
- Double rod structure for improved motion stability
- Compact design for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the STMB guided slide cylinder used for?
It is used for positioning, pushing, feeding, transfer, alignment, and short-stroke linear motion in automation equipment.
Does this page use brand compatible wording?
No. Since no official fully matched mainstream brand Series was confirmed, this page does not use compatible, replacement, or interchangeable wording.
What type of motion does the STMB Series provide?
The STMB Series provides guided linear motion through a double rod slide cylinder structure.
Is it suitable for compact automation machinery?
Yes, the compact guided design is suitable for fixtures, packaging machinery, assembly equipment, and transfer systems.
Can customized stroke lengths be supplied?
Yes, customized stroke lengths, mounting dimensions, and application-specific pneumatic cylinder solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for STMB Series guided slide pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
