Specifications
| Type | Operating Pressure (kgf/cm²) | Air Consumption (L/cycle) | Wallop (kg·m/s) | Weight (kg) |
|---|---|---|---|---|
| SK-30 | 3–7 | 0.028 | ~0.75 | 1.1 |
| SK-40 | 3–7 | 0.082 | ~2.2 | 2.2 |
| SK-60 | 5–7 | 0.228 | ~7.4 | 5.1 |
| SK-80 | 4–5 | 0.455 | ~16.4 | 11.1 |
| SK-100 | 5–7 | 1.012 | ~30.0 | 37.5 |

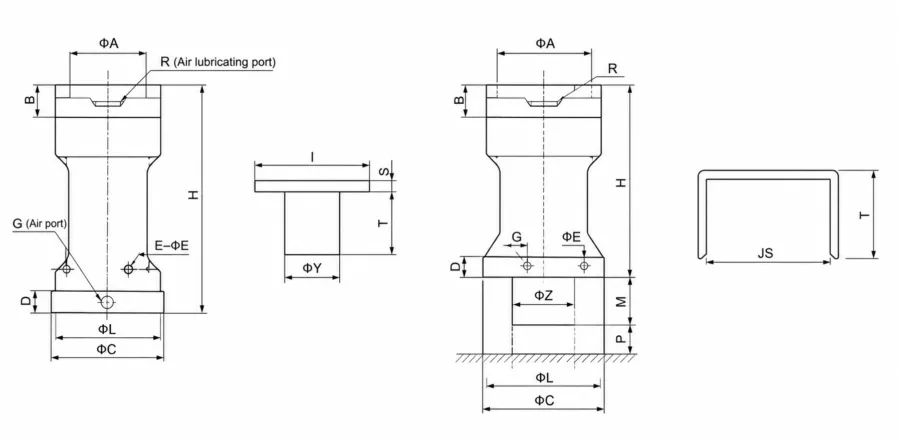

Model Selection and Dimensions
| Type | A | B | C | D | E | G | H | L | S | T | Y | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SK-30 | 75 | 10 | 82 | 13 | 9 | 1/8 | 132 | 68 | 6 | 50 | 27 | 1/4 |
| SK-40 | 90 | 12 | 97 | 18 | 11 | 1/4 | 162 | 78 | 10 | 60 | 34 | 1/4 |
| SK-60 | 121 | 13 | 143 | 19 | 15 | 1/4 | 215 | 100 | 10 | 60 | 48 | 1/4 |
| SK-80 | 160 | 17 | 170 | 20 | 17 | 3/8 | 260 | 140 | 14 | 90 | 70 | 3/8 |
| SK-100 | 200 | 18 | 200 | 23 | 17 | 3/8 | 318 | 160 | 18 | 90 | 70 | 3/8 |
Product Features

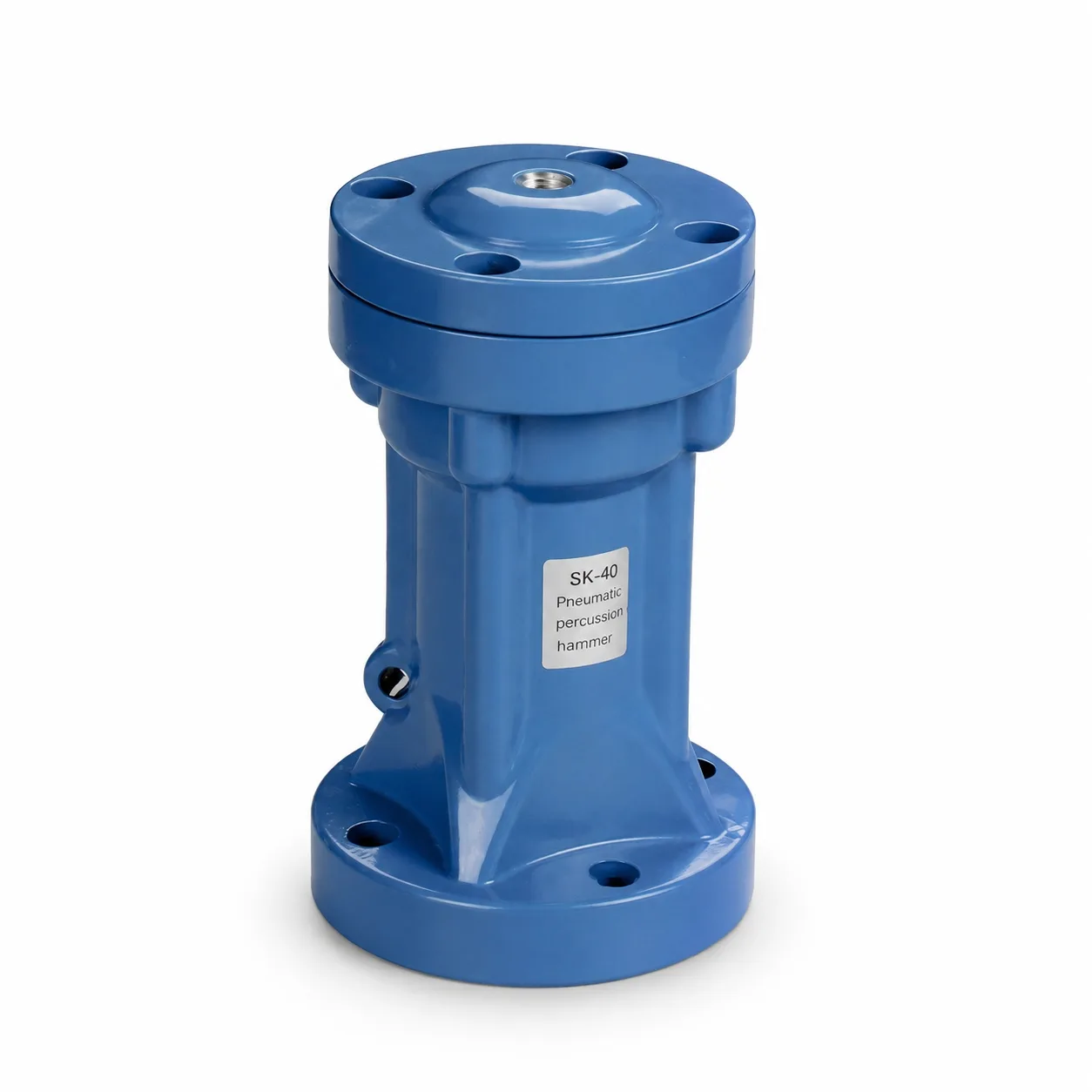

Strong Compressed Air Impact
The SK Series pneumatic percussion hammer uses compressed air to generate short, strong impact force. It is suitable for equipment where impact knocking is more effective than continuous vibration.
Designed for Hopper and Silo Discharge
The hammer helps improve material discharge in hoppers, bins, silos, chutes, and storage containers. It can help reduce bridging, sticking, arching, and blocking in selected powder or granular material applications.
Wide Model Range from SK-30 to SK-100
The series includes SK-30, SK-40, SK-60, SK-80, and SK-100 models. Customers can select the correct model according to impact force, equipment size, wall thickness, material condition, air consumption, and mounting space.
Air Consumption by Cycle
The SK Series works by impact cycles, so air consumption is selected according to the model and working frequency. This makes it suitable for intermittent knocking applications in industrial production lines.
Suitable for Heavy Material Flow Problems
Compared with small pneumatic vibrators, a pneumatic percussion hammer is often selected for stronger impact requirements, larger bins, sticky materials, or equipment where periodic knocking is needed.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, private label requirements, and OEM supply for pneumatic vibrator distributors, powder handling equipment suppliers, and industrial automation customers.
Applications
Hopper and Bin Discharge
Used to improve material discharge from hoppers, bins, and storage containers where powder or granules may bridge, stick, or stop flowing.
Silo and Tank Cleaning
Suitable for silo walls, tanks, and storage vessels where periodic impact helps loosen attached material and support smoother discharge.
Chute and Conveyor Systems
Applied to chutes, conveyors, transfer points, and feeding systems where material buildup or blockage may affect production.
Powder and Granular Material Handling
Used in powder processing, dry material handling, granule feeding, batching systems, weighing equipment, and industrial production lines.
Packaging and Filling Machinery
Suitable for packaging machines, filling machines, dosing systems, weighing systems, and feeding lines that need stable material flow.
OEM Machinery and Maintenance Replacement
Suitable for OEM equipment builders, spare parts programs, distributor stock, and maintenance replacement projects that require pneumatic impact components.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic percussion hammers, pneumatic vibrators, pneumatic solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, vacuum components, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including impact force, air consumption, working pressure, port size, mounting space, installation method, equipment structure, and application material.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for pneumatic hammer, pneumatic vibrator, and compressed air component projects.
FAQ
What is the SK Series pneumatic percussion hammer used for?
The SK Series pneumatic percussion hammer is used to generate compressed-air-powered impact force for hoppers, bins, silos, chutes, conveyors, feeding equipment, packaging machines, and powder handling systems.
How is a pneumatic percussion hammer different from a pneumatic vibrator?
A pneumatic vibrator produces continuous vibration, while a pneumatic percussion hammer produces short impact knocking. The hammer is often selected when stronger periodic impact is needed to loosen stuck or bridged material.
What models are available in the SK Series?
The SK Series includes SK-30, SK-40, SK-60, SK-80, and SK-100. Different models provide different impact force, air consumption, weight, and installation dimensions.
Can the impact force be adjusted?
The impact effect can be influenced by air pressure, model size, installation position, and working cycle. The correct model should be selected according to material condition and equipment size.
Where can this hammer be installed?
It can be installed on hoppers, bins, silos, chutes, tanks, conveyors, feeders, packaging machines, and other equipment where impact knocking is needed to support material flow.
What should be confirmed before ordering?
Please confirm the model, impact force, working pressure, air consumption, port size, mounting space, equipment wall thickness, material condition, installation position, and order quantity.
