Specifications
| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption(/min) | ||||||
| 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | |
| GT-4 | 19600 | 21300 | 24700 | 130 | 155 | 195 | 30 | 40 | 50 |
| GT-6 | 18700 | 21000 | 24000 | 135 | 160 | 200 | 30 | 40 | 50 |
| GT-8 | 35000 | 40000 | 43200 | 950 | 1850 | 2850 | 48 | 75 | 152 |
| GT-10 | 25750 | 32800 | 35000 | 980 | 1950 | 2950 | 48 | 75 | 152 |
| GT-13 | 22100 | 24950 | 30500 | 1250 | 2000 | 3000 | 125 | 210 | 280 |
| GT-16 | 19200 | 20800 | 22100 | 1350 | 2200 | 3150 | 125 | 210 | 280 |
| GT-20 | 15750 | 17800 | 21100 | 2050 | 3500 | 5300 | 188 | 315 | 465 |
| GT-25 | 13250 | 15500 | 19700 | 2100 | 3500 | 5400 | 188 | 315 | 465 |
| GT-30 | 10900 | 11700 | 15500 | 3100 | 5200 | 6850 | 340 | 520 | 760 |
| GT-36 | 8700 | 9700 | 12800 | 3200 | 5300 | 7000 | 340 | 520 | 760 |
| GT-40 | 7750 | 8680 | 6000 | 8100 | 680 | 960 | |||
| GT-48 | 7580 | 8470 | 6200 | 8500 | 680 | 960 | |||
| GT-60 | 5200 | 7350 | 7500 | 1150 | 900 | 1350 | |||

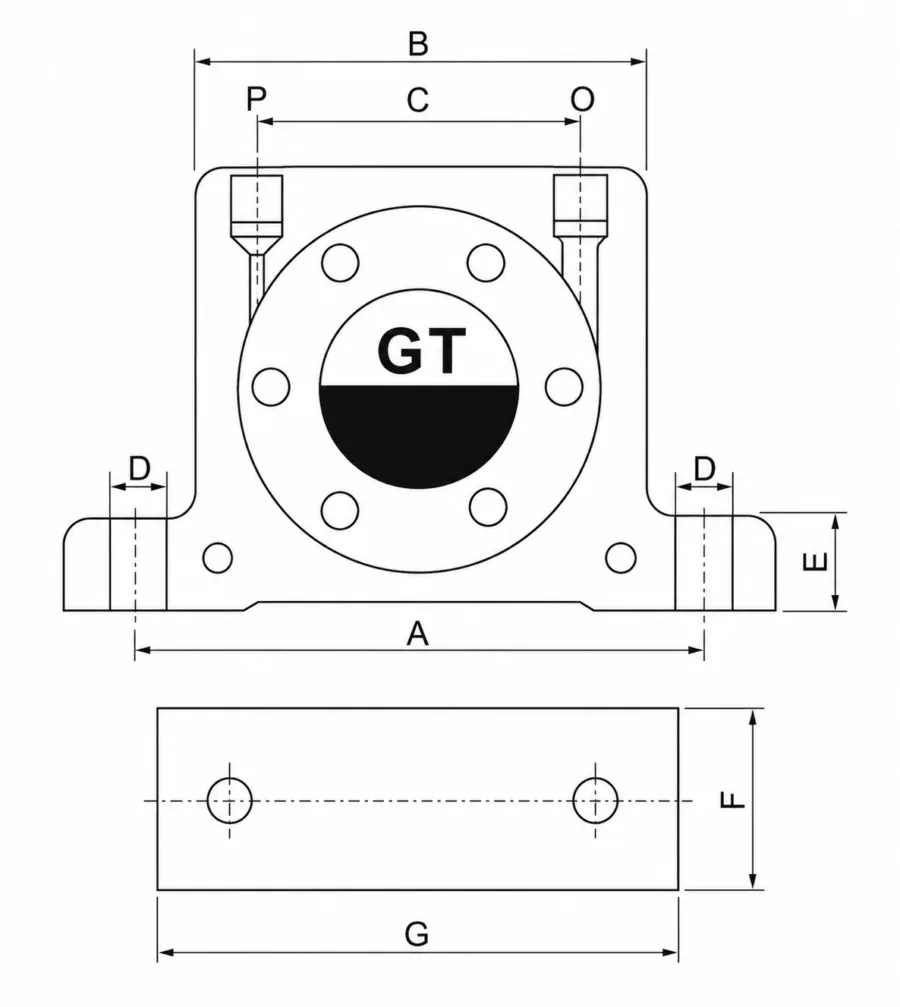

Model Selection and Dimensions
| Type | A | B | C | D | E | F | G | P/O | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| GT-4 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
| GT-6 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
| GT-8 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
| GT-10 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
| GT-13 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
| GT-16 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
| GT-20 | 104 | 80 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
| GT-25 | 104 | 80 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
| GT-32 | 130 | 100 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
| GT-36 | 130 | 100 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
| GT-40 | 152 | 120 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
| GT-48 | 152 | 120 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
| GT-60 | 195 | 140 | 96 | 21 | 30 | 95 | 240 | 1/2 | 5590 |
Product Features
Compressed Air Powered Vibration

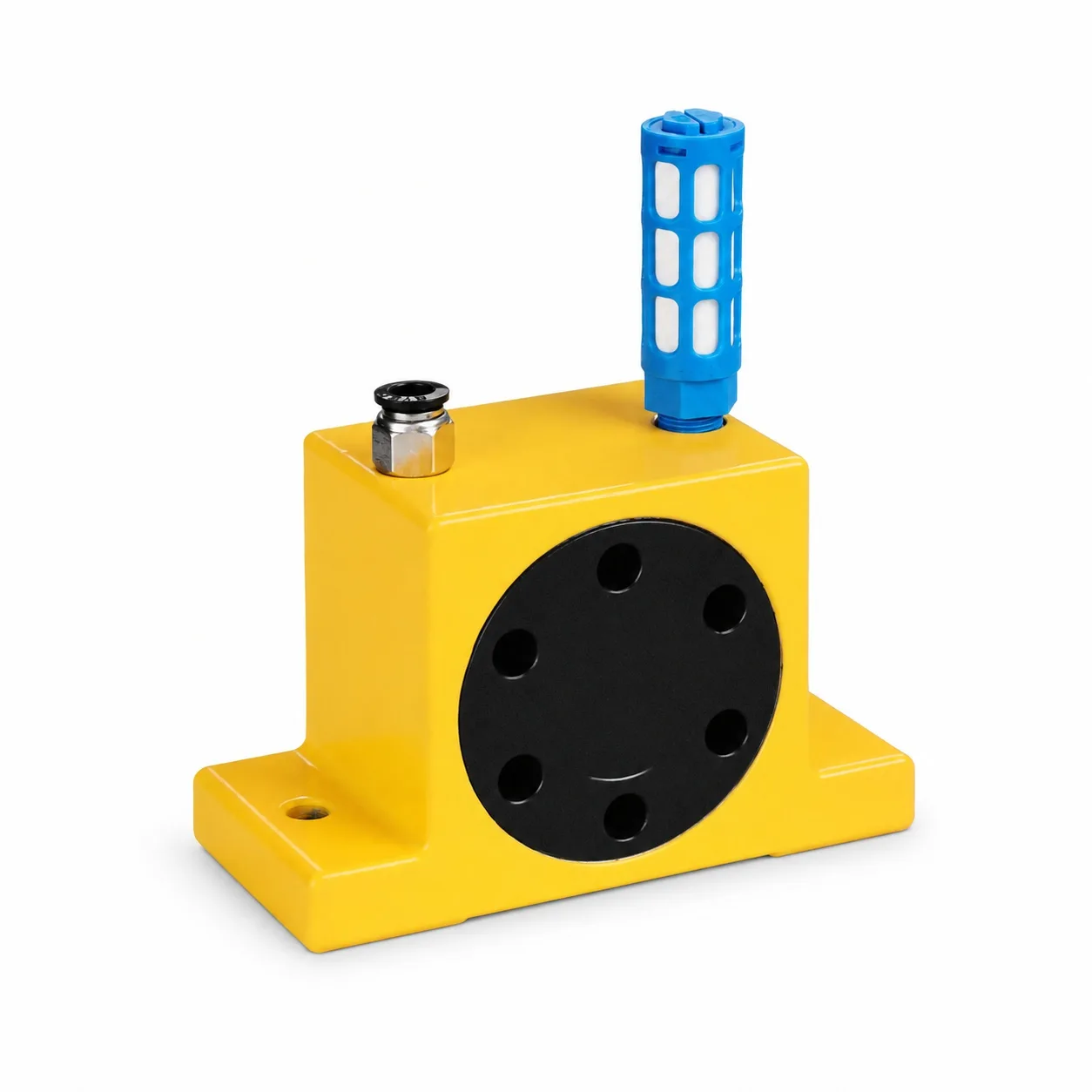

The GT Series pneumatic gear vibrator uses compressed air to generate high-frequency vibration. It is suitable for equipment where electric vibration motors are not preferred or where pneumatic control is already available.
Adjustable Vibration by Air Pressure
Vibration frequency and output force can be adjusted by changing the air supply pressure. This makes it easier to match different materials, flow conditions, hopper sizes, and equipment requirements.
Wide Model Range from GT-4 to GT-60
The series covers compact and larger vibration models, including GT-4, GT-6, GT-8, GT-10, GT-13, GT-16, GT-20, GT-25, GT-30, GT-36, GT-40, GT-48, and GT-60. Customers can select the correct model according to vibration force, frequency, air consumption, and mounting space.
Suitable for Hopper, Bin, and Chute Applications
The vibrator helps improve material flow in hoppers, bins, silos, chutes, conveyors, and feeding systems. It can reduce bridging, sticking, blocking, and uneven discharge in selected powder or granular material applications.
Compact Structure for Machine Installation
The GT Series has a compact body with threaded air connection options from G1/8 to G1/2 depending on model. It is suitable for installation on packaging machines, conveying equipment, feeding systems, and industrial process machinery.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, and OEM supply for pneumatic vibrator distributors, packaging equipment builders, powder handling equipment suppliers, and industrial automation customers.
Applications
Hopper and Bin Discharge
Used to improve material discharge from hoppers, bins, silos, and storage containers where powder or granules may bridge, stick, or flow unevenly.
Chute and Conveyor Systems
Suitable for chutes, conveyors, transfer points, and feeding equipment where vibration helps keep materials moving smoothly.
Powder and Granular Material Handling
Applied in powder handling, dry material processing, granule feeding, screening, and batching systems where stable material flow is required.
Packaging Machinery
Used in packaging machines, filling equipment, weighing systems, dosing machines, and feeding lines to support material settling and flow control.
OEM Machinery and Maintenance Replacement
Suitable for OEM equipment builders, spare parts programs, distributor stock, and maintenance replacement projects that require pneumatic vibration components.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic vibrators, pneumatic solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, vacuum components, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including vibration force, frequency, air consumption, port size, working pressure, installation space, mounting method, and application material.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for pneumatic vibrator and compressed air component projects.
FAQ
What is the GT Series pneumatic gear vibrator used for?
The GT Series pneumatic gear vibrator is used to generate compressed-air-powered vibration for hoppers, bins, chutes, conveyors, packaging machines, feeding equipment, and powder handling systems.
How does a pneumatic gear vibrator work?
A pneumatic gear vibrator uses compressed air to create vibration. The vibration frequency and force change according to model size and air supply pressure.
Can the vibration force be adjusted?
Yes. The vibration output can be adjusted by changing the air pressure. Customers should select the correct model according to material type, hopper size, flow problem, and required vibration force.
What models are available in the GT Series?
The GT Series includes GT-4, GT-6, GT-8, GT-10, GT-13, GT-16, GT-20, GT-25, GT-30, GT-36, GT-40, GT-48, and GT-60.
What port sizes are available?
Different models use different air port sizes, including G1/8, G1/4, G3/8, and G1/2. Please confirm the required port size and thread type before ordering.
Where can this vibrator be installed?
It can be installed on hoppers, bins, silos, chutes, conveyors, feeders, packaging machines, and other equipment where vibration is needed to support material flow.
What should be confirmed before ordering?
Please confirm the model, vibration force, frequency, air consumption, port size, working pressure, mounting space, equipment type, material condition, and order quantity.
