Specifications
| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption(/min) | ||||||
| 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | |
| GT-8 | 22500 | 27250 | 34100 | 245 | 465 | 700 | 90 | 150 | 190 |
| GT-10 | 22500 | 27250 | 34100 | 245 | 465 | 700 | 90 | 150 | 190 |
| GT-13 | 13250 | 17500 | 19000 | 440 | 820 | 1200 | 100 | 190 | 270 |
| GT-16 | 13250 | 17500 | 19000 | 440 | 820 | 1200 | 100 | 190 | 270 |
| GT-20 | 10000 | 12750 | 14111 | 950 | 1675 | 2000 | 150 | 270 | 400 |
| GT-25 | 10000 | 12750 | 14111 | 950 | 1675 | 2000 | 150 | 270 | 400 |
| GT-32 | 7500 | 9350 | 11000 | 2000 | 3150 | 4000 | 270 | 460 | 680 |
| GT-36 | 7500 | 9350 | 11000 | 2000 | 3150 | 4000 | 270 | 460 | 680 |

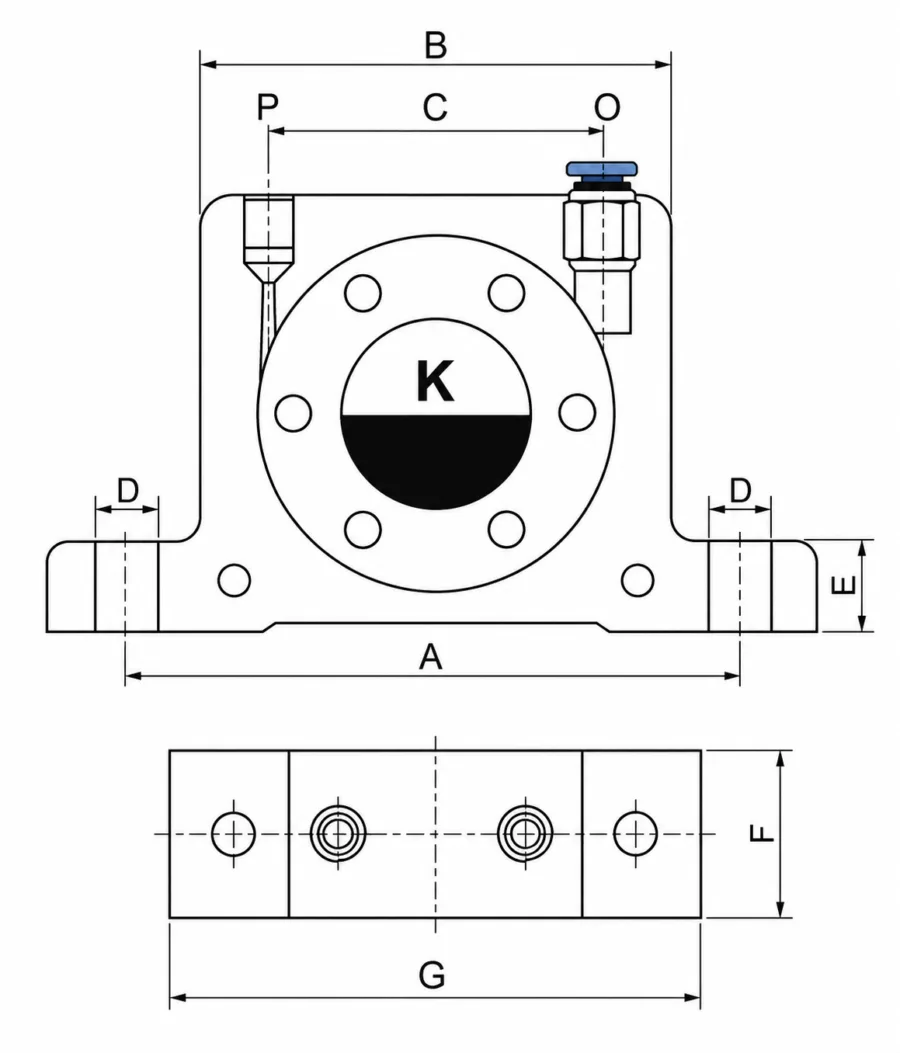

Model Selection and Dimensions
| Type | A | B | C | D | E | F | G | P/O | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| K-8 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-10 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-13 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-16 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-20 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-25 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-32 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
| K-36 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
Product Features

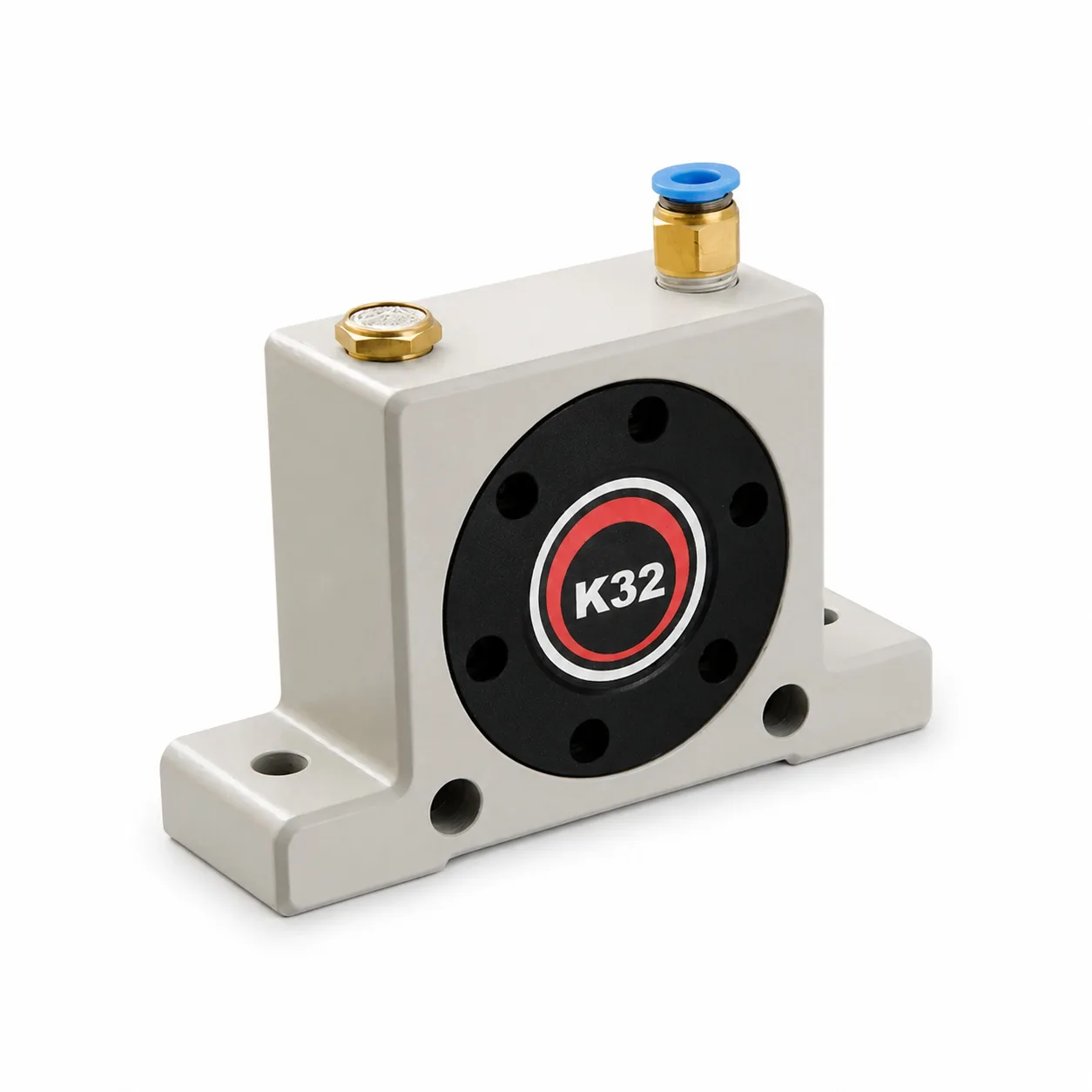

Compressed Air Powered Ball Vibration
The K Series pneumatic ball vibrator uses compressed air to drive internal ball rotation and generate vibration. It is suitable for industrial equipment where pneumatic power is preferred over electric vibration motors.
Adjustable Vibration by Air Pressure
Vibration frequency and output force can be adjusted by changing the air supply pressure. This helps match different hopper sizes, material conditions, flow problems, and equipment requirements.
Compact K-8 to K-36 Model Range
The series includes K-8, K-10, K-13, K-16, K-20, K-25, K-32, and K-36 models. Customers can select the correct size according to vibration force, frequency, air consumption, port size, and mounting space.
Suitable for Hopper, Bin, and Chute Flow
The K Series helps improve material discharge in hoppers, bins, silos, chutes, conveyors, and feeding systems. It can help reduce bridging, sticking, blocking, and uneven flow in selected powder or granular material applications.
Simple Structure for Machine Installation
The compact body design makes the K Series suitable for installation on packaging machines, feeding equipment, conveying systems, vibrating tables, and industrial process machinery.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, private label requirements, and OEM supply for pneumatic vibrator distributors, packaging equipment builders, powder handling equipment suppliers, and industrial automation customers.
Applications
Hopper and Bin Discharge
Used to improve material discharge from hoppers, bins, silos, and storage containers where powder or granules may bridge, stick, or flow unevenly.
Chute and Conveyor Systems
Suitable for chutes, conveyors, transfer points, feeding equipment, and material handling systems where vibration helps keep materials moving smoothly.
Powder and Granular Material Handling
Applied in powder processing, dry material handling, granule feeding, screening, batching, and industrial production systems where stable material flow is required.
Packaging Machinery
Used in packaging machines, filling equipment, weighing systems, dosing machines, and feeding lines to support material settling and flow control.
OEM Machinery and Maintenance Replacement
Suitable for OEM equipment builders, spare parts programs, distributor stock, and maintenance replacement projects that require compact pneumatic vibration components.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic vibrators, pneumatic solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, vacuum components, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including vibration force, frequency, air consumption, port size, working pressure, installation space, mounting method, and application material.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for pneumatic vibrator and compressed air component projects.
FAQ
What is the K Series pneumatic ball vibrator used for?
The K Series pneumatic ball vibrator is used to generate compressed-air-powered vibration for hoppers, bins, chutes, conveyors, packaging machines, feeding equipment, and powder handling systems.
How does a pneumatic ball vibrator work?
A pneumatic ball vibrator uses compressed air to move an internal ball at high speed. The rotating ball creates vibration that can help material flow through hoppers, bins, and chutes.
Can the vibration force be adjusted?
Yes. The vibration output can be adjusted by changing the air pressure. Customers should select the correct model according to material type, hopper size, flow problem, and required vibration force.
What models are available in the K Series?
The K Series includes K-8, K-10, K-13, K-16, K-20, K-25, K-32, and K-36 models for different vibration force, weight, and port size requirements.
What port sizes are available?
Different models use different air port sizes, including G1/4 and G3/8. Please confirm the required port size and thread type before ordering.
Where can this vibrator be installed?
It can be installed on hoppers, bins, silos, chutes, conveyors, feeders, packaging machines, vibrating tables, and other equipment where vibration is needed to support material flow.
What should be confirmed before ordering?
Please confirm the model, vibration force, frequency, air consumption, port size, working pressure, mounting space, equipment type, material condition, and order quantity.
