Specifications
| Parameter | Description |
|---|---|
| Product Name | Standard Tie Rod Pneumatic Cylinder |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Cylinder |
| Structure Type | Tie Rod Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.9 MPa |
| Bore Size Range | 32mm~200mm |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac SC Series |
| Applications | Automation / Transfer / Machinery Systems |

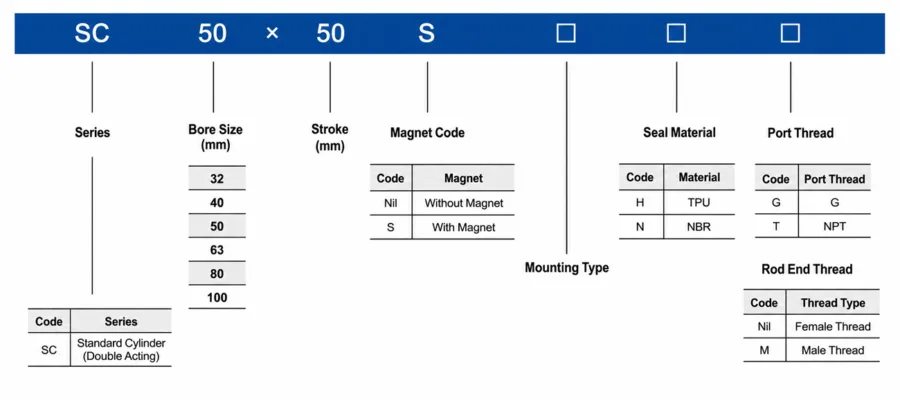

How to order
Product Features

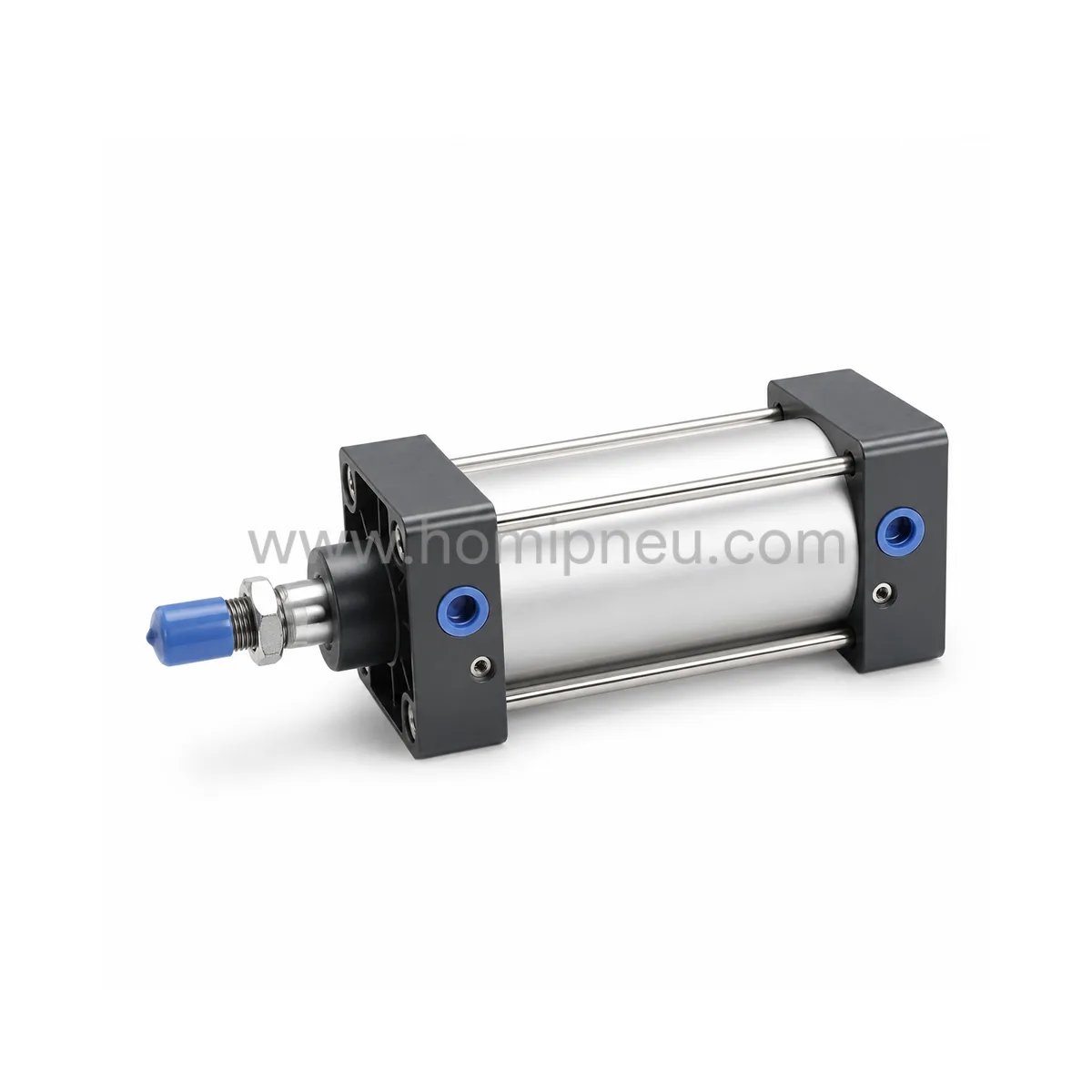

Standard Tie Rod Cylinder Structure
The SC Series uses a tie rod cylinder structure suitable for stable industrial pneumatic linear motion applications.
Reliable Double Acting Operation
Provides smooth extension and retraction movement for continuous industrial automation cycles.
Wide Bore and Stroke Range
Supports multiple bore sizes and long stroke configurations for different automation equipment requirements.
Adjustable Cushion Design
Cylinder end cushioning helps reduce impact during high-speed reciprocating movement.
Durable Aluminum Alloy Construction
The aluminum alloy cylinder body supports lightweight installation and long-term industrial use.
Suitable Replacement for Airtac SC Series
Designed for standard pneumatic cylinder applications requiring replacement for Airtac SC Series models.
Flexible Mounting Options
ISO standard mounting supports integration into machinery, transfer systems, fixtures, and automation production lines.
Applications
Industrial Automation Equipment
Used for pushing, pulling, lifting, feeding, and transfer operations in automated systems.
Packaging Machinery
Suitable for packaging, sorting, and positioning applications requiring stable pneumatic motion.
Material Handling Systems
Applied in transfer equipment and workpiece movement systems within industrial production lines.
Assembly Automation
Used in assembly machinery for positioning, pressing, and linear movement control.
Manufacturing Machinery
Suitable for industrial equipment requiring reliable standard pneumatic actuation.
Why Choose HOMIPNEU
- Stable standard cylinder manufacturing quality
- Reliable tie rod cylinder structure
- Wide bore and stroke configuration support
- ISO standard mounting for easier equipment integration
- Adjustable cushioning for smoother operation
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the SC Series interchangeable with Airtac SC Series?
Yes, the SC Series pneumatic cylinder is designed to be interchangeable with Airtac SC Series in many industrial automation applications.
What is the SC pneumatic cylinder used for?
It is commonly used for linear pushing, pulling, lifting, transfer, feeding, and positioning operations in industrial automation systems.
What type of cylinder structure does the SC Series use?
The SC Series uses a standard tie rod cylinder structure for stable double acting pneumatic motion.
Does the SC Series support long stroke applications?
Yes, the SC Series supports multiple stroke configurations suitable for industrial automation equipment.
Can customized cylinder specifications be supported?
Yes, customized bore sizes, stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SC Series pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
