Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Series | C Type Quick Fitting Series |
| Structure | Long Male Elbow (90°) |
| Connection | Tube to Male Thread |
| Installation | Threaded Connection |
| Thread Type | BSP / NPT / Metric |
| Material | Nickel-Plated Brass / Stainless Steel (Optional) |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Long male elbow fittings provide extended threaded connection and stable airflow direction change in pneumatic systems.
Model: Model: (Example PLLT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
- Long threaded design for deep installation
- 90° elbow structure for airflow direction change
- Push-to-connect quick tube installation
- Secure threaded connection for stability
- Suitable for thick panels or recessed ports
- Reliable sealing and long service life
Applications
Pneumatic control systems
Used for connecting tubes to deep or recessed threaded ports
Industrial automation equipment
Suitable for complex installations with limited space
Air distribution systems
Supports organized airflow routing with direction change
Machinery equipment
Ideal for installations requiring extended thread length
Panel and enclosure installations
Ensures secure connection through thick structures
Product Function

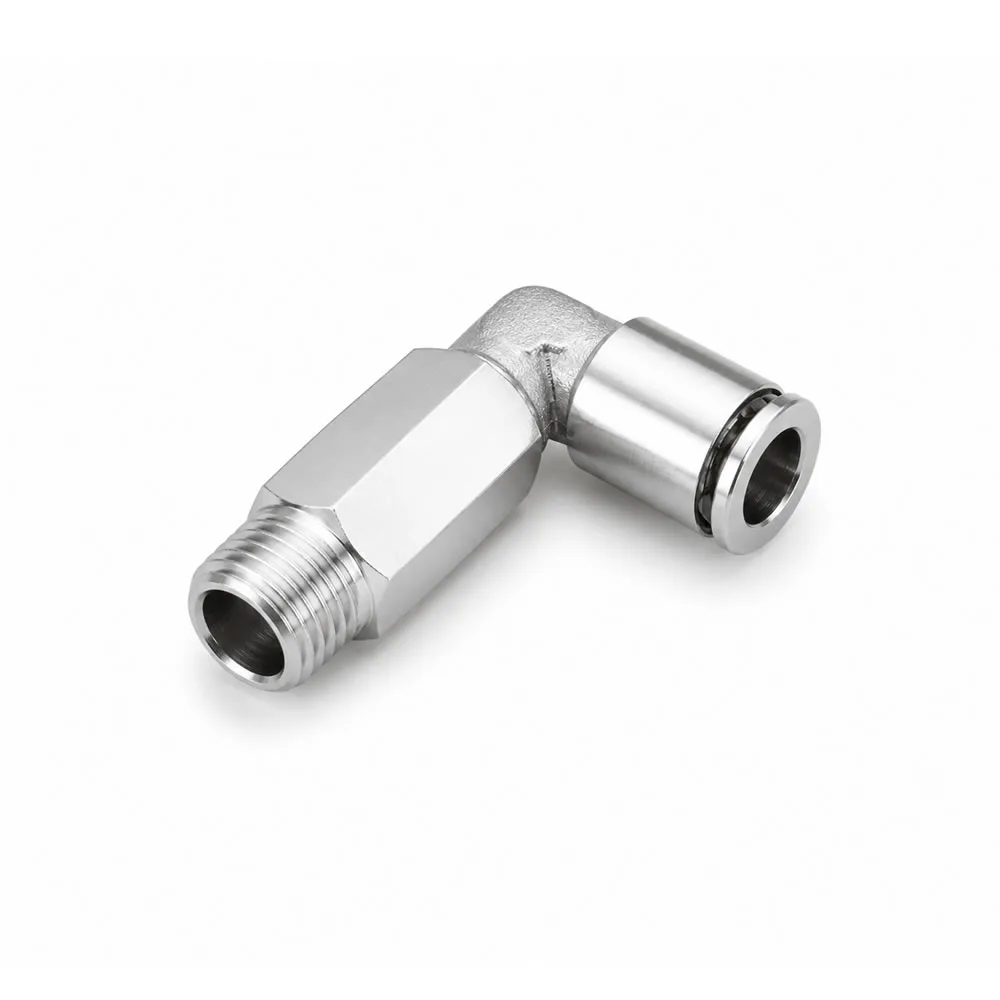

PLLT fittings are designed to connect pneumatic tubing to threaded ports while changing airflow direction by 90 degrees.
The extended thread design allows deeper engagement, improving connection stability in thick panels or recessed installation environments.
Compared to standard PL fittings, PLLT provides longer threaded reach, making it more suitable for special installation conditions.
Product Structure & Size Range
- Models: PLLT4-M5 / PLLT6-01 / PLLT8-02 / PLLT10-03
- Tube sizes: 4mm → 12mm
- Thread types: BSP / NPT / Metric
- Long male threaded structure
- 90° elbow configuration
Why Choose Our Pneumatic Fittings
- Professional PLLT pneumatic fitting manufacturer
- OEM / ODM customization for long male elbow fittings
- Reliable extended thread pneumatic connector solution
- Suitable for deep installation and panel applications
- Stable performance in industrial environments
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PLLT pneumatic fitting?
It is a long male elbow push-to-connect fitting used for extended threaded connection and airflow direction change.
Q2: What is the advantage of a long thread fitting?
It provides deeper engagement and more secure installation in thick panels or recessed ports.
Q3: What is a male elbow pneumatic fitting used for?
It connects tubing to threaded ports while changing airflow direction.
Q4: What tubing is compatible with PLLT fittings?
PLLT fittings are suitable for PU tubing and nylon tubing.
Q5: Can PLLT fittings be customized?
Yes, OEM/ODM customization is available for thread type, size, and materials.
