Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

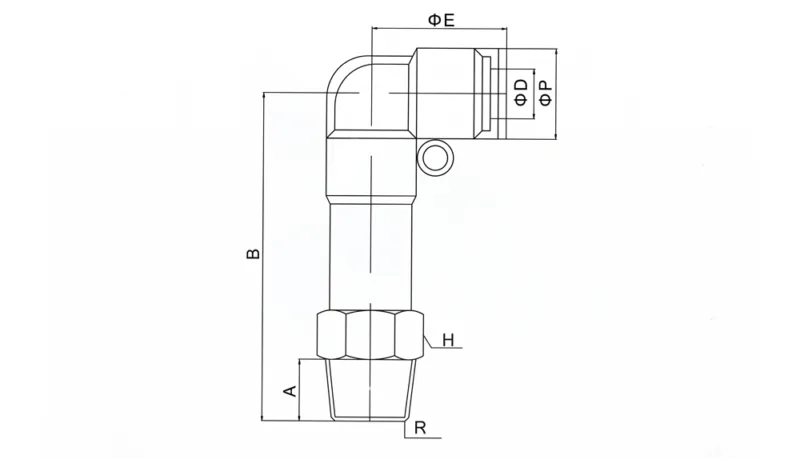

| Model | ΦD | E | B | ΦP | A | R | H |
| PLL4-M5 | 4 | 18 | 36.5 | 11 | 3.5 | M5 | 10 |
| PLL4-01 | 4 | 18 | 40 | 11 | 7 | R1/8 | 10 |
| PLL4-02 | 4 | 18 | 41 | 11 | 8 | R1/4 | 14 |
| PLL6-M5 | 6 | 20 | 38.5 | 13 | 3.5 | M5 | 12 |
| PLL6-01 | 6 | 20 | 42 | 13 | 7 | R1/8 | 12 |
| PLL6-02 | 6 | 20 | 43 | 13 | 8 | R1/4 | 14 |
| PLL6-03 | 6 | 20 | 44 | 13 | 9 | R3/8 | 17 |
| PLL6-04 | 6 | 20 | 45.5 | 13 | 10 | R1/2 | 21 |
| PLL8-01 | 8 | 22 | 44 | 15 | 7 | R1/8 | 14 |
| PLL8-02 | 8 | 22 | 45 | 15 | 8 | R1/4 | 14 |
| PLL8-03 | 8 | 22 | 46 | 15 | 9 | R3/8 | 17 |
| PLL8-04 | 8 | 22 | 47.5 | 15 | 10 | R1/2 | 21 |
| PLL10-01 | 10 | 26 | 47 | 18.5 | 7 | R1/8 | 17 |
| PLL10-02 | 10 | 26 | 48 | 18.5 | 8 | R1/4 | 17 |
| PLL10-03 | 10 | 26 | 49 | 18.5 | 9 | R3/8 | 17 |
| PLL10-04 | 10 | 26 | 50.5 | 18.5 | 10 | R1/2 | 21 |
| PLL12-01 | 12 | 28 | 49 | 21 | 7 | R1/8 | 19 |
| PLL12-02 | 12 | 28 | 50 | 21 | 8 | R1/4 | 19 |
| PLL12-03 | 12 | 28 | 51 | 21 | 9 | R3/8 | 19 |
| PLL12-04 | 12 | 28 | 52.5 | 21 | 10 | R1/2 | 21 |
| PLL14-02 | 14 | 30.5 | 52.5 | 23 | 8 | R1/4 | 22 |
| PLL14-03 | 14 | 30.5 | 53.5 | 23 | 9 | R3/8 | 22 |
| PLL14-04 | 14 | 30.5 | 54.5 | 23 | 10 | R1/2 | 22 |
| PLL16-02 | 16 | 33 | 54.5 | 25.5 | 8 | R1/4 | 24 |
| PLL16-03 | 16 | 33 | 55.5 | 25.5 | 9 | R3/8 | 24 |
| PLL16-04 | 16 | 33 | 56.5 | 25.5 | 10 | R1/2 | 24 |
Key Features
- 90° extended elbow design for better clearance
- Push-to-connect quick installation
- Male thread connection (tube to thread)
- Reduced interference in tight layouts
- Leak-proof sealing with O-ring structure
Applications
- Pneumatic automation systems
- Robotics and end-of-arm tooling
- Industrial machinery
- Air compressor systems
- Compact equipment installations
Widely used in pneumatic systems requiring height extension, space optimization, and flexible air routing.
Product Structure & Types

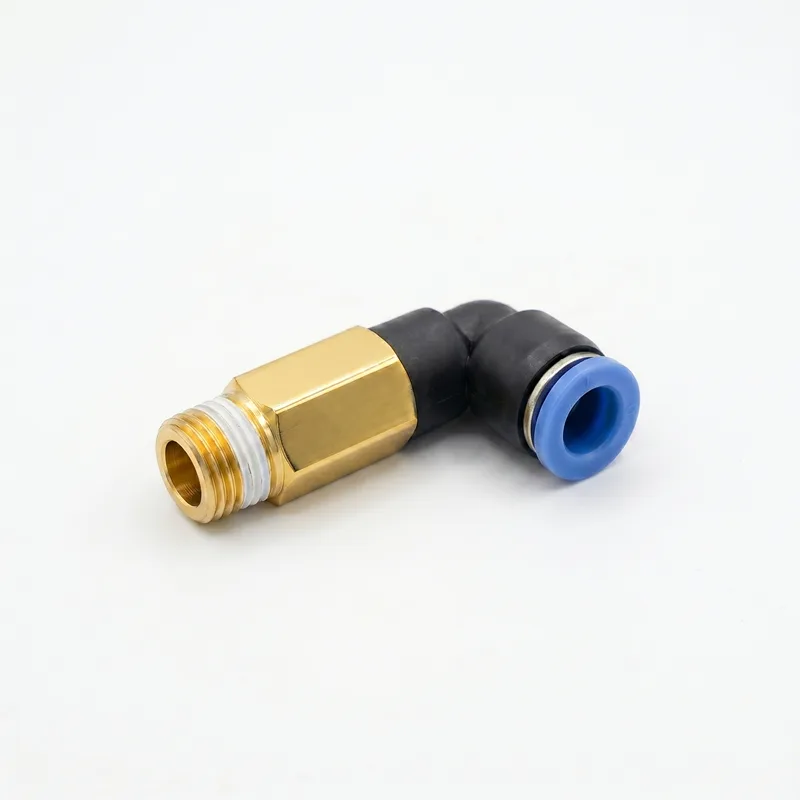

- PLL extended male elbow connector (tube → male thread 90°)
- Extended height body for clearance and accessibility
- Tube sizes: 4mm – 16mm
- Thread types: BSP, NPT, metric
- Common models: PLL4-M5, PLL6-01, PLL8-02, PLL10-03, PLL12-04
👉 Extended elbow fittings provide better positioning and reduced installation interference in complex layouts.
Why Choose Our Pneumatic Fittings
- Professional PLL pneumatic fitting supplier with extended design solutions
- OEM / ODM customization for extended elbow push to connect fitting projects
- Reliable pneumatic elbow connector for automation and industrial systems
- High-quality air fitting factory with strict QC standards
- Durable extended push-in pneumatic fittings for complex installations
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PLL pneumatic fitting?
It is an extended male elbow push-to-connect fitting used for 90-degree tube-to-thread connections.
Q2: What does “extended elbow fitting” mean?
It means the fitting has a longer body design, providing extra height and clearance for installation.
Q3: What is the advantage of a PLL fitting over a standard PL fitting?
PLL fittings reduce interference and allow easier installation in tight or crowded spaces.
Q4: How does a push-to-connect fitting work?
The tube is inserted and locked by internal gripping teeth, while an O-ring ensures sealing.
Q5: What tubing is compatible with PLL fittings?
They are suitable for PU tubing, nylon tubing, and similar pneumatic hoses.
Q6: Where are PLL fittings used?
They are widely used in automation systems, robotics, industrial machinery, and compact installations.
Q7: What is the working pressure of PLL fittings?
They typically operate within 0–1.0 MPa depending on configuration.
Q8: Can PLL fittings be customized?
Yes, OEM/ODM customization is available for thread type, tube size, materials, and design.
