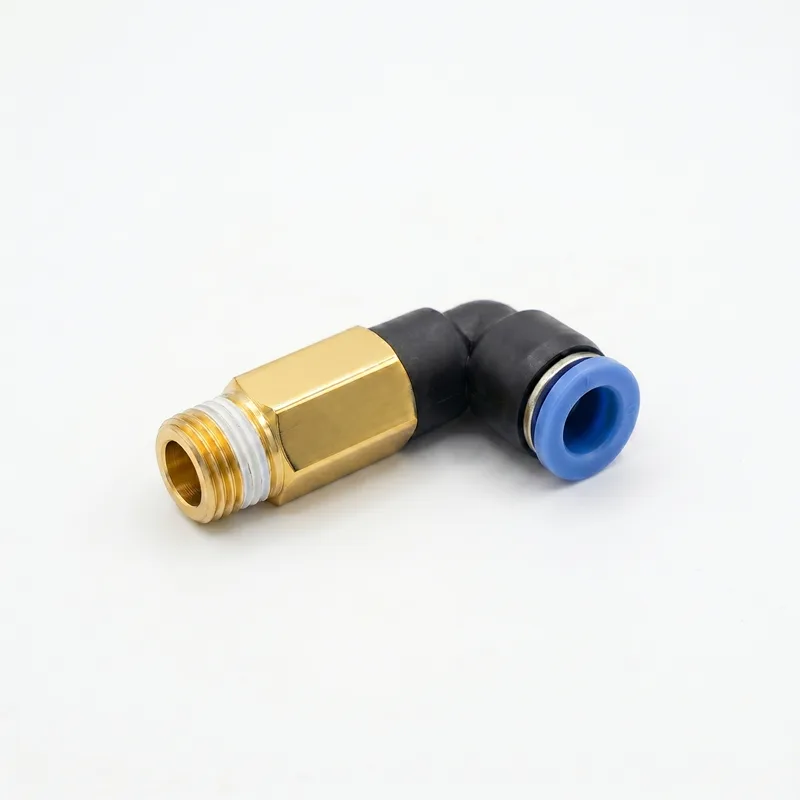

Specification Parameters
| Operating Fluid | Air |
| Type | Pneumatic Fittings |
| Proof Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Max. Operating Pressure | 0~0.9 MPa (0~9.2 kgf/cm²) |
| Ambient & Fluid Temperature | 0~60°C |
| Applicable Tubing | PU Tube, Nylon Tube |

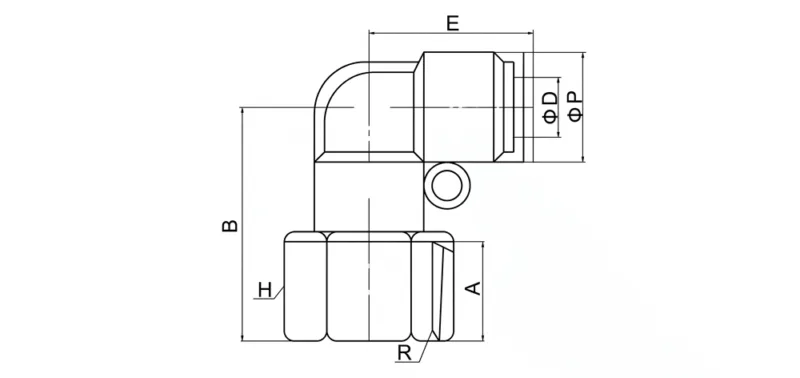

| Model | ΦD | E | B | ΦP | A | R | H |
| PLF4-M5 | 4 | 18 | 18.5 | 11 | 4.5 | M5 | 10 |
| PLF4-01 | 4 | 18 | 22.5 | 11 | 8 | R1/8 | 12 |
| PLF4-02 | 4 | 18 | 24 | 11 | 9.5 | R1/4 | 15 |
| PLF6-M5 | 6 | 20 | 20.5 | 13 | 4.5 | M5 | 12 |
| PLF6-01 | 6 | 20 | 24.5 | 13 | 8 | R1/8 | 12 |
| PLF6-02 | 6 | 20 | 26 | 13 | 9.5 | R1/4 | 15 |
| PLF6-03 | 6 | 20 | 27 | 13 | 10.5 | R3/8 | 19 |
| PLF6-04 | 6 | 20 | 28 | 13 | 11.5 | R1/2 | 24 |
| PLF8-01 | 8 | 22 | 24.5 | 15 | 10.5 | R1/8 | 14 |
| PLF8-02 | 8 | 22 | 28 | 15 | 9.5 | R1/4 | 15 |
| PLF8-03 | 8 | 22 | 29 | 15 | 10.5 | R3/8 | 24 |
| PLF8-04 | 8 | 22 | 30 | 15 | 11.5 | R1/2 | 19 |
| PLF10-01 | 10 | 26 | 27.5 | 18.5 | 8 | R1/8 | 17 |
| PLF10-02 | 10 | 26 | 27.5 | 18.5 | 11 | R1/4 | 17 |
| PLF10-03 | 10 | 26 | 32 | 18.5 | 10.5 | R3/8 | 19 |
| PLF10-04 | 10 | 26 | 33 | 18.5 | 11.5 | R1/2 | 24 |
| PLF12-01 | 12 | 28 | 29.5 | 21 | 8 | R1/8 | 19 |
| PLF12-02 | 12 | 28 | 29.5 | 21 | 12.5 | R1/4 | 19 |
| PLF12-03 | 12 | 28 | 34 | 21 | 10.5 | R3/8 | 19 |
| PLF12-04 | 12 | 28 | 35 | 21 | 11.5 | R1/2 | 24 |
Key Features
- 90° elbow design for directional air routing
- Female thread connection (internal thread)
- Push-to-connect quick installation
- Leak-proof sealing with O-ring structure
- Durable brass + engineering plastic construction
👉 Female threaded fittings connect to male threaded components in piping systems, ensuring compatibility and secure assembly.
Applications
- Pneumatic automation systems
- Industrial machinery
- Air compressor systems
- Robotics and assembly lines
- Packaging equipment
Widely used in pneumatic systems requiring directional routing, compact installation, and reliable air-tight connections.
Product Structure & Types

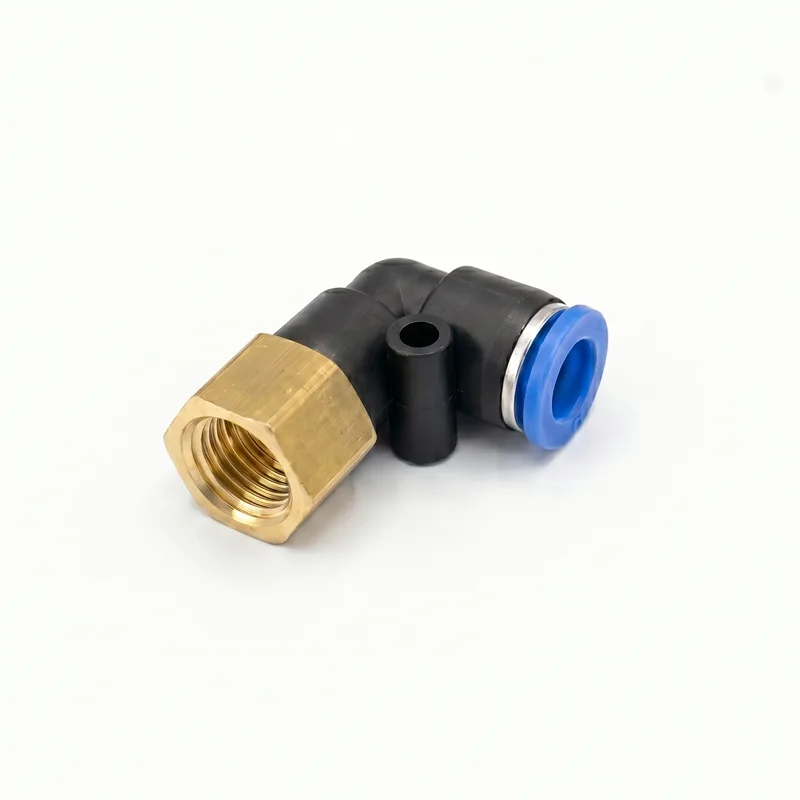

- PLF female elbow connector (tube → female thread 90°)
- Tube sizes: 4mm, 6mm, 8mm, 10mm, 12mm
- Thread types: BSP, NPT, metric
- Common models: PLF4-M5, PLF6-01, PLF8-02, PLF10-03, PLF12-04
👉 PLF fittings are designed for space-saving layouts and flexible piping direction control
Why Choose Our Pneumatic Fittings
- Professional PLF pneumatic fitting supplier with full size range
- OEM / ODM customization for female elbow push to connect fitting projects
- Reliable pneumatic elbow connector for automation and industrial systems
- High-quality air fitting factory with strict QC standards
- Durable push-in pneumatic fittings for leak-free compressed air applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PLF pneumatic fitting?
It is a push-to-connect female elbow fitting used for 90-degree tube-to-thread connections in pneumatic systems.
Q2: What does “female elbow fitting” mean?
It means the fitting has an internal threaded port and a 90-degree structure for directional connection.
Q3: What is the advantage of a 90 degree elbow fitting?
It allows tubing to change direction and saves installation space in compact systems.
Q4: How does a push-to-connect fitting work?
The tube is inserted and locked by internal gripping teeth, while an O-ring ensures sealing.
Q5: What is the difference between PL and PLF fittings?
PL uses male thread, while PLF uses female thread.
Q6: What tubing is compatible with PLF fittings?
They are suitable for PU tubing, nylon tubing, and similar pneumatic hoses.
Q7: Where are PLF fittings used?
They are widely used in automation systems, machinery, air compressors, and industrial equipment.
Q8: Can PLF fittings be customized?
Yes, OEM/ODM customization is available for thread types, tube sizes, and materials.
