Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Series | C Type Quick Fitting Series |
| Structure | Cross (Four-Way) |
| Connection | Tube to Tube |
| Installation | Push-to-Connect |
| Material | Nickel-Plated Brass / Stainless Steel (Optional) |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Cross fittings provide efficient four-way air distribution and simplify complex pneumatic piping systems.
Model: Model: (Example PZAT4)
| 4 |
| 6 |
| 8 |
| 10 |
| 12 |
| 14 |
| 16 |
Key Features
- Cross (four-way) connection structure
- Multi-direction air distribution capability
- Push-to-connect quick installation
- Compact design for reducing fitting quantity
- Multiple material options for different environments
- Reliable sealing and stable performance
Applications
Pneumatic control systems
Used for distributing air into multiple directions
Industrial automation equipment
Supports complex multi-line pneumatic connections
Air distribution systems
Ensures efficient airflow routing across multiple branches
Machinery equipment
Ideal for compact systems requiring multi-output connections
PU and nylon tubing systems
Compatible with standard pneumatic tubing
Product Function

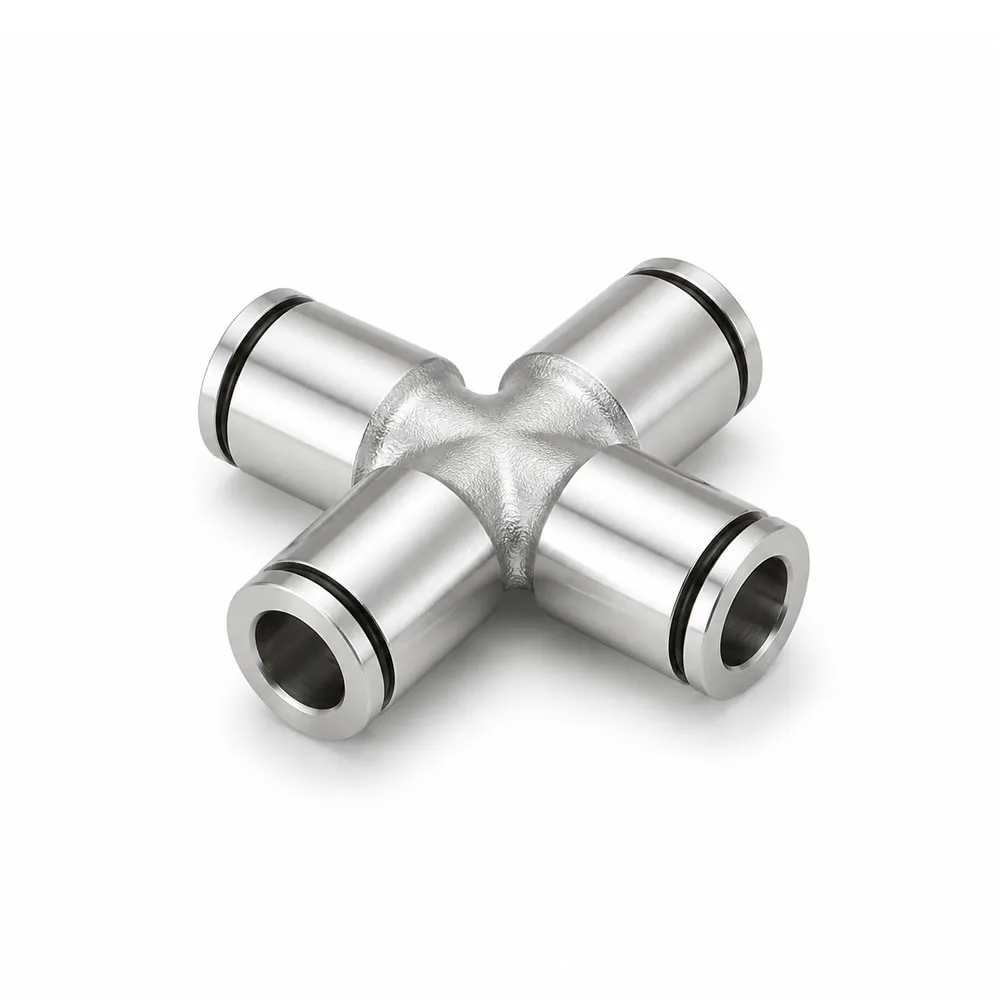

PZAT fittings are designed to connect four pneumatic tubes in a cross-shaped structure.
They enable multi-directional air distribution from a single connection point, improving system flexibility and reducing the need for additional connectors.
Compared to tee fittings, cross fittings provide an extra branch, making them suitable for more complex pneumatic routing systems.
Product Structure & Size Range
- Models: PZAT4 / PZAT6 / PZAT8 / PZAT10 / PZAT12
- Tube sizes: 4mm → 12mm
- Cross four-way structure
- Push-to-connect tube interface
- Compact multi-branch design
Why Choose Our Pneumatic Fittings
- Professional PZAT pneumatic fitting manufacturer
- OEM / ODM customization for cross pneumatic fittings
- Reliable push to connect four-way connector solution
- Multiple material options including stainless steel
- Suitable for complex pneumatic distribution systems
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PZAT pneumatic fitting?
It is a cross push-to-connect fitting used for four-way tube connection.
Q2: What is a cross pneumatic fitting used for?
It is used to distribute air into multiple directions from a single connection point.
Q3: What materials are available for PZAT fittings?
PZAT fittings are available in nickel-plated brass and stainless steel options.
Q4: What tubing is compatible with PZAT fittings?
PZAT fittings are suitable for PU tubing and nylon tubing.
Q5: Can PZAT fittings be customized?
Yes, OEM/ODM customization is available for size, material, and branding.
CTA
Looking for reliable PZAT cross push-to-connect pneumatic fittings?
Contact us today for OEM/ODM solutions, bulk pricing, and fast delivery.
