Specifications
| Parameter | Details |
|---|---|
| Product Type | Pneumatic Fittings |
| Series | C Type Quick Fitting Series |
| Structure | Bulkhead Female |
| Connection | Tube to Female Thread |
| Installation | Panel Mount |
| Thread Type | BSP / NPT / Metric |
| Material | Nickel-Plated Brass / Stainless Steel (Optional) |
| Operating Fluid | Air |
| Working Pressure | 0 – 1.0 MPa |
| Temperature Range | 0 – 60°C |
| Applicable Tubing | PU / Nylon Tube |
Bulkhead female fittings provide secure panel-through installation and reliable tube-to-thread connection in pneumatic systems.
Model: Model: (Example PZRT4-M5)
| 4-M5 | 6-04 | 10-03 | 14-03 |
| 4-01 | 8-01 | 10-04 | 14-04 |
| 4-02 | 8-02 | 12-01 | 14-06 |
| 6-M5 | 8-03 | 12-02 | 16-02 |
| 6-01 | 8-04 | 12-03 | 16-03 |
| 6-02 | 10-01 | 12-04 | 16-04 |
| 6-03 | 10-02 | 14-02 | 16-06 |
Key Features
- Bulkhead panel-mount structure
- Female threaded connection interface
- Push-to-connect quick tube installation
- Secure and stable mounting in panels
- Multiple material options for different environments
- Reliable sealing and long service life
Applications
Pneumatic control panels
Used for panel-through tube connection with threaded interface
Industrial automation systems
Provides stable connection for valves and pneumatic components
Air distribution systems
Supports structured and organized pipeline layouts
Machinery equipment
Ideal for control cabinets and enclosed installations
Threaded pneumatic connections
Suitable for connecting external threaded devices
Product Function

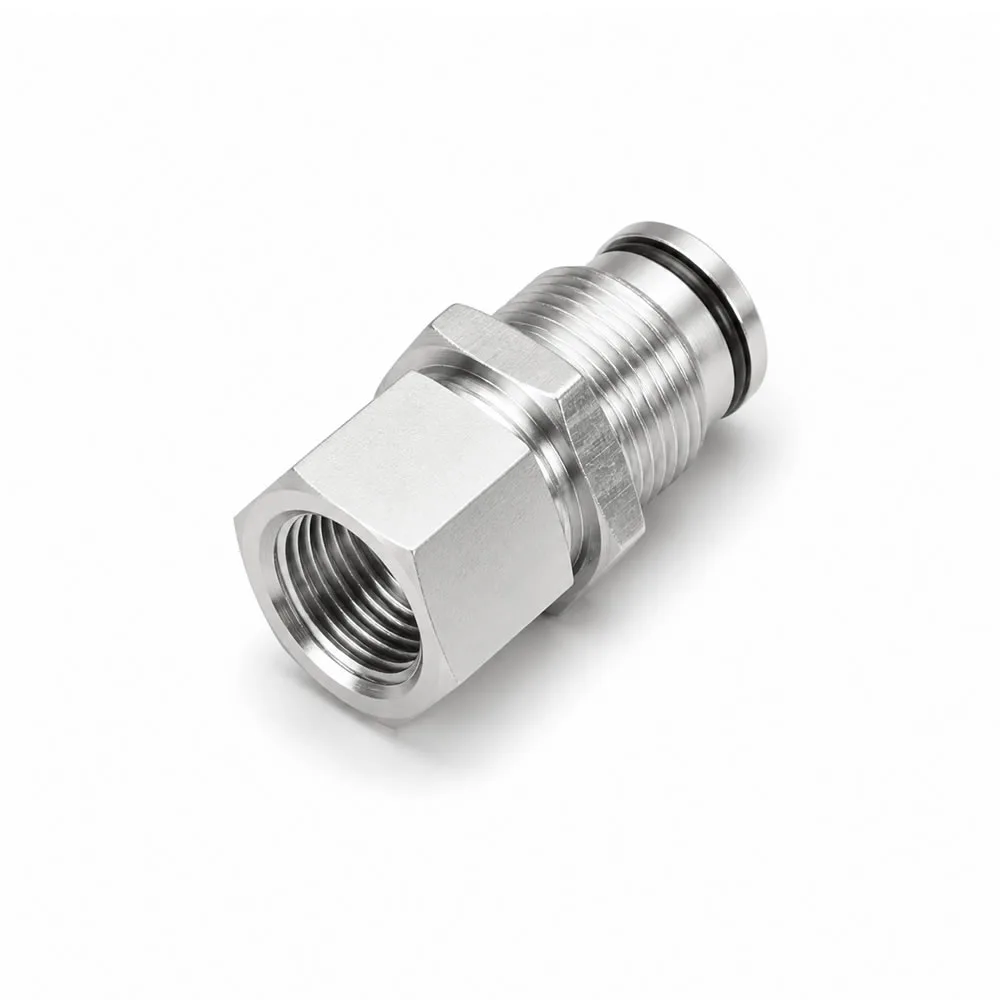

PMFT fittings are designed to pass pneumatic tubing through panels while providing a female threaded connection point.
They enable secure integration of pneumatic tubing with threaded components such as valves, regulators, and manifolds, improving system flexibility and installation stability.
Compared to standard bulkhead unions, PMFT adds a female threaded interface, making it more versatile for system integration.
Product Structure & Size Range
- Models: PMFT4 / PMFT6 / PMFT8 / PMFT10 / PMFT12
- Tube sizes: 4mm → 12mm
- Thread types: BSP / NPT / Metric
- Bulkhead mounting with lock nut
- Push-to-connect tube interface
Why Choose Our Pneumatic Fittings
- Professional PMFT pneumatic fitting manufacturer
- OEM / ODM customization for bulkhead female fittings
- Reliable panel mount female connector solution
- Multiple material options including stainless steel
- Suitable for industrial automation systems
- Fast delivery and global B2B supply support
FAQ
Q1: What is a PMFT pneumatic fitting?
It is a bulkhead female push-to-connect fitting used for panel-mounted tube-to-thread connection.
Q2: What is a bulkhead female fitting used for?
It allows tubing to pass through panels while providing a threaded connection point for components.
Q3: What materials are available for PMFT fittings?
PMFT fittings are available in nickel-plated brass and stainless steel options.
Q4: What tubing is compatible with PMFT fittings?
PMFT fittings are suitable for PU tubing and nylon tubing.
Q5: Can PMFT fittings be customized?
Yes, OEM/ODM customization is available for thread type, size, and material.
