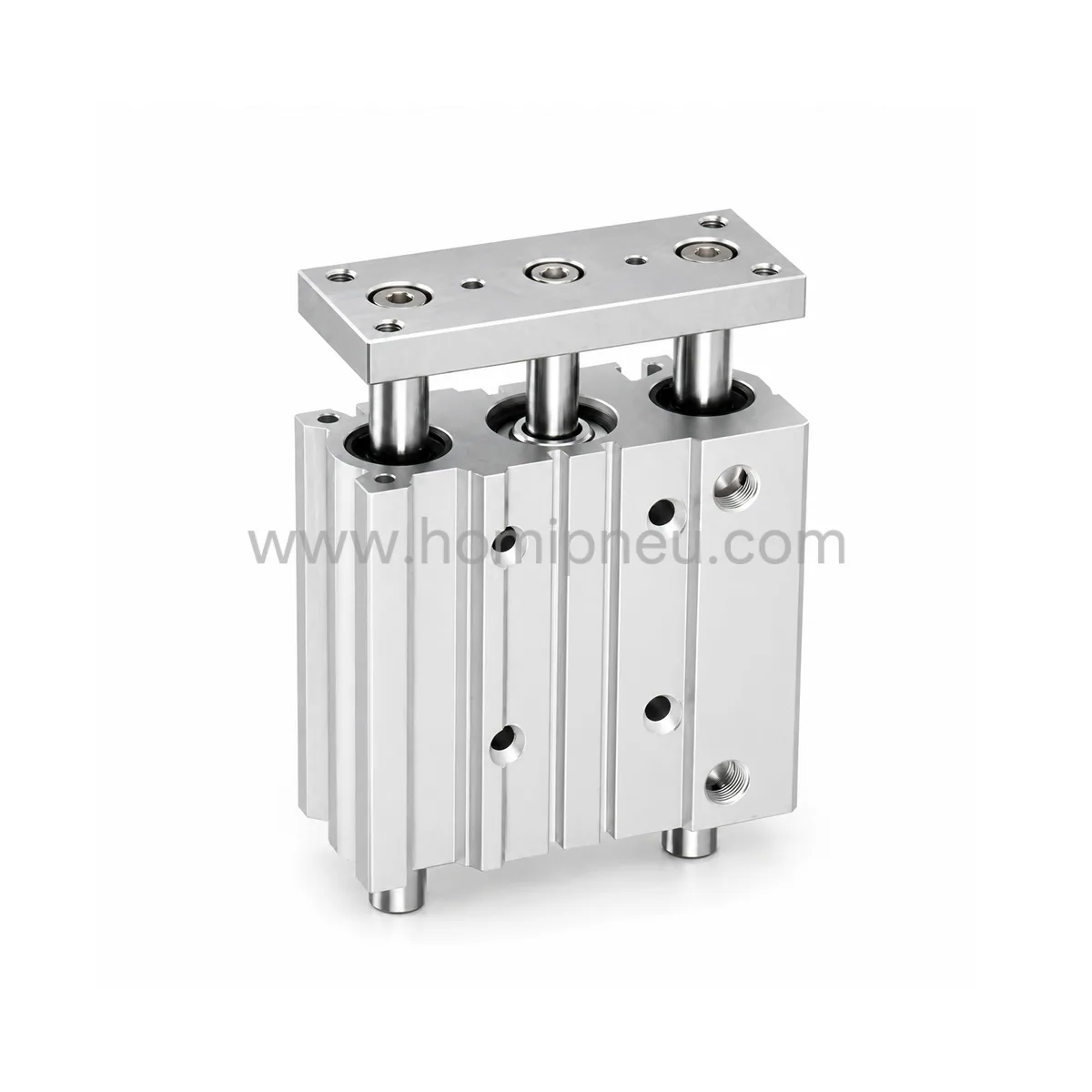

Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact Guide Cylinder |
| Series | MGPL Series |
| Alternative Model | TCL Series |
| Cylinder Type | Guided Pneumatic Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Ball Bushing Guide |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MGPL Series / Airtac TCL Series |
| Applications | Positioning / Transfer / Stopper Systems |

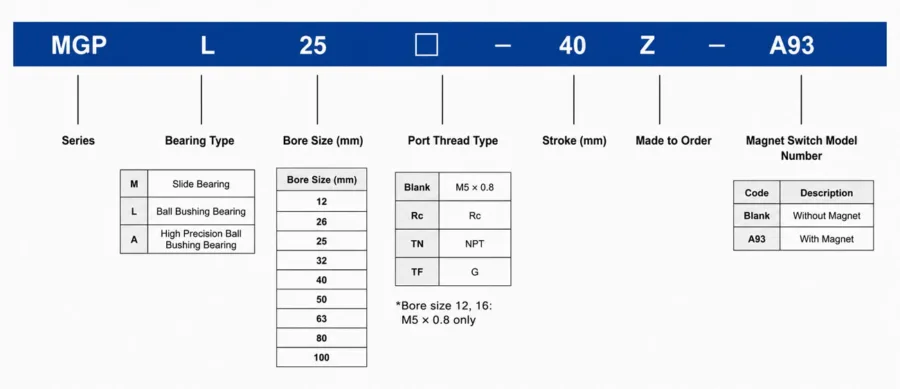

How to order
Product Features
Integrated Guide Cylinder Structure
The MGPL Series integrates pneumatic actuation and guide rods into a compact body structure for stable linear motion.
Stable Guided Linear Movement
Provides smooth and repeatable guided motion suitable for positioning, transfer, and stopper applications.
Compact Space-Saving Design
The compact integrated structure reduces installation space while maintaining reliable load support performance.
High Rigidity Guide Mechanism
The guide rod structure helps improve lateral load resistance and movement stability during repeated operation cycles.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for reliable long-term industrial automation use.
Suitable Replacement for SMC MGPL Series and Airtac TCL Series
Designed for guided pneumatic motion applications requiring replacement for SMC MGPL Series and Airtac TCL Series models.
Easy Automation Equipment Integration
ISO standard mounting supports convenient installation into machinery, fixtures, conveyor systems, and automation equipment.
Applications
Transfer and Positioning Systems
Used for guided transfer and positioning movement in industrial automation equipment.
Stopper and Lifting Applications
Suitable for conveyor stopper systems and lifting mechanisms requiring stable guided motion.
Assembly Automation
Applied in pushing, feeding, and positioning applications within assembly machinery.
Packaging Machinery
Used in packaging equipment requiring compact guided pneumatic movement.
Industrial Automation Equipment
Suitable for fixtures, robotic transfer systems, and automated production machinery.
Why Choose HOMIPNEU
- Stable guide cylinder manufacturing quality
- Compact integrated structure for automation equipment
- Smooth and repeatable guided linear motion
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and system integrators
FAQ
Is the MGPL Series interchangeable with SMC MGPL Series and Airtac TCL Series?
Yes, the MGPL Series compact guide cylinder is designed to be interchangeable with SMC MGPL Series and Airtac TCL Series in many industrial automation applications.
What is the MGPL compact guide cylinder used for?
It is commonly used for positioning, transfer, stopper systems, lifting applications, and guided linear motion automation equipment.
What type of guide mechanism does the MGPL Series use?
The MGPL Series uses a ball bushing guide structure for stable guided movement and improved load resistance.
Is it suitable for compact automation equipment?
Yes, the compact integrated guide cylinder design is suitable for machinery with limited installation space.
Can customized stroke and mounting solutions be supported?
Yes, customized stroke lengths, mounting structures, and application-specific automation solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MGPL Series compact guide cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
