Specifications
| Parameter | Description |
|---|---|
| Product Name | Round Body Pneumatic Cylinder |
| Series | CDG1BN Series |
| Cylinder Type | Standard Pneumatic Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.05~1.0 MPa |
| Body Material | Aluminum Alloy Tube |
| Cushion Type | Rubber Cushion / Air Cushion |
| Structure Type | Round Body Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CDG1BN Series |
| Applications | Transfer / Pushing / Automation Systems |

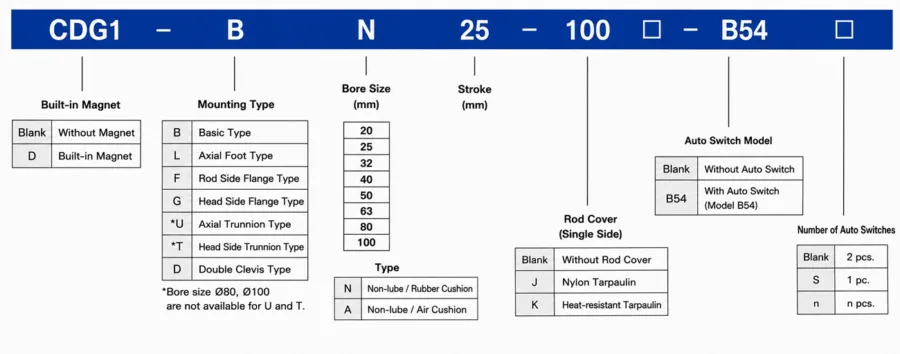

How to order
Product Features
Standard Round Body Cylinder Structure
The CDG1BN Series uses a round body cylinder structure suitable for industrial pneumatic automation applications.
Smooth Linear Motion Performance
Designed for stable pushing, transfer, positioning, and feeding movement in automation systems.
Compact and Practical Design
The compact structure supports practical installation into machinery, fixtures, and industrial equipment.
Reliable Double Acting Operation
Supports repeated forward and backward motion during continuous industrial automation cycles.
Flexible Cushion Configurations
Available with rubber cushion and air cushion structures depending on operating requirements.
Suitable Replacement for SMC CDG1BN Series
Designed for pneumatic cylinder applications requiring replacement for SMC CDG1BN Series models.
Easy Equipment Integration
ISO standard mounting supports convenient installation into transfer systems, assembly equipment, and automation machinery.
Applications
Automation Equipment
Used for pushing, positioning, transfer, and feeding movement in industrial automation systems.
Packaging Machinery
Suitable for loading, sorting, and transfer operations in packaging equipment.
Assembly Systems
Applied in component handling and positioning operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Industrial Machinery
Suitable for general-purpose pneumatic linear motion applications across industrial equipment.
Why Choose HOMIPNEU
- Stable pneumatic cylinder manufacturing quality
- Smooth and reliable linear motion performance
- Compact structure for easier equipment integration
- Flexible cushion configurations for different applications
- ISO standard mounting for practical installation
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CDG1BN Series interchangeable with SMC CDG1BN Series?
Yes, the CDG1BN round body pneumatic cylinder is designed to be interchangeable with SMC CDG1BN Series in many industrial automation applications.
What is the CDG1BN pneumatic cylinder used for?
It is commonly used for pushing, transfer, positioning, feeding, and linear motion applications in industrial automation systems.
What cushion types are available?
The CDG1BN Series supports rubber cushion and air cushion configurations depending on application requirements.
What type of structure does the CDG1BN Series use?
The CDG1BN Series uses a standard round body pneumatic cylinder structure.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CDG1BN round body pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and industrial automation integrators.
