Specifications
| Parameter | Specification |
|---|---|

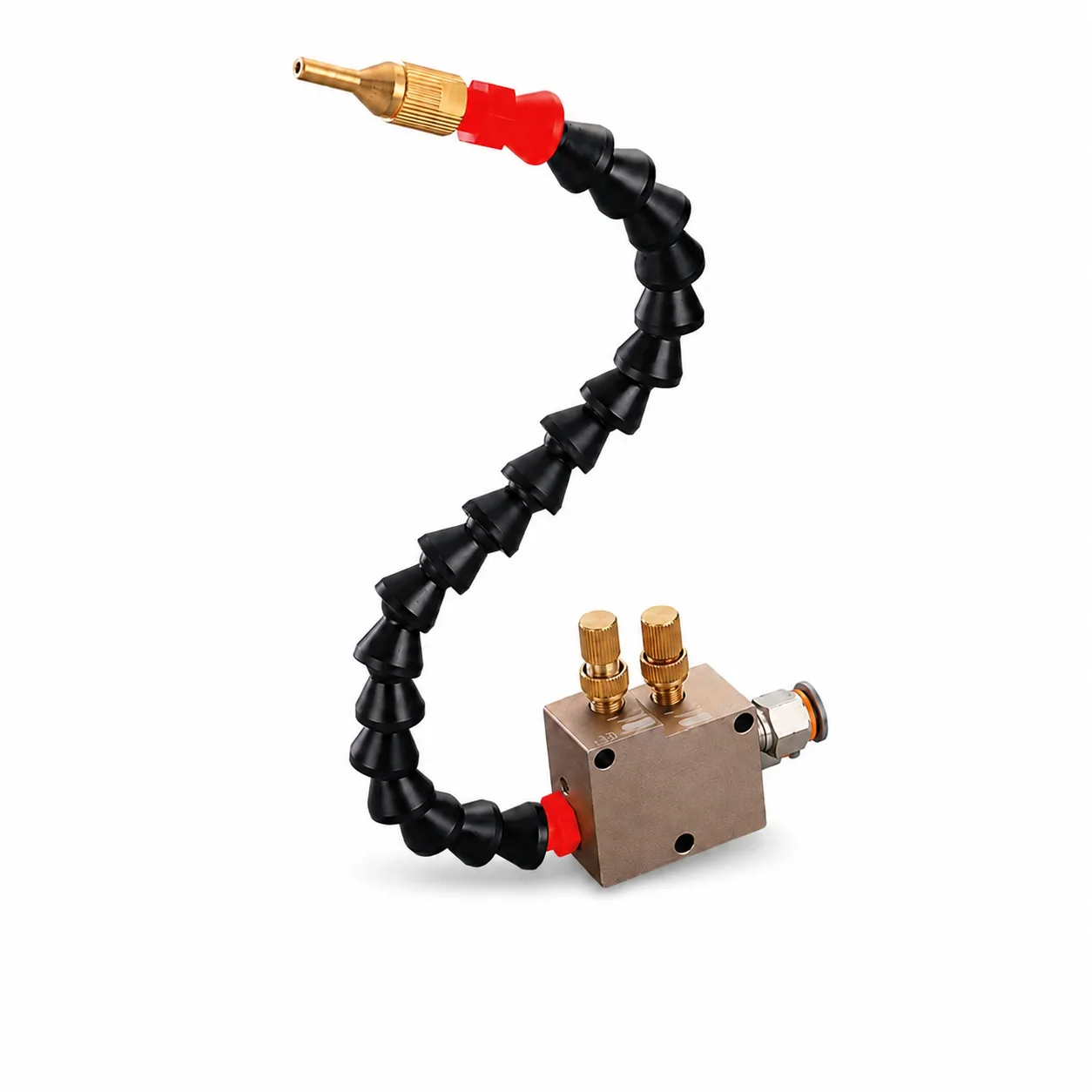

| Product Name | AS300 Air-Oil Mist Cooling Nozzle |
| Model | AS300 |
| Product Type | Adjustable air-oil cooling and lubrication nozzle |
| Standard Nozzle Length | 300 mm |
| Flexible Coolant Hose | 1/4″ adjustable coolant hose |
| Nozzle Material | Copper |
| Base Material | Aluminum |
| Oil Inlet | 4 mm push-in connector |
| Air Inlet | 8 mm push-in connector |
| Airflow Control | Independent air flow adjustment screw |
| Oil Flow Control | Independent oil flow adjustment screw |
| Position Adjustment | Flexible multi-section hose |
| Direction Adjustment | Nozzle direction can be adjusted manually |
| Length Option | Nozzle length can be customized |
| Typical Uses | CNC machining, turning, milling, drilling, cutting, cooling, and lubrication |
| Selection Checks | Confirm hose length, air tube size, oil tube size, working pressure, lubricant type, and mounting position |
Model Selection and Dimensions
| Model | Cooling Nozzle |
|---|---|
| AS300 | 300 mm |
*Nozzle length can be customized

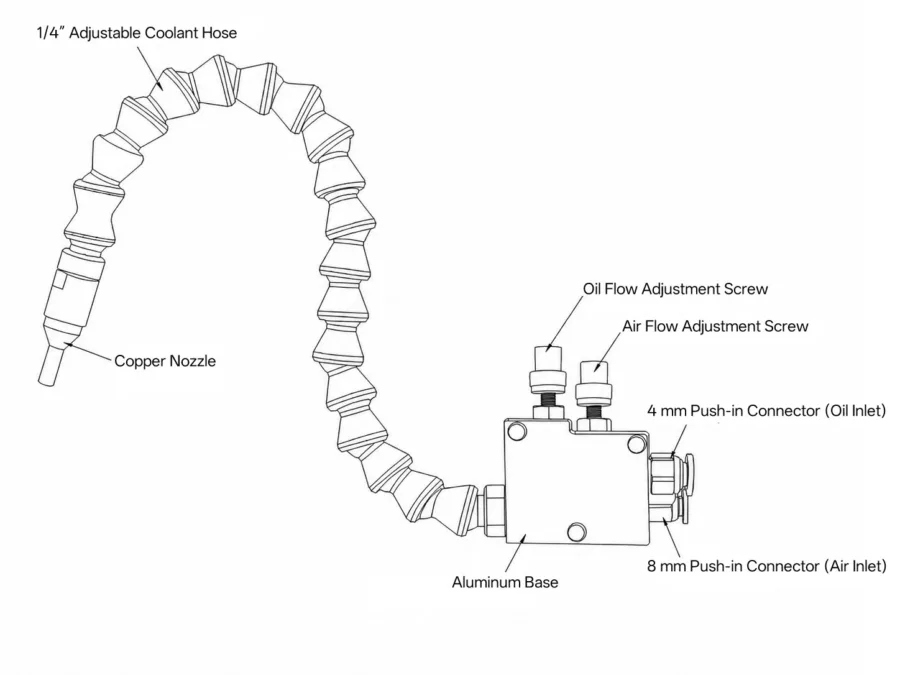

Product Features
Independent Air and Oil Flow Control
Separate adjustment screws allow the operator to control the compressed air and oil supply independently according to the machining process, cutting tool, and required cooling effect.
300 mm Flexible Coolant Hose
The standard AS300 model uses a 300 mm flexible coolant hose that can be positioned toward the cutting tool, workpiece, or machining area.
Adjustable Spray Direction
The manually assembled multi-section hose can be bent and rotated to direct the cooling and lubrication output where it is required.
Copper Outlet Nozzle
The copper nozzle provides a compact outlet for directing the air-oil mixture toward a localized cutting or machining area.
Separate Push-In Connections
The nozzle assembly includes a 4 mm push-in connector for the oil inlet and an 8 mm push-in connector for the compressed air inlet.
Aluminum Mounting Base
The aluminum base supports the adjustment components and provides a compact structure for installation near machine tools and processing equipment.
Applications
CNC Machine Tools
Suitable for directing cooling and lubrication toward cutting tools and workpieces during automated machining operations.
Lathe Operations
Can be positioned near the turning tool to support localized cooling, chip removal, and lubrication during machining.
Milling Machines
Provides adjustable cooling and lubrication around milling cutters, workpieces, fixtures, and machining surfaces.
Drilling Equipment
Suitable for directing an air-oil mixture toward drill bits and drilling points to support cooling and reduce dry cutting conditions.
Grinding and Cutting Machines
Can be used for localized cooling, lubrication, and light chip removal around cutting and grinding areas.
Why Choose HOMIPNEU
HOMIPNEU supplies adjustable cooling nozzles, pneumatic fittings, air tubing, oil tubing, air blow guns, solenoid valves, cylinders, and air preparation components for industrial equipment.
We help customers confirm nozzle length, hose size, air and oil inlet connections, mounting position, operating conditions, packaging, and order quantity before production or shipment.
Bulk quantities, customized nozzle lengths, private-label packaging, export-ready cartons, and product selection support are available for distributors and machinery manufacturers.
FAQ
What is the AS300 cooling nozzle used for?
It is used to direct compressed air and cooling or lubricating oil toward cutting tools and workpieces during machining.
What is the standard nozzle length?
The standard AS300 cooling nozzle length is 300 mm.
Can the spray direction be adjusted?
Yes. The flexible multi-section coolant hose can be bent and positioned manually to direct the output toward the required area.
Can the air and oil flow be adjusted separately?
Yes. The assembly has independent adjustment screws for the air supply and oil supply.
What size is the air inlet?
The air inlet uses an 8 mm push-in connector.
What size is the oil inlet?
The oil inlet uses a 4 mm push-in connector.
What material is used for the nozzle?
The outlet nozzle is made from copper.
What material is used for the base?
The mounting and adjustment base is made from aluminum.
Can the nozzle length be customized?
Yes. Different nozzle lengths can be supplied according to the machine layout, mounting position, and required working reach.
What should be confirmed before ordering?
Confirm the required nozzle length, air tube size, oil tube size, working pressure, lubricant type, installation position, quantity, and packaging requirements.
Customization & Supply Support
HOMIPNEU supports customized nozzle lengths, air and oil connector selection, product labeling, packaging design, and bulk production for machine-tool cooling nozzles. Customers can provide the required hose length, tube sizes, mounting layout, operating conditions, quantity, and application details for accurate selection and quotation.
