Specifications
| Parameter | Specification |
|---|---|
| Product Name | ACP Series Modular Coolant Hose |
| Product Type | Adjustable segmented coolant hose |
| Suitable Fluids | Cooling water, cutting fluid, lubricating oil, and other compatible industrial fluids |
| Adjustment Method | Manually adjustable segmented structure |
| Nozzle Options | Round nozzle and flat nozzle options |
| Standard Length | 300 mm |
| Connection Options | 1/4 PT, 3/8 PT, and 1/2 PT |
| Installation | Threaded connection |
| Main Applications | CNC machines, machine tools, hydraulic equipment, machining centers, and industrial cooling systems |
| Material Characteristics | Non-conductive, corrosion-resistant, and suitable for industrial operating environments |
| Customization | Custom lengths available |
Order Model

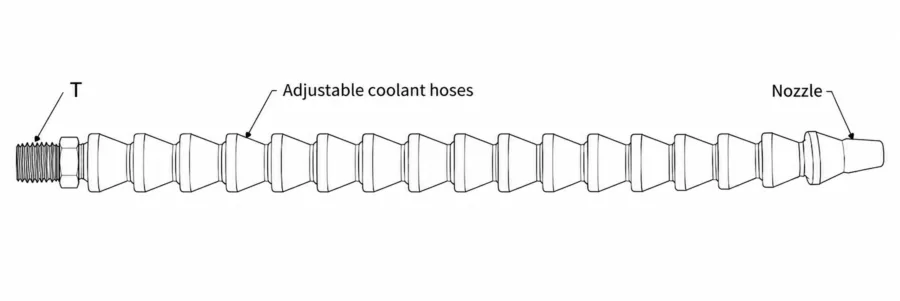

Model Selection and Dimensions
| Model | T | Round Nozzle Size | Flat Nozzle Width | Length |
| ACP-02300 | 1/4PT | 4mm | 10mm | 300mm |
| ACP-03300 | 3/8PT | 6mm | 20mm | 300mm |
| ACP-04300 | 1/2PT | 8mm | 25mm | 300mm |
*Custom lengths available
Product Features
Flexible Segmented Structure
The ACP Series uses an adjustable segmented structure that can be positioned by hand. Operators can direct coolant accurately toward cutting tools, workpieces, bearings, molds, or other required areas.
Round and Flat Nozzle Options
Different nozzle shapes are available for concentrated or wider fluid delivery. Round nozzles provide a focused stream, while flat nozzles distribute coolant across a broader working area.
Multiple Thread Sizes
The series includes 1/4 PT, 3/8 PT, and 1/2 PT connection options, making it suitable for different machine tool cooling systems and fluid supply requirements.
Suitable for Oil and Water Delivery
The hose can be used to direct cooling water, cutting fluids, lubricating oil, and other compatible industrial fluids in machining and equipment cooling applications.
Corrosion-Resistant Construction
The material is suitable for contact with common industrial cooling fluids and provides practical corrosion resistance for regular machine tool use.
Non-Conductive Design
The non-conductive structure makes the hose suitable for installation around electrical machinery and processing equipment when used under appropriate operating conditions.
Custom Lengths Available
In addition to the standard 300 mm configuration, custom hose lengths can be supplied for different machine layouts and installation positions.
Applications
CNC Machine Tools
Directs coolant toward cutting tools and workpieces during drilling, milling, turning, grinding, and other machining operations.
Machining Centers
Used for localized cooling, chip flushing, tool lubrication, and temperature control inside automated machining equipment.
Hydraulic Machinery
Suitable for directing oil or cooling fluid in hydraulic systems, lubrication stations, and equipment maintenance applications.
Grinding Equipment
Provides adjustable coolant delivery toward grinding wheels and workpiece contact areas to help control temperature and remove particles.
Industrial Cooling Systems
Used in equipment that requires adjustable fluid direction for localized cooling, washing, lubrication, or chip removal.
Mold and Fixture Cooling
Can direct cooling fluid toward molds, jigs, fixtures, bearings, and other machine components that require targeted temperature control.
Why Choose HOMIPNEU
HOMIPNEU supplies modular coolant hoses, cooling nozzles, air blow guns, pneumatic fittings, air hoses, solenoid valves, cylinders, and other industrial pneumatic components.
We help customers confirm the required thread size, nozzle shape, nozzle outlet size, hose length, working fluid, installation position, and order quantity before production.
For distributors and machine manufacturers, HOMIPNEU supports bulk supply, export packaging, private labeling, and OEM customization for industrial cooling products.
FAQ
What is the ACP Series coolant hose used for?
It is used to direct cooling water, cutting fluid, lubricating oil, and other compatible fluids toward tools, workpieces, molds, bearings, and machine components.
Can the hose direction be adjusted?
Yes. The segmented structure can be adjusted manually, allowing the nozzle direction and outlet position to be changed according to the working area.
What thread sizes are available?
The standard connection options are 1/4 PT, 3/8 PT, and 1/2 PT.
What is the standard hose length?
The listed ACP-02300, ACP-03300, and ACP-04300 models have a standard length of 300 mm.
Are round and flat nozzles available?
Yes. Round and flat nozzle configurations are available for concentrated or wider fluid delivery.
Can the coolant hose length be customized?
Yes. Custom lengths can be supplied according to the machine structure, cooling position, installation space, and project requirements.
Can this product be used with compressed air?
The ACP Series is mainly presented as a fluid cooling hose for oil and water delivery. The operating medium and pressure should be confirmed before using it with compressed air.
What should be confirmed before ordering?
Please confirm the model, thread size, nozzle shape, outlet size, required length, working fluid, installation position, quantity, and packaging requirements.
Customization Support
HOMIPNEU can provide different thread sizes, round or flat nozzle configurations, customized hose lengths, product labeling, and export packaging. Customers should provide the required fluid type, connection size, nozzle outlet, installation dimensions, working environment, and expected quantity for accurate model selection.
