Specifications
| Parameter | Specification |
|---|---|

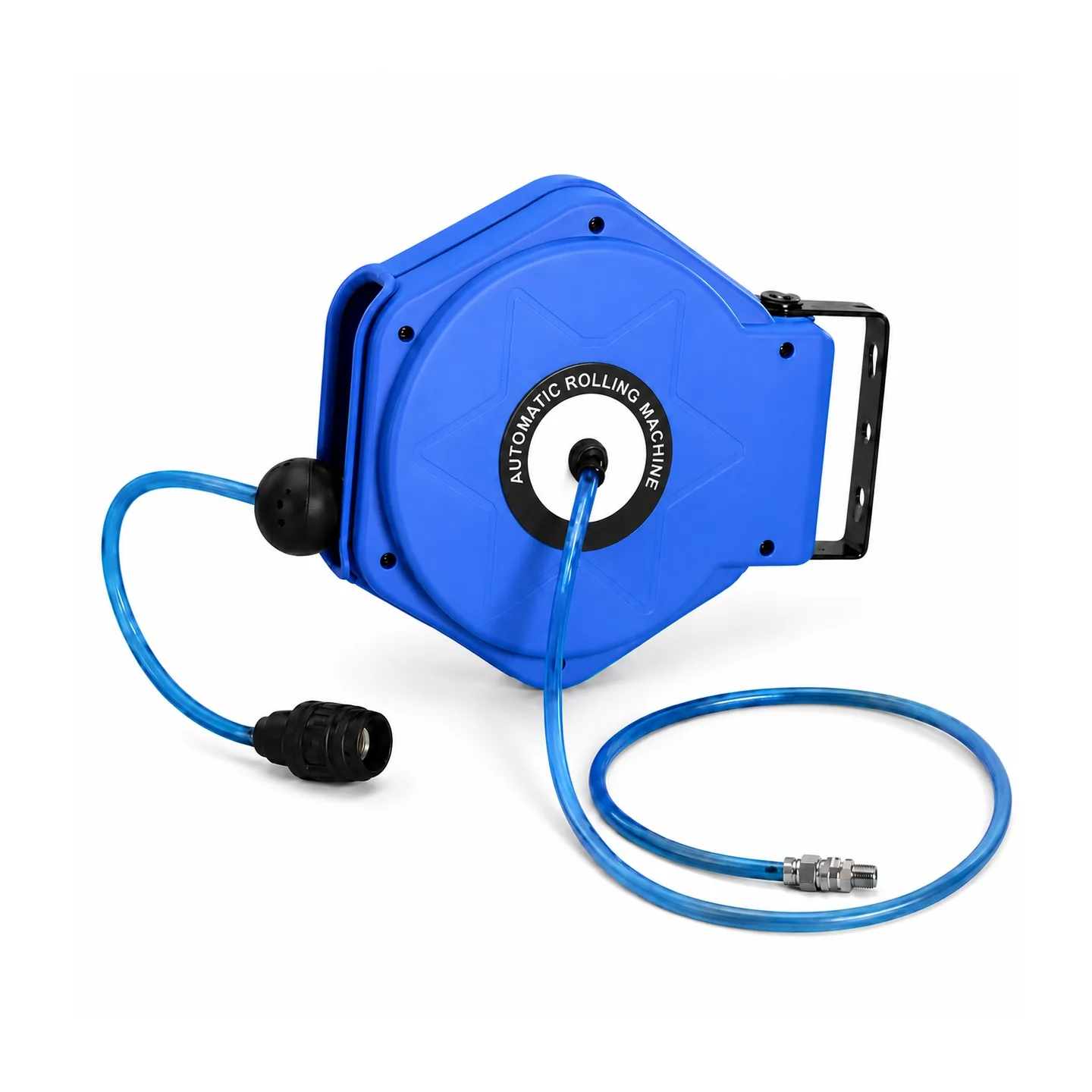

| Product Name | Mini Automatic Retractable Air Hose Reel |
| Product Type | Automatic rewind pneumatic hose reel |
| Hose Size | 8 × 5 mm |
| Hose Length | 9 m |
| Hose Material | PU braided air hose |
| Rated Working Pressure | 16 bar |
| Burst Pressure | 60 bar |
| Air Coupler | Standard steel self-locking quick coupler |
| Housing Material | Engineering-grade ABS |
| Retraction Method | Automatic spring rewind |
| Typical Applications | Workshop air supply, machinery maintenance, assembly stations, garages, and production lines |
| Selection Checks | Confirm hose size, hose length, coupler standard, inlet connection, pressure, and mounting position before ordering |

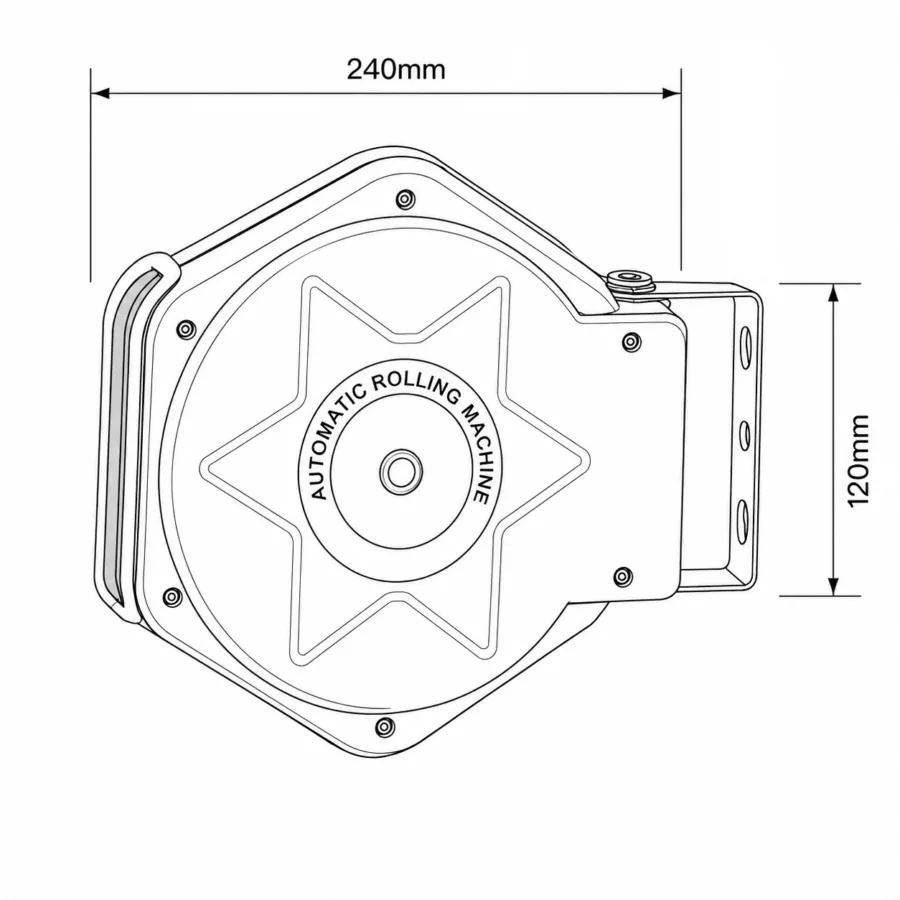

Model Selection and Dimensions
| Model | Meter |
| 8×5 | 9M |
| 9M(PU braided air hose) |
Product Features
Compact Automatic Rewind Design
The mini air hose reel automatically retracts the hose after use, helping keep compressed air lines organized and reducing loose hose around machinery, benches, and work areas.
9 Meter PU Braided Air Hose
The reel is equipped with a 9 m PU braided air hose in an 8 × 5 mm size, providing useful reach for workshop cleaning, pneumatic tools, maintenance, and production workstations.
16 Bar Rated Working Pressure
The hose reel is designed for compressed air systems with a rated working pressure of 16 bar, making it suitable for a wide range of industrial and workshop pneumatic applications.
Engineering-Grade ABS Housing
The compact housing is made from engineering-grade ABS, providing a lightweight protective enclosure for the internal hose and retracting mechanism.
Steel Self-Locking Quick Coupler
The outlet uses a standard steel self-locking quick coupler for convenient connection and disconnection of pneumatic tools and air equipment.
Space-Saving Hose Management
The enclosed reel stores the hose neatly when it is not in use, helping reduce tangling, improve workstation organization, and make compressed air access more convenient.
Applications
Workshop Air Supply
Provides an organized compressed air connection for air blow guns, inflation tools, small pneumatic tools, and general workshop equipment.
Machinery Maintenance
Suitable for repair stations and maintenance areas that require a retractable air hose for cleaning, inspection, and pneumatic servicing.
Assembly Workstations
Can be installed near assembly benches where operators need convenient compressed air access without leaving loose hose across the floor.
Production Lines
Used for localized air supply in manufacturing, packaging, component assembly, inspection, and equipment cleaning areas.
Garage and Service Areas
Suitable for vehicle service bays, tire maintenance, equipment repair, dust removal, and general compressed air applications.
Why Choose HOMIPNEU
HOMIPNEU supplies retractable air hose reels, pneumatic air hoses, air blow guns, quick couplers, pneumatic fittings, solenoid valves, cylinders, and air preparation components for industrial compressed air systems.
We help customers confirm the required hose size, hose length, working pressure, quick coupler standard, inlet connection, mounting position, packaging, and order quantity.
Bulk quantities, private-label packaging, export-ready cartons, and product selection support are available for distributors, machinery manufacturers, and industrial buyers.
FAQ
What is the mini retractable air hose reel used for?
It is used to provide organized compressed air access for workshops, machinery maintenance, assembly stations, production lines, garages, and pneumatic tools.
How long is the air hose?
The reel is equipped with a 9 m air hose.
What is the hose size?
The listed hose size is 8 × 5 mm.
What material is the hose made from?
The listed configuration uses a PU braided air hose.
What is the rated working pressure?
The rated working pressure is 16 bar.
What is the burst pressure?
The listed burst pressure is 60 bar.
What material is used for the housing?
The protective housing is made from engineering-grade ABS.
What type of air coupler is supplied?
The reel uses a standard steel self-locking quick coupler. The required coupler standard should be confirmed before ordering.
Does the hose retract automatically?
Yes. The internal rewind mechanism retracts and stores the hose after use.
What should be confirmed before ordering?
Confirm the hose size, hose length, working pressure, coupler standard, inlet connection, installation position, quantity, and packaging requirements.
Customization & Supply Support
HOMIPNEU supports hose length selection, coupler configuration, inlet connection matching, product labeling, packaging design, and bulk production for retractable air hose reels. Customers can provide the required hose diameter, hose length, pressure, fitting standard, mounting method, quantity, and application details for accurate selection and quotation.
