Specifications
| Parameter | Specification |
|---|---|
| Product Name | Automatic Retractable Air Hose Reel |
| Product Type | Automatic spring rewind hose reel |
| Rated Working Pressure | 16 bar |
| Burst Pressure | 60 bar |
| Housing Material | Engineering-grade ABS |
| Air Coupler | Standard steel self-locking quick coupler |
| Available Hose Sizes | 8 × 5 mm, 10 × 6.5 mm, 12 × 8 mm |
| Available Hose Lengths | 10 m, 12 m, 15 m, 20 m, 25 m and 30 m options |
| Retraction Method | Automatic spring rewind |
| Typical Applications | Workshops, machinery maintenance, production lines, garages, and assembly stations |
| Selection Checks | Confirm hose size, hose length, working pressure, coupler standard, inlet connection, and mounting position before ordering |

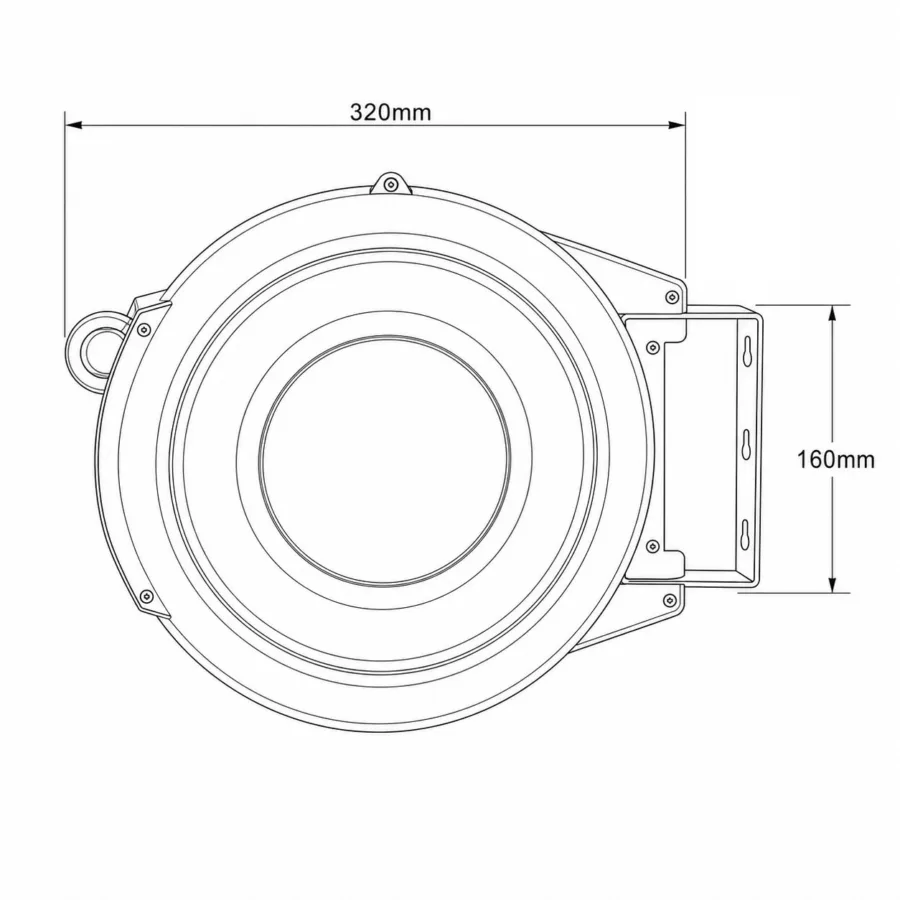

Model Selection and Dimensions
| Hose Size | Available Lengths |
| 8 × 5 mm | 10 m, 12 m, 15 m, 20 m, 25 m |
| 10 × 6.5 mm | 10 m, 12 m, 15 m, 20 m, 30 m(Customized) |
| 12 × 8 mm | 10 m, 12 m, 15 m, 20 m, 25 m(Customized) |
Product Features
Automatic Spring Rewind
The internal spring mechanism retracts the compressed air hose automatically after use, helping operators store the hose quickly and keep work areas organized.
Multiple Hose Size Options
The series supports 8 × 5 mm, 10 × 6.5 mm, and 12 × 8 mm hose sizes for different airflow requirements, pneumatic tools, and working distances.
Flexible Length Selection
Available hose lengths range from 10 m to 30 m, making it easier to select the correct reach for workshops, production lines, garages, and maintenance areas.
16 Bar Rated Working Pressure
The hose reel is designed for compressed air systems with a rated working pressure of 16 bar and a listed burst pressure of 60 bar.
Engineering-Grade ABS Housing
The enclosed ABS housing protects the hose and internal rewind mechanism while keeping the reel lightweight and suitable for wall or workstation installation.
Steel Self-Locking Coupler
The standard steel self-locking quick coupler provides convenient connection and disconnection for air blow guns, pneumatic tools, and other compressed air equipment.
Applications
Workshop Air Supply
Provides organized compressed air access for air blow guns, pneumatic tools, inflation equipment, and general workshop cleaning.
Machinery Maintenance
Suitable for repair and maintenance areas that require a retractable hose for equipment cleaning, inspection, and pneumatic servicing.
Production Lines
Can be installed near manufacturing, packaging, assembly, and inspection stations where operators need convenient compressed air access.
Garage and Service Areas
Used for vehicle maintenance, tire servicing, equipment repair, dust removal, and general compressed air work.
Assembly Workstations
Keeps hoses stored away from workbenches and walkways while providing sufficient reach for pneumatic assembly tools.
Why Choose HOMIPNEU
HOMIPNEU supplies automatic air hose reels, pneumatic air hoses, quick couplers, air blow guns, pneumatic fittings, valves, cylinders, and air preparation components for industrial compressed air systems.
We help customers confirm hose diameter, hose length, working pressure, coupler standard, inlet connection, mounting position, packaging, and order quantity before production or shipment.
Bulk quantities, private-label packaging, export-ready cartons, and product selection support are available for distributors, machinery manufacturers, and industrial buyers.
FAQ
What is an automatic retractable air hose reel used for?
It provides organized compressed air access for workshops, production lines, machinery maintenance, garages, assembly stations, and pneumatic tools.
What hose sizes are available?
The listed hose sizes are 8 × 5 mm, 10 × 6.5 mm, and 12 × 8 mm.
What hose lengths can be selected?
Available lengths include 10 m, 12 m, 15 m, 20 m, and 25 m, with a 30 m customized option for the 10 × 6.5 mm model.
What is the rated working pressure?
The rated working pressure is 16 bar.
What is the burst pressure?
The listed burst pressure is 60 bar.
What material is used for the housing?
The protective housing is made from engineering-grade ABS.
Does the hose rewind automatically?
Yes. The internal spring mechanism retracts and stores the hose automatically after use.
What type of quick coupler is supplied?
The reel uses a standard steel self-locking quick coupler. The required regional coupler standard should be confirmed before ordering.
Where can the hose reel be installed?
It can be installed near walls, workstations, machinery, service bays, production lines, and other suitable compressed air access points.
What should be confirmed before ordering?
Confirm the hose size, hose length, pressure requirement, quick coupler standard, inlet connection, mounting position, quantity, and packaging requirements.
Customization & Supply Support
HOMIPNEU supports customized hose lengths, hose diameter selection, coupler configuration, inlet connection matching, product labeling, packaging design, and bulk production. Customers can provide the required hose size, length, working pressure, fitting standard, mounting method, quantity, and application details for accurate selection and quotation.
