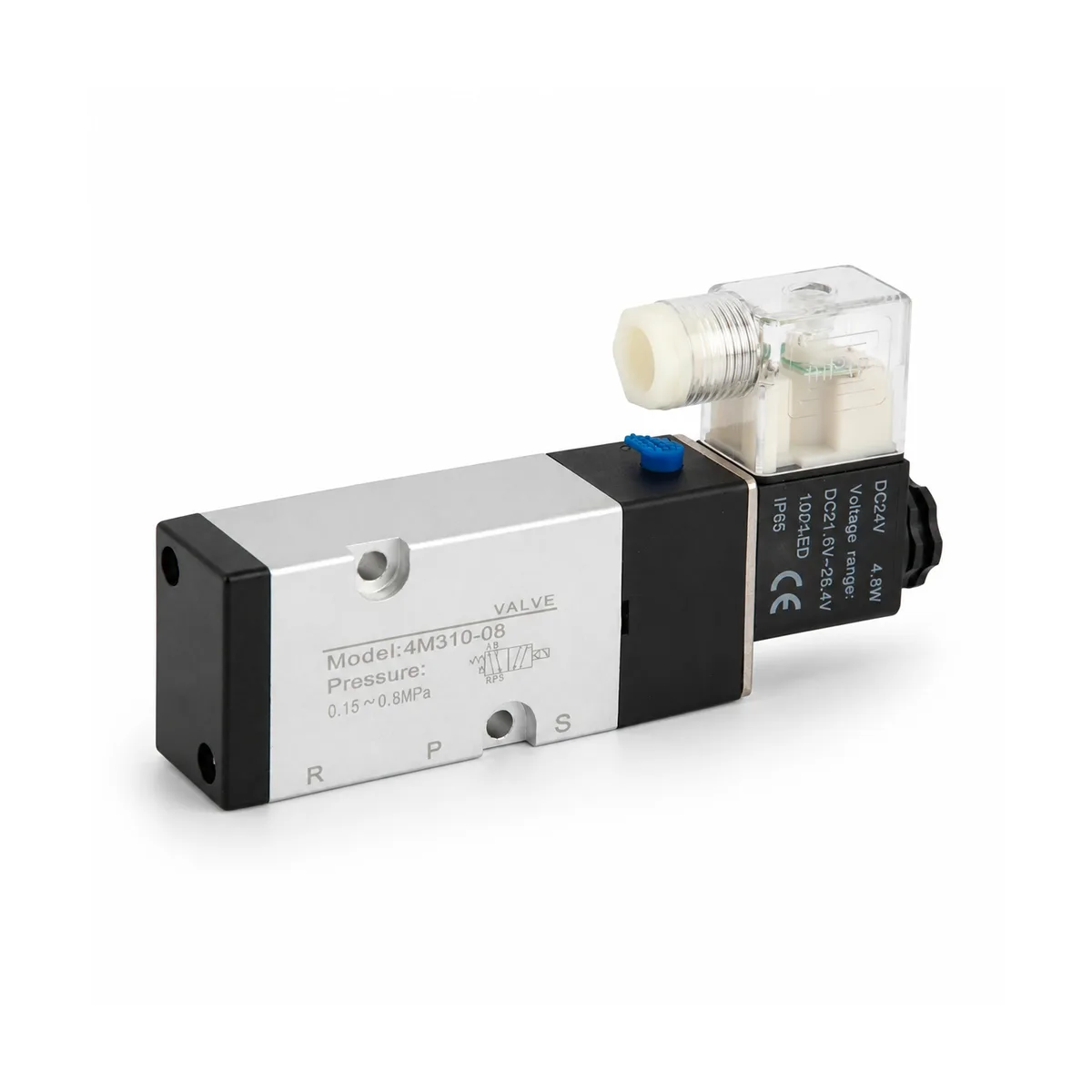

Specifications
| Item | Specification |
|---|---|
| Model | 4M310-08 |
| Valve Type | NAMUR Solenoid Valve |
| Function | 5/2 Way |
| Control Type | Single Solenoid |
| Series | 4M300 Series |
| Port Size | 1/4″ |
| Working Medium | Filtered Compressed Air |
| Operation Type | Internal Pilot Type |
| Body Material | Aluminum Alloy |
| Working Pressure | 0.15–0.8MPa |
| Proof Pressure | 1.2MPa |
| Working Temperature | -20°C to 70°C |
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V |
| Power Connection | DIN Connector / Terminal Type |
| Lubrication | Not required |
| Mounting Type | NAMUR Interface Mounting |
| Compatible Series | Compatible with Airtac 4M300 Series |
| Main Application | Pneumatic actuator, rotary actuator, cylinder and automated valve control |
Product Features

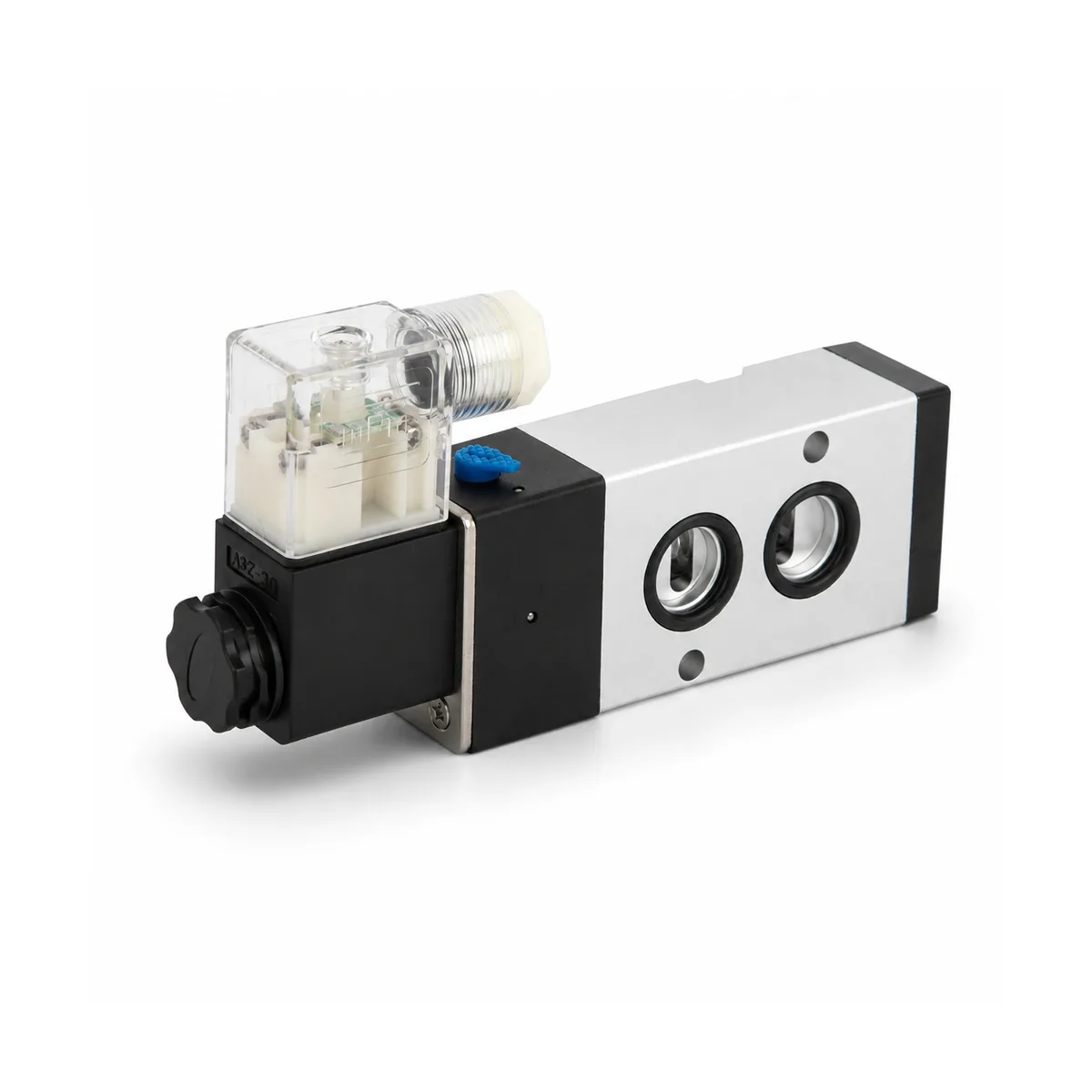

NAMUR Interface for Actuator Mounting
The 4M310-08 solenoid valve is designed with a NAMUR mounting interface, allowing direct installation on compatible pneumatic actuators. This helps reduce external piping, simplify the air circuit, and save installation space.
5/2 Way Directional Air Control
The 5-port, 2-position structure makes the 4M310-08 suitable for controlling double-acting pneumatic actuators, rotary actuators, and cylinders in industrial automation systems.
Single Solenoid Control
The single solenoid design provides simple and reliable switching. When energized, the valve changes position; when de-energized, it returns to its normal state, making it suitable for repeated actuator operation.
1/4 Port for Stable Airflow
The 1/4 port size provides practical airflow capacity for medium pneumatic actuator systems, automated valve control, and general industrial air circuits.
Internal Pilot Structure
The internal pilot design supports sensitive response and stable operation under normal compressed air conditions. It helps improve switching reliability during continuous equipment operation.
Sliding Spool Design
The spool structure provides smooth movement, good sealing performance, and low friction, helping the valve maintain stable performance over long-term use.
No Extra Lubrication Required
The valve can operate in clean compressed air systems without additional oil lubrication, reducing maintenance work and keeping the pneumatic system cleaner.
Ideal Replacement for Airtac 4M300 Series Applications
The 4M310-08 can be selected for pneumatic actuator systems that require a NAMUR type 5/2 way solenoid valve compatible with Airtac 4M300 Series installations.
Applications
The 4M310-08 NAMUR solenoid valve is widely used in pneumatic actuator control, automated ball valves, butterfly valves, rotary actuators, double-acting cylinders, packaging machinery, process automation systems, industrial control panels, and factory automation equipment.
It is especially suitable for applications where the solenoid valve needs to be mounted directly onto a pneumatic actuator through a NAMUR interface, helping reduce tubing, simplify installation, and improve the overall stability of the pneumatic control system.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves for automation equipment, actuator control systems, valve automation projects, and industrial compressed air circuits. The 4M310-08 NAMUR solenoid valve is designed for stable switching, easy installation, and practical compatibility with common pneumatic actuator mounting requirements.
We support voltage selection, model matching, batch supply, labeling, packaging, and customized requirements for OEM machinery builders, valve automation suppliers, pneumatic distributors, and industrial equipment manufacturers.
FAQ
What is the 4M310-08 solenoid valve used for?
The 4M310-08 is mainly used to control pneumatic actuators, rotary actuators, double-acting cylinders, and automated valve systems.
Is 4M310-08 a NAMUR solenoid valve?
Yes. The 4M310-08 is a NAMUR type pneumatic solenoid valve designed for direct actuator mounting.
Is the 4M310-08 a 5/2 way valve?
Yes. It is a 5-port, 2-position valve suitable for controlling double-acting pneumatic actuators and cylinders.
What is the port size of 4M310-08?
The standard port size is 1/4″, suitable for many industrial pneumatic actuator control systems.
Can 4M310-08 be mounted directly on a pneumatic actuator?
Yes. The NAMUR interface allows direct mounting on compatible pneumatic actuators, reducing external tubing and simplifying installation.
Is this valve interchangeable with Airtac 4M300 Series?
The 4M310-08 is designed for NAMUR pneumatic valve applications and can be selected for systems using Airtac 4M300 Series style valves.
Does the 4M310-08 need oil lubrication?
No. In a clean compressed air system, additional oil lubrication is generally not required.
OEM & ODM Support
HOMIPNEU provides OEM & ODM support for NAMUR solenoid valves, including voltage options, coil selection, labeling, packaging, and batch supply for actuator manufacturers, valve automation suppliers, pneumatic distributors, and industrial equipment builders.
