Specifications
| Parameter | 22-06 | 22-08 | 23-06 | 23-08 |
|---|---|---|---|---|
| Product Series | YX Series | YX Series | YX Series | YX Series |
| Valve Function | Two position two way | Two position two way | Two position three way | Two position three way |
| Working Medium | Air, water, oil, steam | Air, water, oil, steam | Air | Air |
| Joint Pipe Bore | 1/8″ | 1/4″ | 1/8″ | 1/4″ |
| Aperture of Flow Rate | 1.6 mm | 2.4 / 3.2 / 4.0 mm | 1.6 mm | Confirm before ordering |
| CV Value | 0.10 | 0.21 / 0.33 / 0.43 | 0.10 | Confirm before ordering |
| Working Pressure Range | 0–15 | 0–10 / 0–7 / 0–5 | 0–9 | Confirm before ordering |
| Voltage Range | ±10% | ±10% | ±10% | ±10% |
| Oil Seal Material | NBR or VITON | NBR or VITON | NBR or VITON | NBR or VITON |
| Standard Voltage | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380V |
| Selection Checks | Confirm function, port size, medium, voltage, pressure, seal material, and aperture before ordering | Confirm function, port size, medium, voltage, pressure, seal material, and aperture before ordering | Confirm function, port size, medium, voltage, pressure, seal material, and aperture before ordering | Confirm function, port size, medium, voltage, pressure, seal material, and aperture before ordering |
Model Code Guide
| Code | Meaning |
| 22 | Two position two way |
| 23 | Two position three way |
| 06 | 1/8 inch joint pipe bore |
| 08 | 1/4 inch joint pipe bore |
| DC12V | 12V DC coil voltage |
| DC24V | 24V DC coil voltage |
| AC24V | 24V AC 50/60Hz coil voltage |
| AC36V | 36V AC 50/60Hz coil voltage |
| AC110V | 110V AC 50/60Hz coil voltage |
| AC220V | 220V AC 50/60Hz coil voltage |
| AC380V | 380V AC 50/60Hz coil voltage |
Example:
23-06 AC220V means YX Series, two position three way, 1/8 inch port, AC220V coil voltage.
Product Features
Compact Mini Solenoid Valve Design
The YX Series Mini Solenoid Valve is designed for compact fluid and pneumatic control applications. Its small body size makes it suitable for limited installation space, small machines, control panels, testing equipment, and OEM devices.
22 Series for 2/2 Way On-Off Control

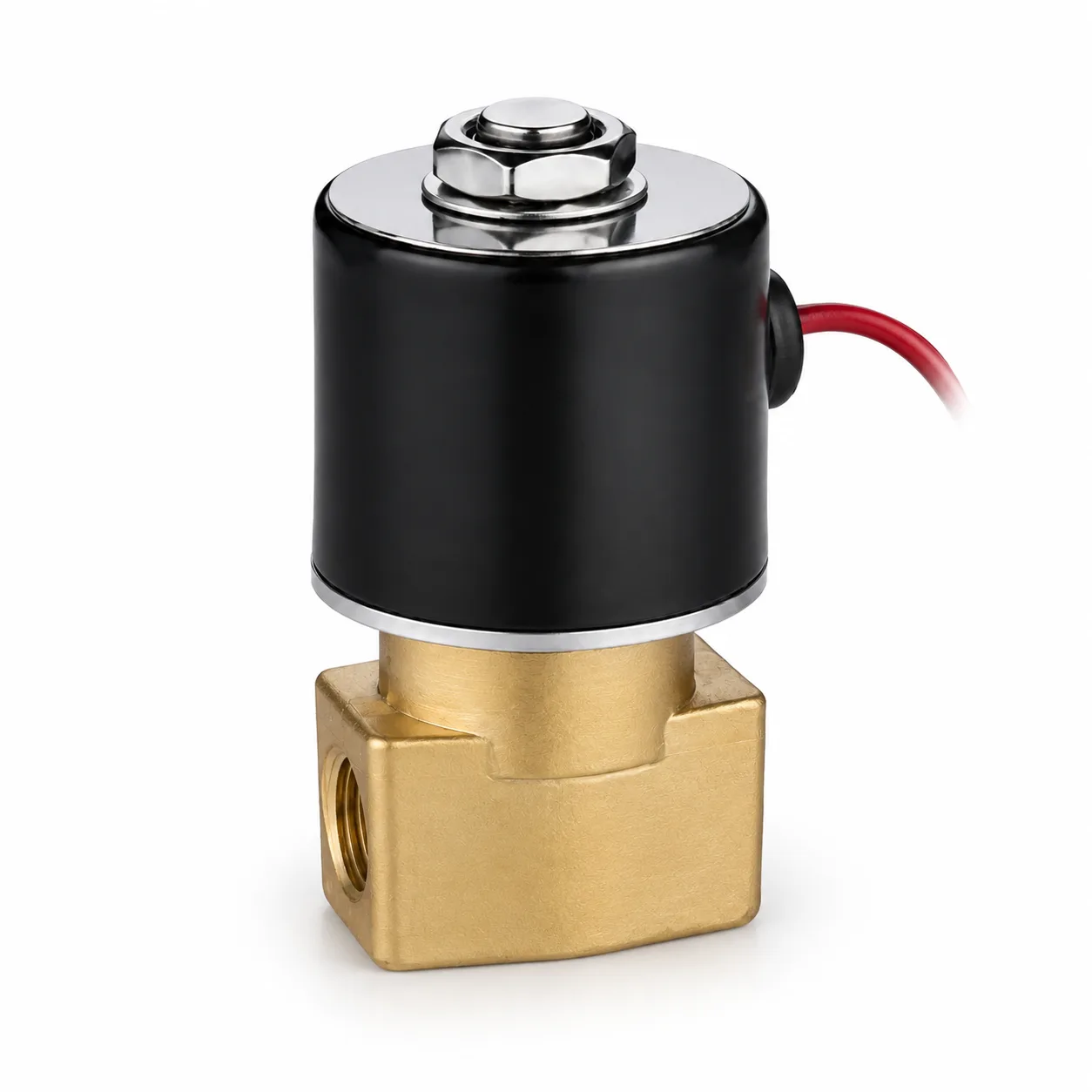

YX 22-06 and 22-08 models are two position two way solenoid valves. They are suitable for basic on-off control of air, water, oil, steam, and compatible neutral media when the pressure, temperature, seal material, and aperture match the system.
23 Series for 3/2 Way Air Control

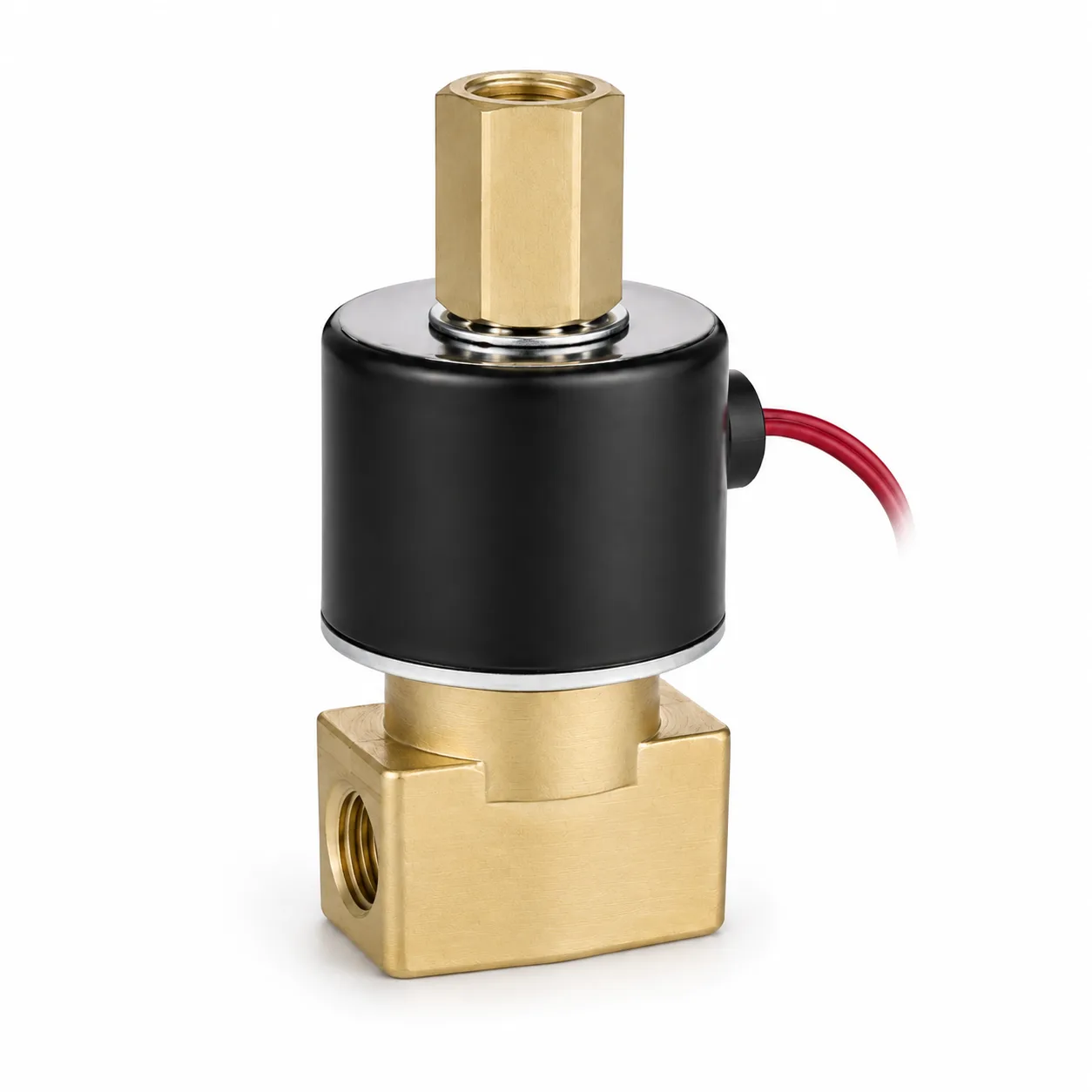

YX 23-06 and 23-08 models are two position three way solenoid valves. They are mainly used for air control circuits where one inlet, one outlet, and one exhaust path are required.
1/8 Inch and 1/4 Inch Port Options
The YX Series includes 06 and 08 port options. The 06 code corresponds to 1/8 inch pipe bore, while the 08 code corresponds to 1/4 inch pipe bore. Customers should confirm thread standard before ordering.
Multiple Coil Voltage Options
Standard voltage options include DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, and AC380V. Voltage tolerance is ±10%, and the correct coil voltage should be confirmed before installation.
NBR or VITON Seal Options
The oil seal material can be NBR or VITON. NBR is suitable for many general air and fluid applications, while VITON can be selected for applications requiring higher temperature or chemical resistance.
Applications
Air Control Systems
Used in small pneumatic circuits, air switching devices, testing equipment, control panels, compact automation systems, and pneumatic signal control.
Water and Fluid Control
YX 22 Series models can be used for water and compatible fluid on-off control when the pressure range, seal material, aperture, and working medium match the system requirements.
Oil and Steam Control
The 22 Series can be selected for oil or steam applications after confirming seal material, working pressure, temperature, valve configuration, and installation environment.
Small Automation Equipment
Suitable for compact machines, dispensing equipment, cleaning systems, testing devices, laboratory equipment, and OEM automation projects.
Maintenance and Replacement Projects
Suitable for replacement, spare parts stock, distributor supply, and machine maintenance when the original function, port size, voltage, pressure range, and medium are confirmed.
Why Choose HOMIPNEU
HOMIPNEU supplies solenoid valves, mini solenoid valves, pneumatic valves, directional control valves, pneumatic fittings, cylinders, air hoses, air preparation units, pneumatic process valves, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, aperture, working medium, coil voltage, seal material, pressure range, flow demand, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, export packaging, private label support, and stable sourcing for mini solenoid valves and pneumatic control components.
FAQ
What models are included in the YX Series Mini Solenoid Valve?
The YX Series includes 22-06, 22-08, 23-06, and 23-08 models. The 22 models are two position two way valves, and the 23 models are two position three way valves.
What is the difference between 22 and 23 models?
The 22 model is a 2/2 way valve for on-off control. The 23 model is a 3/2 way valve for air control circuits that need supply, output, and exhaust paths.
What is the difference between 06 and 08?
The 06 code means 1/8 inch pipe bore, while the 08 code means 1/4 inch pipe bore. Customers should also confirm the actual thread standard before ordering.
Can the YX Series be used for water, oil, and steam?
YX 22 Series models can be used for air, water, oil, and steam when the pressure, temperature, seal material, and aperture match the working conditions. YX 23 Series models are mainly used for air.
What voltage options are available?
Standard voltage options include DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, and AC380V. The voltage tolerance is ±10%.
What seal material is available?
The seal material can be NBR or VITON. The correct seal should be selected according to the working medium, temperature, and application environment.
What should be confirmed before ordering?
Please confirm model, valve function, port size, thread type, aperture, working medium, coil voltage, pressure range, seal material, installation space, and order quantity.
Does HOMIPNEU support OEM or distributor orders?
Yes. HOMIPNEU supports OEM and ODM supply, bulk orders, export packaging, private label requirements, and model confirmation for YX Series mini solenoid valves and related pneumatic components.
OEM & ODM Support
HOMIPNEU provides OEM and ODM support for mini solenoid valves, 2/2 way solenoid valves, 3/2 way air solenoid valves, pneumatic directional valves, pneumatic fittings, cylinders, air hoses, and compressed air control components. Customers can provide the model, port size, medium, voltage, pressure range, seal material, packaging requirement, and expected quantity for accurate selection and supply.
