Specifications
| Model | 6213-02 | 6213-03 | 6213-04 | 6213-04 | 6213-06 | 6213-06 | 6213-08 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Inside Nominal Diameter(mm) | 4 | 10 | 14 | 25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Inside Pipe Screw Thread | G1/8″ | G3/8″ | G1/2″ | G1/2″ | G3/4″ | G3/4″ | G1″ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Pressure(Kgf/cm2) | 0~6 | 0.3~10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment Temperature(°C) | -20~+55 | -10~+55 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature Range(°C) | 0~+90 | -10~+90 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| KV Value(m3/h) | 11 | 2 | 3.6 | 8.3 | 8.3 | 11 | 11 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | AC(VA) | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | DC(W) | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Change Frequency (Hz) | ≥1 | ≥0.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Voltage | AC:50Hz 24V 36V 110V 220V DC:24V 12V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

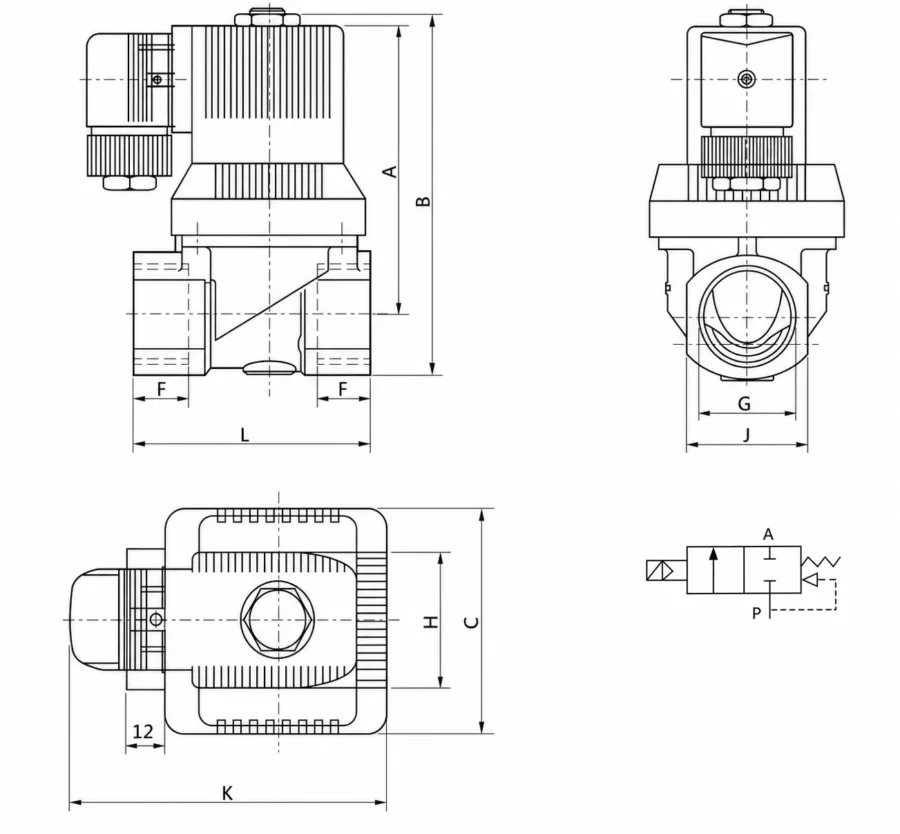

Model Selection and Dimensions
| Model | G | C | F | L | J | A | B | H | K |
| 6213-02 | G1/4″ | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-03 | G3/8″ | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-04 | G1/2″ | 38 | 14 | 50 | 26 | 71 | 85 | 35 | 71 |
| 6213-04 | G1/2″ | 45 | 16 | 58 | 31 | 82 | 96 | 35 | 80 |
| 6213-06 | G3/4″ | 45 | 16 | 58 | 31 | 82 | 96 | 35 | 90 |
| 6213-06 | G3/4″ | 65 | 18 | 82 | 41 | 96 | 117 | 35 | 90 |
| 6213-08 | G1″ | 65 | 18 | 82 | 41 | 96 | 117 | 35 | 90 |
Product Features
2/2 Way On-Off Fluid Control
The 6213 Series is designed for automatic on-off control in water, air, and compatible neutral fluid systems. Its 2 port 2 position structure opens or closes the flow path by electrical signal.
Servo-Assisted Diaphragm Structure
The servo-assisted diaphragm design supports larger flow control in a compact valve body. For stable operation, the working pressure and minimum pressure differential should be confirmed before use.
Normally Closed Control Function
The valve is normally closed when the coil is not energized and opens when power is applied. This function is suitable for systems where the default state should keep the pipeline closed.
Multiple Port Sizes for Different Pipelines
The 6213 Series includes several port size options, including G1/8, G3/8, G1/2, G3/4, and G1. Customers can select the correct model according to pipeline size, flow demand, pressure range, and installation space.
AC and DC Voltage Options
The series supports common AC and DC coil voltage options, including AC 24V, 36V, 110V, 220V and DC 12V, 24V. Voltage must be confirmed before ordering to match the control system.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, and OEM supply for solenoid valve distributors, fluid control equipment builders, and industrial automation customers.
Applications
Water Control Systems
Used for automatic on-off control in water supply equipment, washing systems, cooling circuits, cleaning machines, and general water control pipelines.
Industrial Fluid Control Equipment
Suitable for compatible neutral fluid lines, process equipment, fluid control panels, machine tools, and industrial automation systems.
Compressed Air Systems
Applied in compatible air control circuits where the pressure range, flow demand, and valve structure match the operating conditions.
OEM Machinery
Used in OEM machines, equipment panels, water treatment equipment, filling systems, packaging machines, and maintenance replacement projects.
Distributor Stock and Replacement Projects
Suitable for solenoid valve distributors, spare parts programs, and customers who need different port size options for industrial fluid control.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, fluid control valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, thread type, voltage, medium, pressure range, temperature range, flow demand, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for solenoid valve and pneumatic component projects.
FAQ
What is the 6213 Series solenoid valve used for?
The 6213 Series is used for 2/2 way on-off control of water, air, and compatible neutral fluids in industrial equipment, fluid control systems, water lines, and OEM machinery.
Is the 6213 Series a normally closed valve?
The 6213 Series is commonly used as a normally closed valve. It stays closed when the coil is not energized and opens when power is applied. Please confirm the required function before ordering.
What does 2/2 way solenoid valve mean?
A 2/2 way solenoid valve has two ports and two positions. It controls whether the fluid path is open or closed.
Is the 6213 Series direct acting or diaphragm type?
The 6213 Series uses a servo-assisted diaphragm structure. This type is suitable for larger flow control, but the pressure range and pressure differential should be checked before installation.
Can the 6213 Series be used for water?
Yes. It can be used for water control when the pressure, temperature, port size, thread type, voltage, and installation direction match the application.
What should be confirmed before ordering?
Please confirm the model, port size, thread type, voltage, working medium, pressure range, operating temperature, flow demand, installation direction, and minimum pressure differential.
Does HOMIPNEU support OEM or distributor orders?
Yes. HOMIPNEU supports OEM and ODM orders, bulk supply, private label packaging, export cartons, and model confirmation for solenoid valves and related pneumatic components.
