Specifications
| Model | 5404-04 | 5404-06 | 5404-08 | ||||||||||||||||||||||||||||
| Working Medium | Air, Water, Oil | ||||||||||||||||||||||||||||||
| Motion Pattern | Guide Type | ||||||||||||||||||||||||||||||
| Type | Normal Close Type | ||||||||||||||||||||||||||||||
| Aperture of Flow Rate(mm) | 12 | 25 | 25 | ||||||||||||||||||||||||||||
| KV Value | 2 | 5 | 10 | ||||||||||||||||||||||||||||
| Joint Pipe Bore | 1/2″ | 3/4″ | 1″ | ||||||||||||||||||||||||||||
| Working-pressure(kgf/cm2) | Gas: 1~50 Liquid: 1~50 | Gas: 1~30 Liquid: 1~25 | Gas: 1~30 Liquid: 1~25 | ||||||||||||||||||||||||||||
| Max. Pressure Resistance(kgf/cm2) | 75 | 40 | |||||||||||||||||||||||||||||
| Operating Temperature Range(°C) | -5~150 | ||||||||||||||||||||||||||||||
| Voltage Range | ±10% | ||||||||||||||||||||||||||||||
| Protect Class | IP65 | ||||||||||||||||||||||||||||||
| Power Consumption | AC: 5.5VA DC: 9W | ||||||||||||||||||||||||||||||
| Insulation | F Class | ||||||||||||||||||||||||||||||
| Material of Body | Brass | ||||||||||||||||||||||||||||||
| Material of Oil Seal | PTFE | ||||||||||||||||||||||||||||||

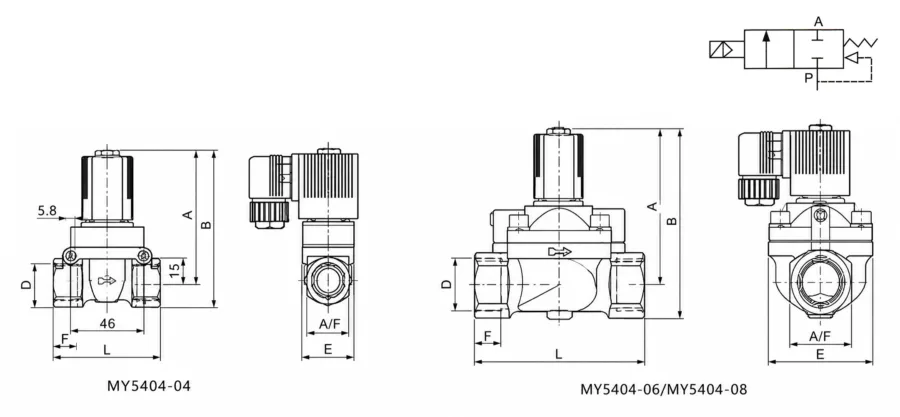

Model Selection and Dimensions
| Model | Inner hole(mm) | Connection Port | A | B | F | E | L | A/F |
| 5404-04 | 12 | 1/2″ | 84 | 98 | 13 | 32 | 63.5 | 28 |
| 5404-04B | 15 | 1/2″ | 75 | 89 | 13 | 32 | 63.5 | 28 |
| 5404-06 | 20 | 3/4″ | 99.5 | 125 | 16 | 60 | 91 | 41 |
| 5404-08 | 25 | 1″ | 99.5 | 125 | 16 | 60 | 91 | 41 |
Product Features
High Pressure Fluid Control
The 5404 Series is designed for automatic on-off control in higher pressure fluid and compressed air systems. It is suitable for applications where standard low-pressure solenoid valves cannot meet the required working pressure.
High Temperature Working Range
With an operating temperature range up to 150℃, the 5404 Series can be used in higher temperature air, water, and oil control applications when the selected medium, seal material, and installation conditions are suitable.
Normally Closed Safety Function
The valve stays closed when the coil is not energized and opens when power is applied. This normally closed function is widely used in systems where the default state should keep the pipeline shut.
Brass Body with PTFE Seal
The brass valve body and PTFE seal material support stable performance in compatible air, water, and oil applications. Medium compatibility, temperature, pressure, and chemical conditions should always be confirmed before ordering.
Multiple Port Sizes for Industrial Pipelines
The series includes 1/2″, 3/4″, and 1″ port options. Customers can select the correct size according to pipeline diameter, flow demand, working pressure, and installation space.
OEM and Distributor Supply Friendly
HOMIPNEU supports model confirmation, bulk orders, export packaging, and OEM supply for solenoid valve distributors, fluid control equipment builders, and industrial automation customers.
Applications
High Pressure Air Systems
Used for automatic on-off control in compressed air lines, high pressure pneumatic equipment, air supply systems, and industrial control panels.
Water Control Equipment
Suitable for water flow control in higher pressure water systems, washing equipment, cooling lines, cleaning machines, and fluid control pipelines.
Oil and Neutral Fluid Circuits
Applied in compatible oil and neutral fluid systems where pressure, temperature, viscosity, and seal compatibility match the valve specifications.
Industrial Fluid Control Systems
Used in fluid control panels, process equipment, machine tools, filling systems, testing equipment, and maintenance replacement projects.
OEM Machinery and Distributor Stock
Suitable for OEM equipment builders, solenoid valve distributors, spare parts programs, and customers who need high pressure solenoid valve options for different pipeline sizes.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, fluid control valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, thread type, voltage, medium, pressure range, temperature range, seal material, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for solenoid valve and pneumatic component projects.
FAQ
What is the 5404 Series solenoid valve used for?
The 5404 Series is used for high pressure on-off control of air, water, oil, and compatible neutral fluids in industrial equipment, fluid control systems, compressed air lines, and OEM machinery.
Is the 5404 Series a normally closed valve?
Yes. The 5404 Series on this page is a normally closed solenoid valve. It stays closed when the coil is not energized and opens when power is applied.
Can the 5404 Series be used for high temperature applications?
Yes. The valve is designed for applications up to 150℃ when the working medium, pressure, seal material, and installation conditions match the valve specifications.
Can the 5404 Series be used for oil?
Yes. It can be used for compatible oil applications, but oil viscosity, temperature, pressure, and seal compatibility must be confirmed before ordering.
What port sizes are available for the 5404 Series?
The 5404 Series includes 1/2″, 3/4″, and 1″ port options. The correct model should be selected according to pipeline size, flow demand, and pressure requirement.
What should be confirmed before ordering?
Please confirm the model, port size, thread type, voltage, working medium, pressure range, temperature range, seal material, flow demand, installation direction, and order quantity.
